8
The Start Record button becomes active to start the encoding process as soon as
the status shows a connected state.
3.2.2 ENCODER
Depending on the encoder type, a Low BitRate Encoder button and/or a High
BitRate Encoder button are available.

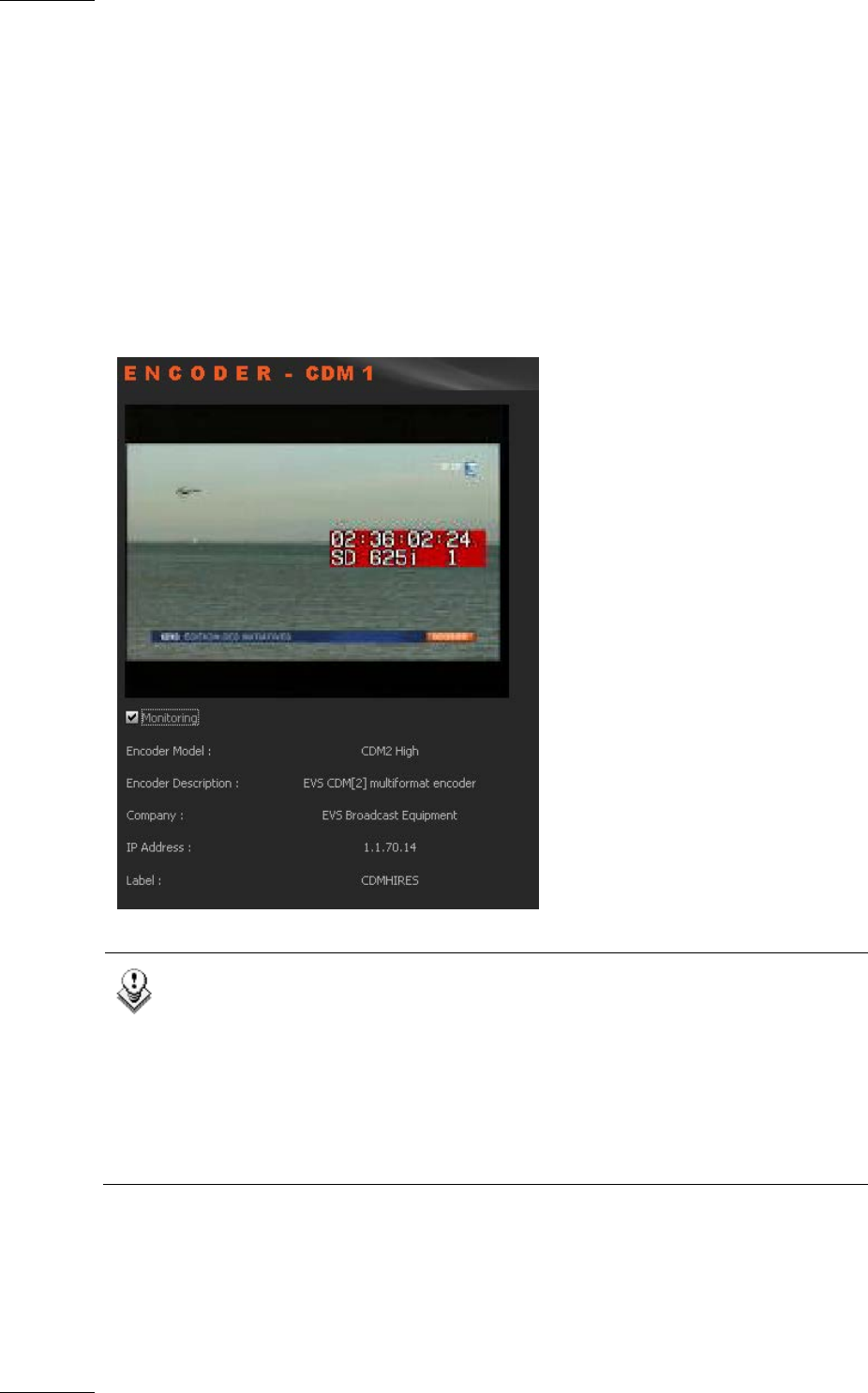

When you click one of the Encoder buttons for an encoder device, the following
Encoder window is displayed in the Work area, showing information about the
encoder and a monitoring output of the current encoding file.
Note
The video shown will only be at a rate
• defined by the GOP structure with the CDM[1] encoders (MPEG2 I
frames only will be displayed: about 2 per second) and
• defined by the setup of the system with the CDM[2] encoders.
With the CDM[2], only one monitoring at a time can be performed by a
user.
