Owner's manual

ProNotes Version 1.0 – User Manual
EVS Broadcast Equipment – January 2012
Issue 1.0.D
15
3.4.4 How to Add a Role
To add a custom role to the Select a Role screen, proceed as follows:
1.
In the Title bar, tap Edit.
The Select a Role screen enters into Edit Mode. You can now add new roles.
2.
In the Title bar, tap
+.

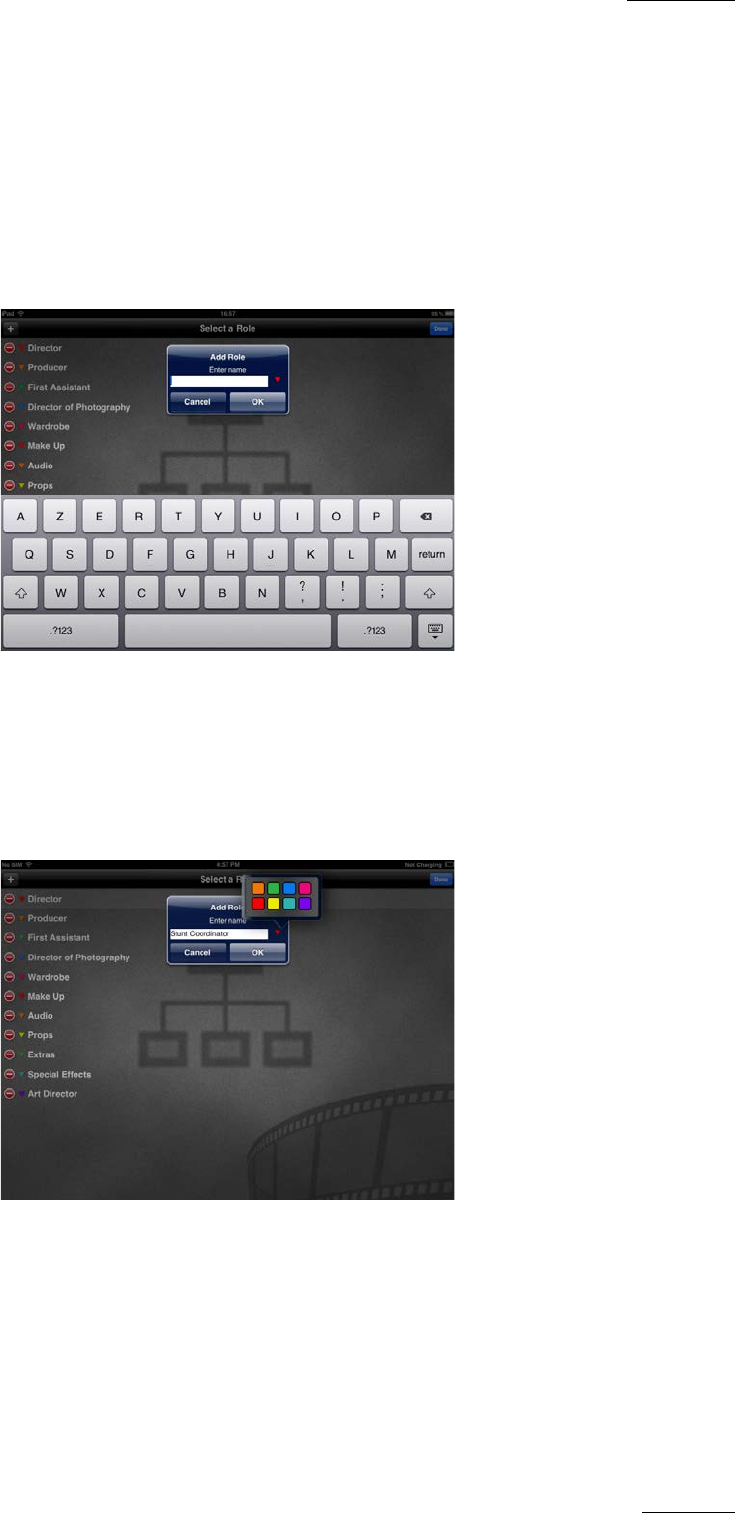

A pop-up appears.
3.
Enter a name for the new role using the onscreen keyboard.
4.
Tap the colored locator to the right to select a color.
A color picker appears. The color mapping is a recurring color sequence based
on the NLE profile chosen in the settings. For more information, see section 2.2.5
‘Color’ on page 5. If, by coincidence, 2 roles with the same color are chosen, you
can choose another color for a role to differentiate between the two.
5.
Tap a color to select it.
The locator takes on the color you have selected.
6.
Tap OK.
The new role is added below the existing roles.
7.
In the Title bar, tap Done to close the Edit Mode again.
