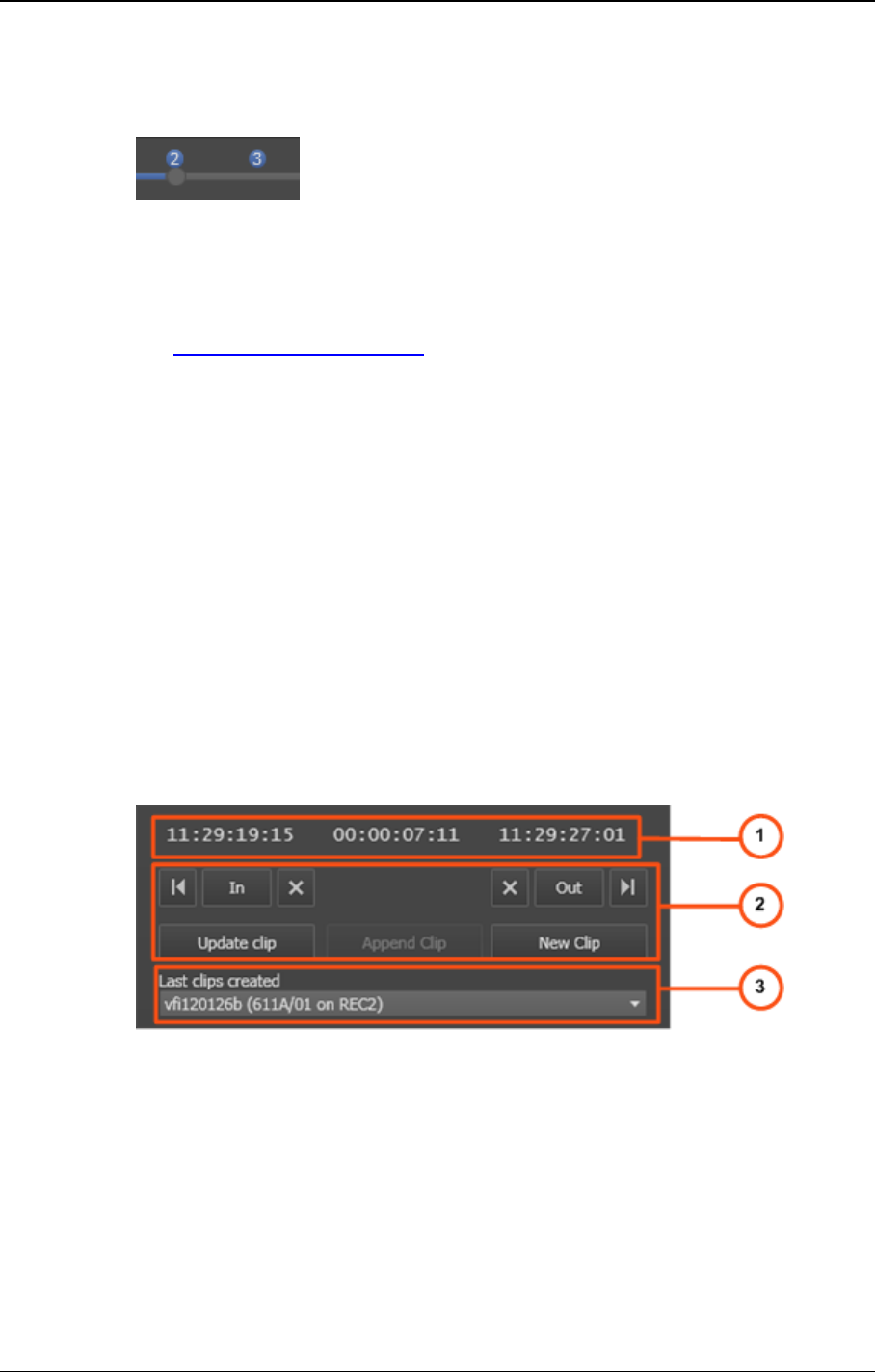

Each tag is represented by a numbered bullet if the different timecodes are not too close to
each other. If tags have the same timecode or if timecodes are too closed to be
distinguished on the panel, a single bullet will be displayed with the highest number of the
tags:
When the operator clicks a tag bullet in the Control Panel, the Tag Information window is
displayed.
When the operator double-clicks a tag bullet in the Control Panel, the system jumps to the
timecode associated to the tag.
See the Playlist Panel user manual for more information on tag management.
2.5. Clip Creation Pane
2.5.1. Introduction
The Clip Creation pane provides the functions to create clips.
2.5.2. Overview of the Clip Creation Pane
Illustration
The Clip Creation pane contains the areas highlighted on the screenshot below:
Area Description
The table below describes the various parts of the Clip Creation pane:
