2. Select Assign Player Destination.

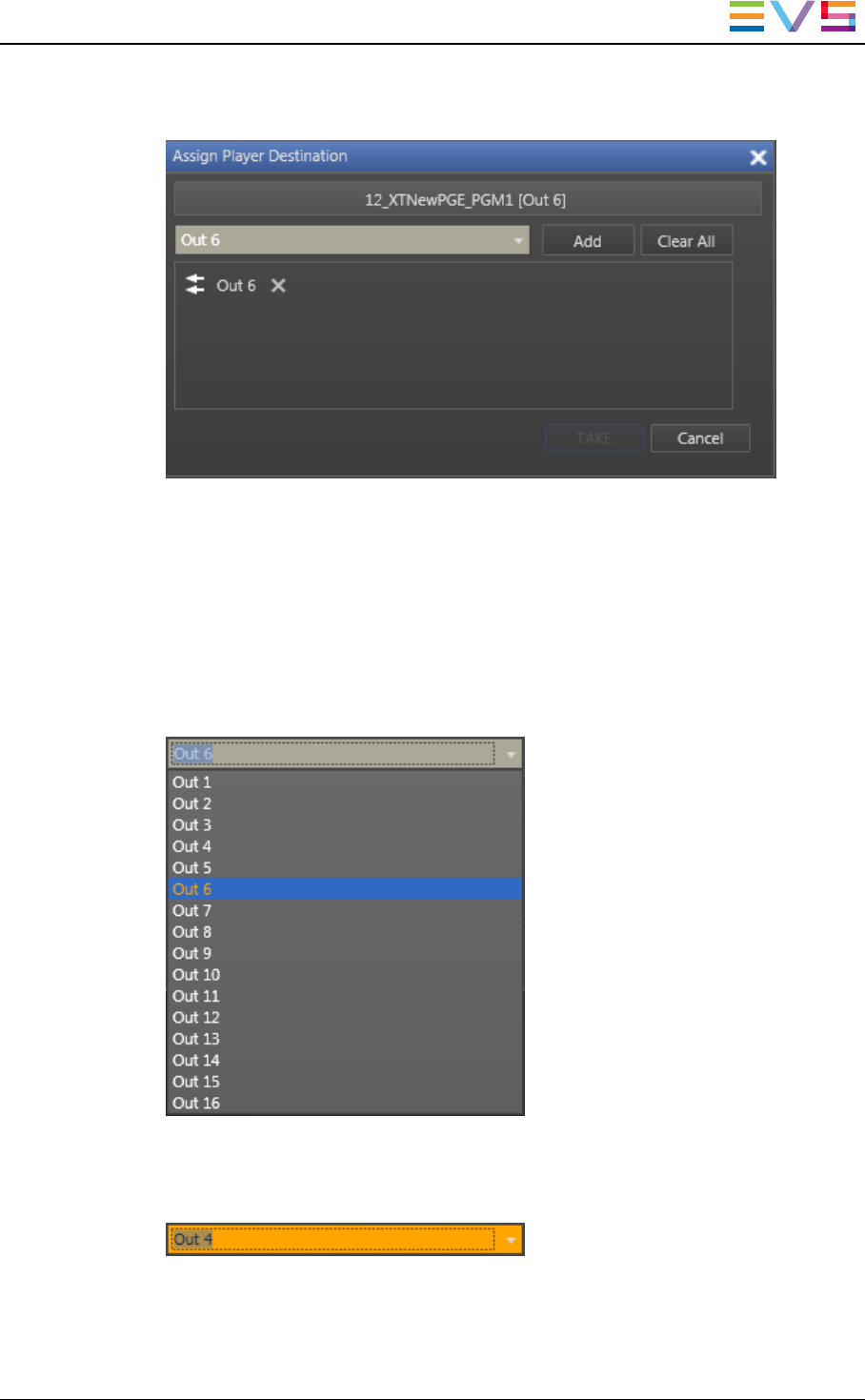

The Assign Player Destination window opens:
It lists all the router OUT ports already associated to the player channel.
3. To remove an association between a video router OUTport and the player channel,
click the X button next to the OUTport name.
4. To remove the association between all the video router OUTports and the player
channel, click the Clear All button.
5. To select an OUTport to associate to the player channel, click the arrow next to the
Router OUTPort field.
The list of all the router OUTports is displayed:
6. Select an OUTport.
The Router OUTPort field is highlighted to warn the users that the selection has
changed but has not been saved:
7. Click Add to confirm the selection.
The OUTport name is displayed in the list.
IPDirector- Version 6.2- User Manual- Channel Explorer
3. Managing Channels 29
