Issue 5.9.B IPDirector Version 5.9
–
User Manual
–
Part 3
–
Browsing
EVS Broadcast Equipment – January 2011
68
6.7 PLAYLIST IMPORTS
6.7.1 IMPORT OPTIONS
Importing a playlist can be performed from several locations in the Database
Explorer. This option is always available from
• the Playlist contextual menu of the Playlist tree view (Import…)
• the bin contextual menu of the Bin tree view (Import a Playlist…)
• the playlists list displayed in the grid (Import…)
6.7.2 HOW TO IMPORT A PLAYLIST
To import the playlist definition, proceed as follows:
1. Right-click one of the locations listed above.
A contextual menu is displayed.
2. According to the menu, select Import or Import a Playlist from the
contextual menu.
The Import Playlists window opens.
3. In this window, select the file that contains the playlist to import.
4. Click Open.

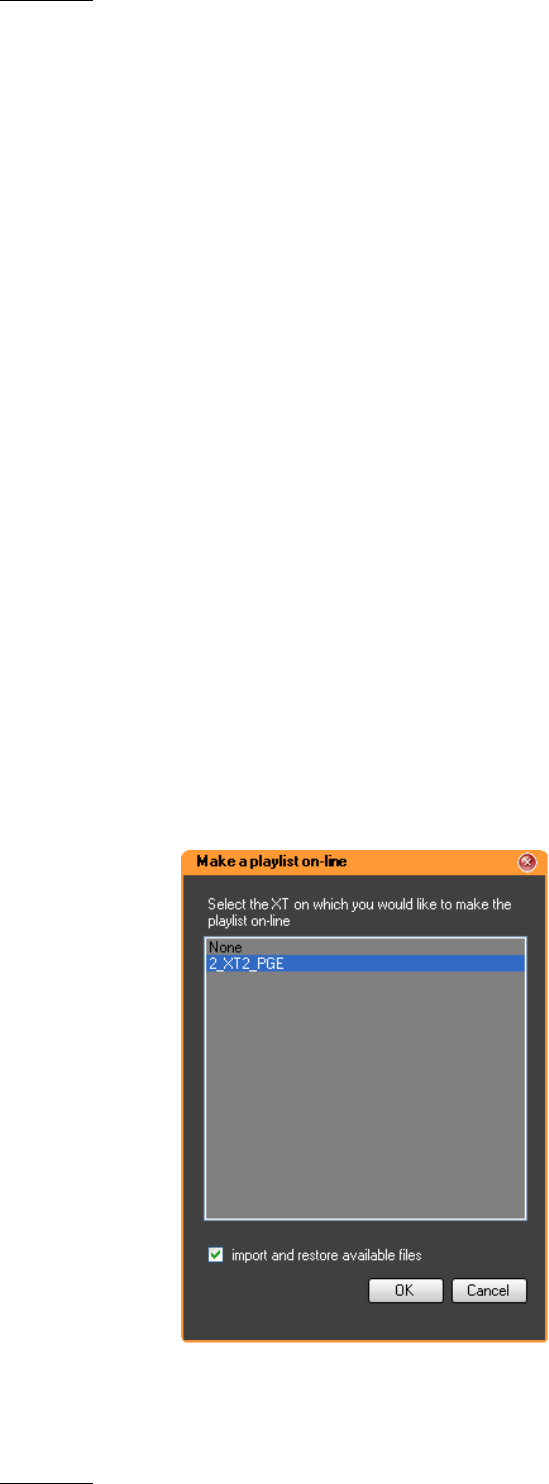

5. The Make a Playlist On-line window opens:
