Issue 5.9.B IPDirector Version 5.9
–
User Manual
–
Part 3
–
Browsing
EVS Broadcast Equipment – January 2011
48
4.10.5 HOW TO DELETE A DESTINATION TARGET
To delete a destination target from the list, proceed as follows:
1. Right-click the clip list in the Database Explorer grid.
The clip contextual menu is displayed.
2. Select Remove Archive Target from the Send To sub-menu.

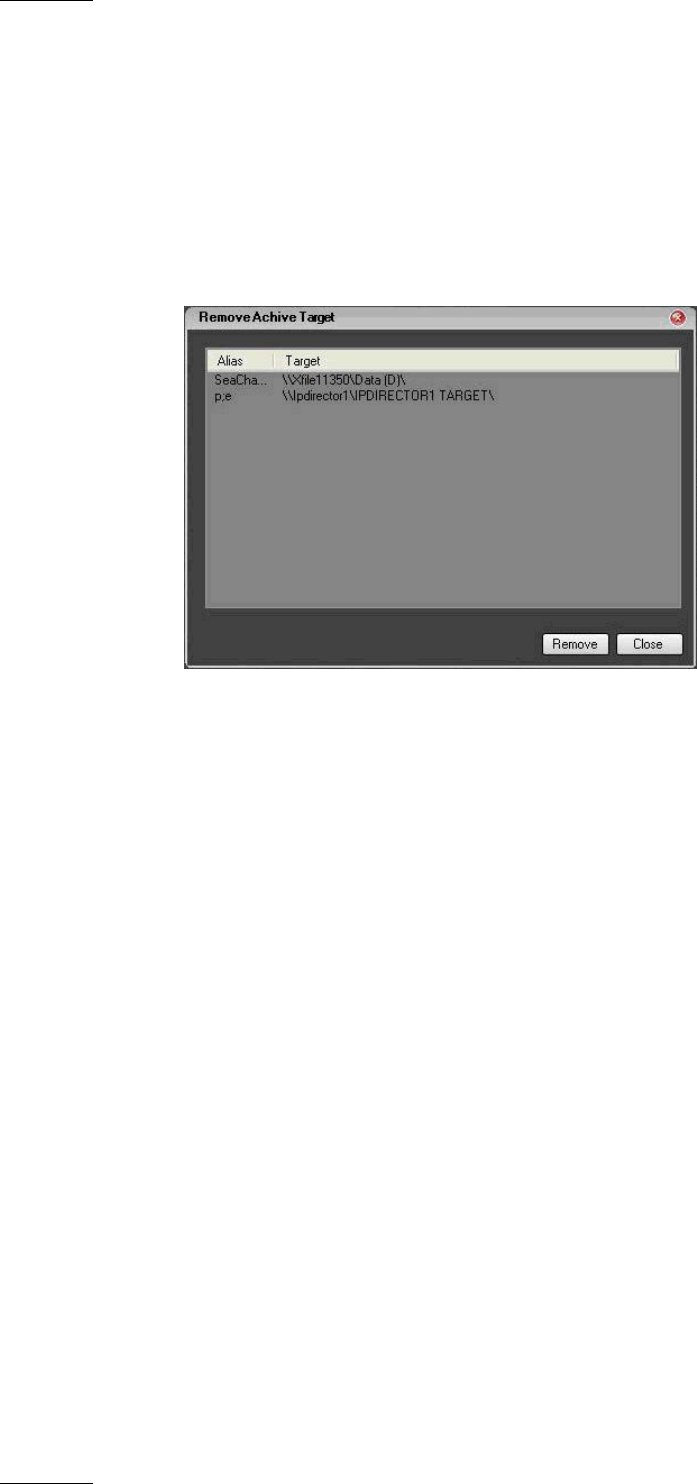

The Remove Archive Target window is displayed.
3. Select a target from the list.
4. Click the Remove button.
5. Answer Yes to the question asked to confirm the operation.
The archive target does not appear in the Send to contextual menu any more.
4.10.6 HOW TO SEND A CLIP TO AN XSTORE WORKSTATION
(RUNNING CLEANEDIT APPLICATIONS)
To send a clip to an XStore workstation, proceed as follows:
1. Right-click the clip line or XT clip line corresponding to the clip you want to
send to CleanEdit.
The clip contextual menu is displayed.
2. Select Send To from the clip contextual menu and select a predefined
XStore (CleanEdit) target from the Send To > CleanEdit sub menu.
