IPDirector Version 5.9
–
User Manual
–
Part 3: Browsing
EVS Broadcast Equipment – January 2011
Issue 5.9.B
43
Using this technique the clip will be copied or moved to the first available location
in the section of the tree it was dropped upon:
• If the clip is dropped on a server level of the tree it will be placed in the first
available space in the XT clip structure.
• If the clip is dropped on a page level of the tree it will be placed in the first
available space in the page structure.
• If the clip is dropped on a bank level of the tree it will be placed in the first
available space in the bank structure.
4.9.2 HOW TO DUPLICATE OR MOVE A CLIP SPECIFYING AN EXACT
LOCATION
To duplicate or move a clip to an exact location, proceed as follows:
1. Select a clip to be moved or copied. You can select either the main clip line
or the XT clip line in the Database Explorer.
2. Right-click the clip and select Move or Duplicate.

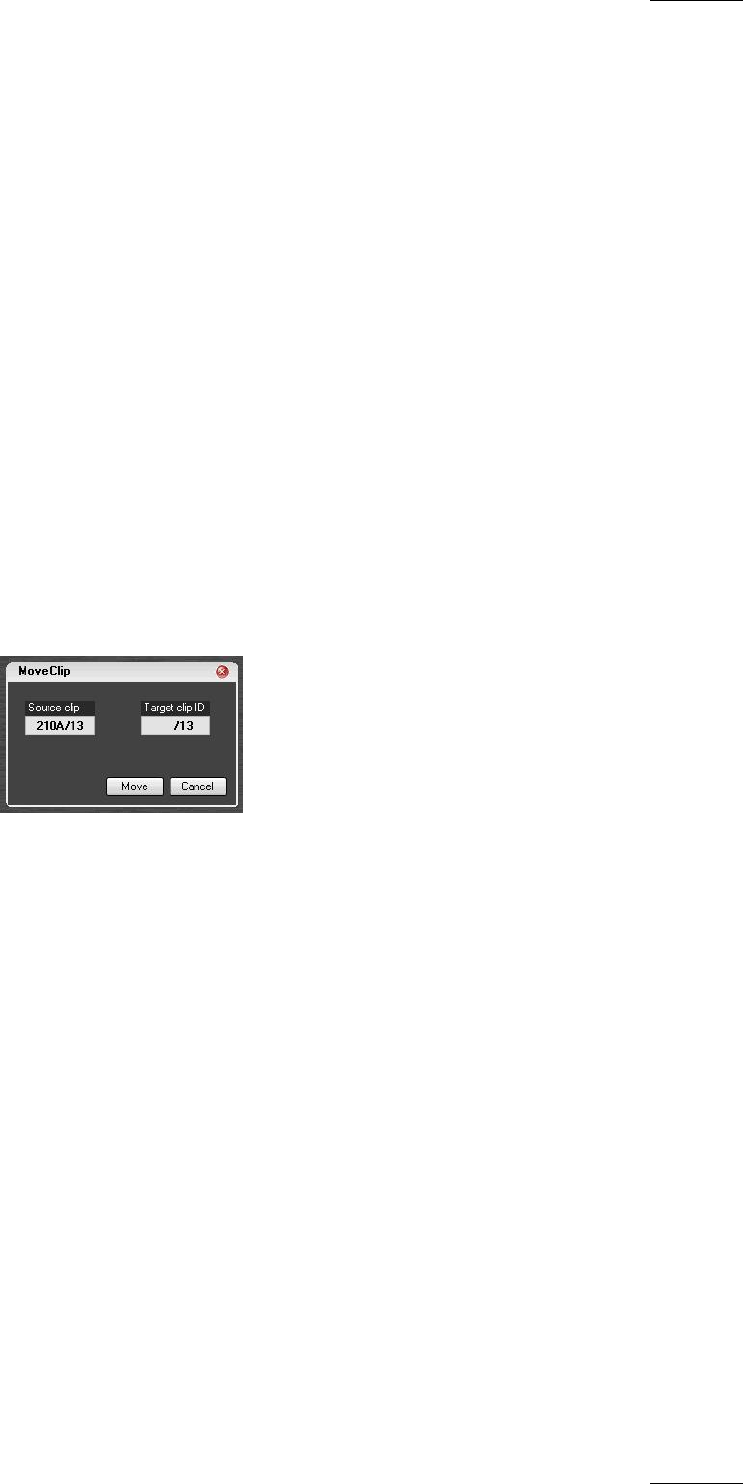

3. The Move window or Duplicate window is displayed asking for the LSM ID
for the new location.
4. Type the LSM ID in the Target Clip ID field.
5. Click the Move button in the Move window, or the OK button in the
Duplicate window.
The clip will be moved or duplicated (copied) to the location specified in the
Target Clip ID field.
