Issue 5.9.B IPDirector Version 5.9
–
User Manual
–
Part 3
–
Browsing
EVS Broadcast Equipment – January 2011
28
• this field will be empty if there is no XT hi-res clip in the clip.

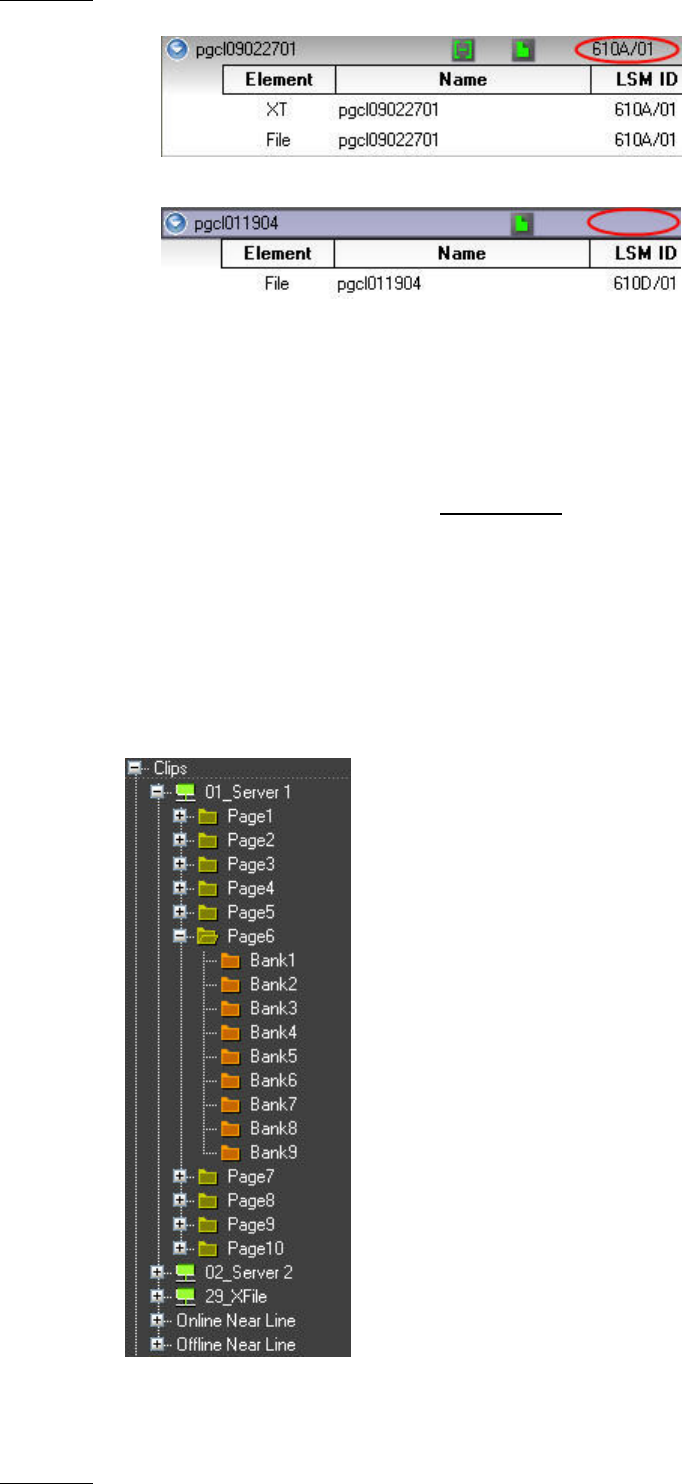

When the LSM ID of the hi-res clip is changed, the virtual LSM ID is changed as
well.
When the LSM ID of the hi-res clip is deleted, the virtual LSM ID is removed and
the LSM ID field is set to blank.
When the LSM ID of the hi-res clip appears in a clip, the virtual LSM ID is updated
to match.
In the list displayed from the clip element
node, the real LSM ID is always
mentioned.
So, if a XT lo-res clip is present in the clip, the only way its real LSM ID can be
retrieved is from the clip element branch of the tree. This view and function should
only be used by system administrators and media managers.
4.4 CLIP TREE STRUCTURE
Within the Clips tree structure of IPDirector, the following sub-branches are
available:
