IPDirector Version 5.9
–
User Manual
–
Part 3: Browsing
EVS Broadcast Equipment – January 2011
Issue 5.9.B
11

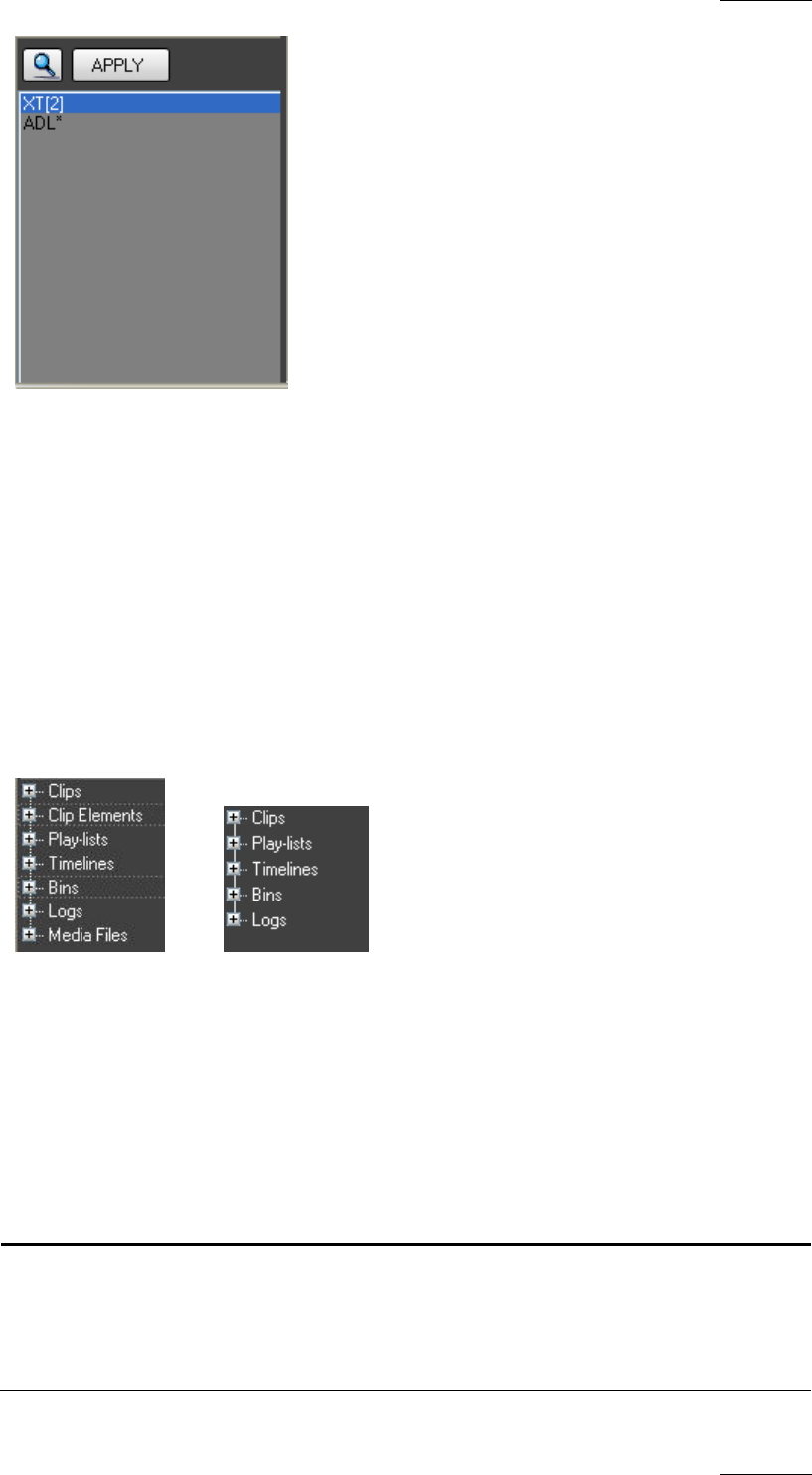

With this mode, you can save filters defined in the grid thanks to the quick search
fields and/or the grid filter bar. You can also apply filters previously saved.
Refer to section 11.7 ‘Using Saved Filters’ on page 109 for more information on
th
e search saving functions.
2.4 TREE VIEW
2.4.1 INTRODUCTION
The Database Explorer is presented in a tree structure, much like Windows
Explorer.
OR
The tree view allows browsing and performing search the Database Explorer. Click
the + sign on a tree branch icon to expand a branch. The selected branch is
displayed in the Database Explorer grid.
Depending on user rights, the user can see different parts of the tree. The table in
section ‘Tree Structure Depending on User Rights’ on page 13 mentions which
pa
rts of the tree each kind of user could see.
Administrator or Media Manager will have full rights and therefore could be able to
see all the tree branches available, i.e.:
Tree Branch Description
Clips Displays the list of clips. Each clip is displayed on a
separate line within the grid but the view can be
expanded thanks to a small arrow at the beginning of
each line. The different clip elements making up the clip
are then displayed on separate lines.
