IPDirector Version 5.9
–
User Manual
–
Part 3: Browsing
EVS Broadcast Equipment – January 2011
Issue 5.9.B
109
11.7 USING SAVED FILTERS
Once you have defined filters and search terms, you may want to save them for
later use. You can then apply the same set of filters with a single click.
Saved filters will be common between:
• the Clips tree and the Clip view in bins
• the Playlists tree and the Playlists view in bins
• the Timelines tree and the Timelines view in bins
11.7.1 HOW TO SAVE FILTERS
To save filters, proceed as follows:
1. Define the filters you wish to save, as explained above.
2. Make sure the Saved Filters pane is visible under the tree view: the Saved
Filters button must be highlighted. It can be activated/de-activated by single
click.

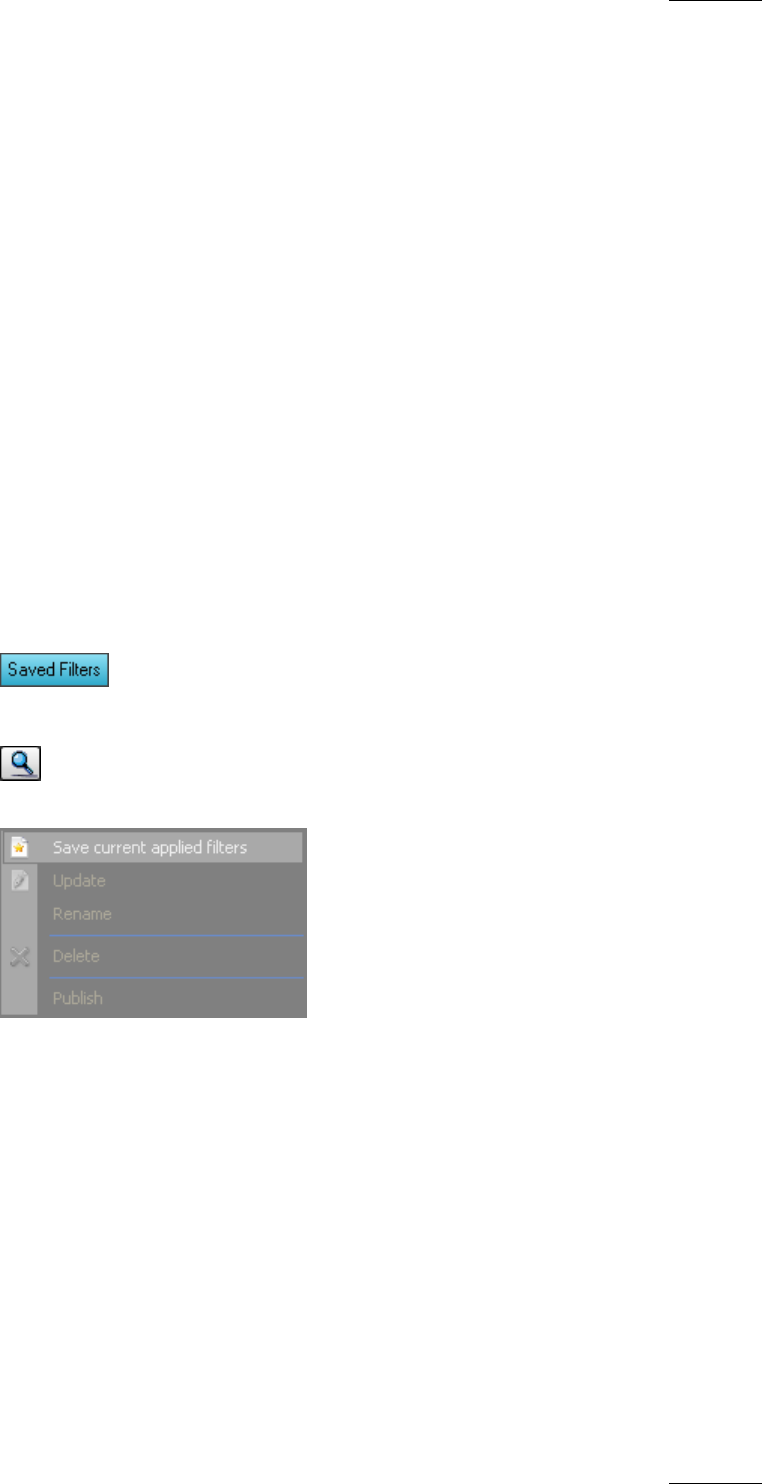

3. Click the Save Filter button in the Save Filter pane.
The following contextual menu is displayed:
4. Select Save current applied filters from the menu.
The New Filters window is displayed.
5. Enter a name for the saved filters set.
6. Click OK to confirm.
The new filter name is listed in the Saved Filters pane.
