Issue 5.9.B IPDirector Version 5.9
–
User Manual
–
Part 3
–
Browsing
EVS Broadcast Equipment – January 2011
106

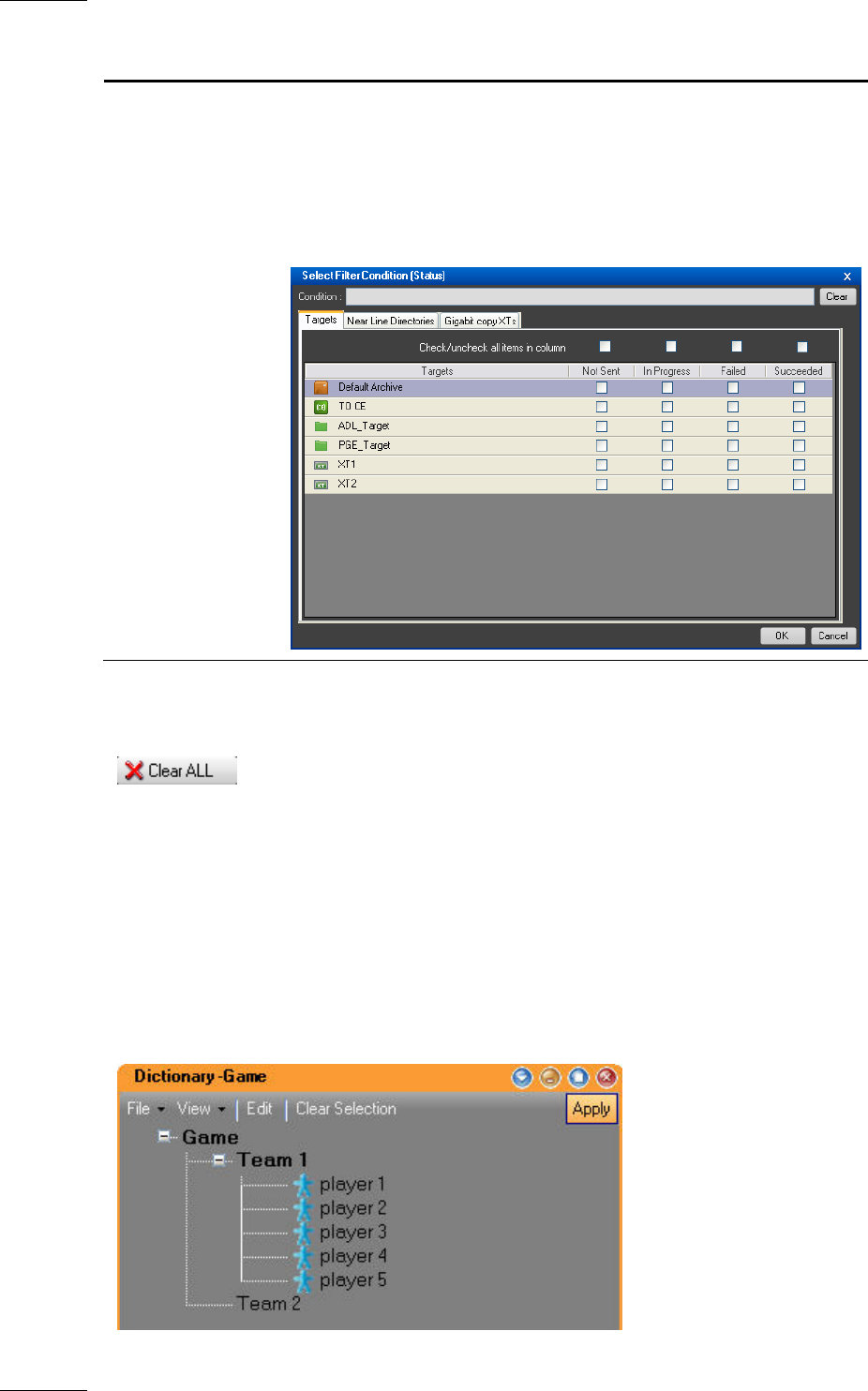

Grid Filter Field Complex Filter Entry Window
Status Click the Complex Filter button next to the Status field to
open the window which allows filtering on the destinations the
media has been sent to:
• Targets: lists all the targets defined in the remote installer.
• Nearline directories: lists all the nearline directories, as
defined in the remote installer.
To clear all filters on the Grid Filter bar and/or from the Quick search options:
click the Clear All button on the top of the grid:
11.5.4 HOW TO PERFORM ADVANCED SEARCH THROUGH
KEYWORDS GRID FILTER FIELD
As explained in the Keywords Management chapter, in part 2 of the manual, child
and parent keywords can be defined in a tree structure into the Dictionary tool.
During an event, you can define all the player names of a football team as child
keywords of the parent keyword “team name” or “country”. You can then assign a
child keyword to logs or clips.
