- 4.1 OVERVIEW OF THE TIMELINE ELEMENTS
Issue 5.8.B IPDirector V.5.8
–
User Manual
–
Part 7: Editing -
IPEdit
EVS Broadcast Equipment - July 2010
200
4.16 USING LOCATORS IN IPEDIT
4.16.1 GENERAL INFORMATION ON LOCATORS
DEFINITION
A locator is a reference point to a specific frame in a timeline element. The locator
is identified by a TC value, and generally relates to requested or required actions,
or to comments about the production.
C
HARACTERISTICS
The locators in IPEdit have the following characteristics:
• They are represented by a reverse triangle.
• They have a user-defined color,
• They need to be associated to a timeline element on a single video or audio
track.
• You can add metadata to the locator.
Note
This is not possible to place more than one locator at the same timecode
on the same track.

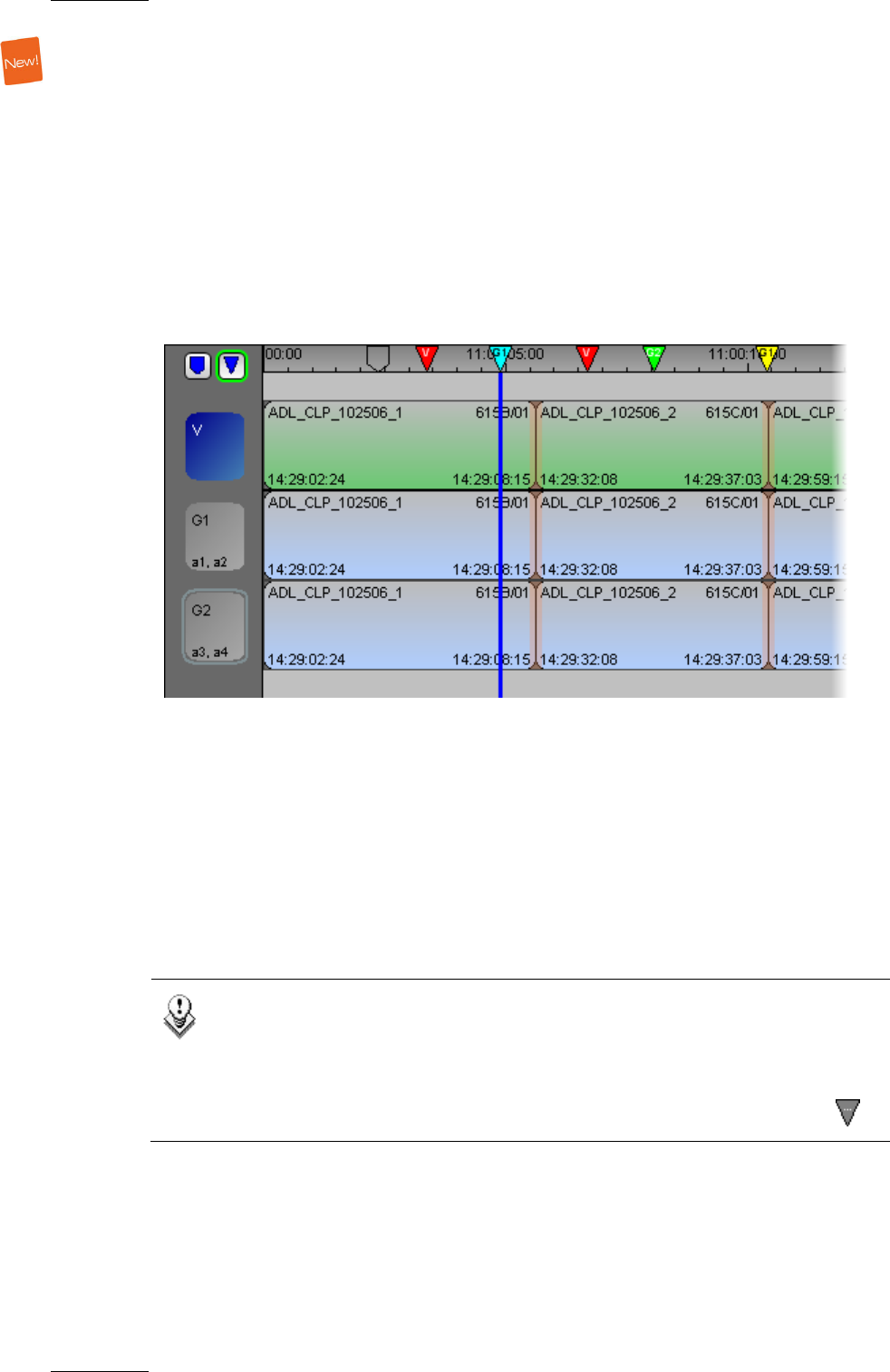

If more than one locator are positioned at the same timecode, but on
different tracks, they will be appear as follows on the timecode bar:
