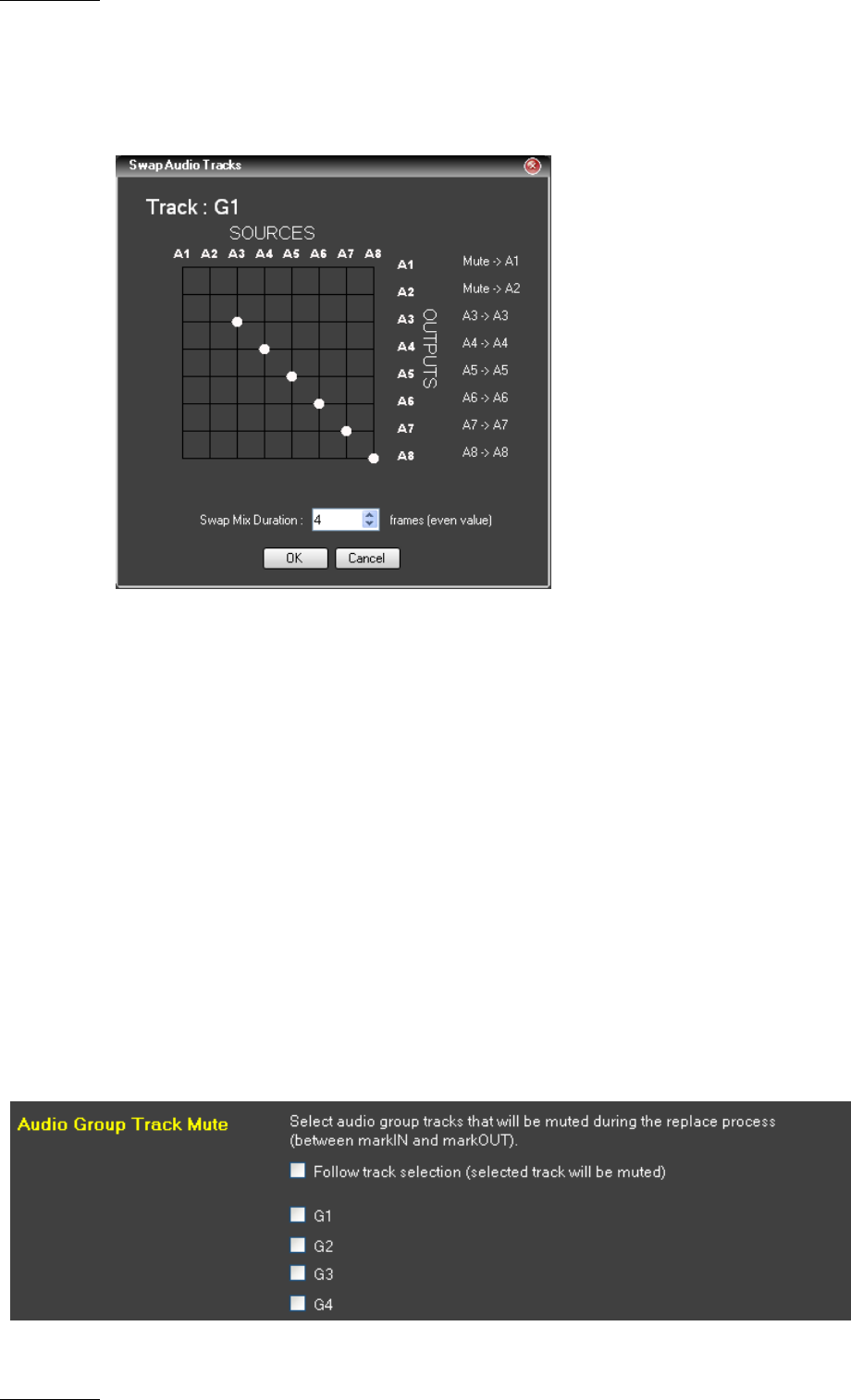

The following screenshot shows how you need to set up the audio channel input
matrix for the G1 track to get the result illustrated in the drawing above. Proceed
the same way for the other tracks.
As you want to output the
track G1 into the track G3, you
will do the following:
• On the G1 track, click on
the bullets to mute the
channels a1 and a2.
• On the G3 track, click at the
intersection of the a1 source
channel and the a5 output
channel to route the a1
source to the a5 output.
• On the G3 track, click at the
intersection of the a2 source
channel and the a6 output
channel to route the a2
source to the a6 output.
How to Define the Audio Channel Input Matrix
1. Right-click anywhere in the timeline and select Replace Settings.
The Replace Settings window opens.
2. In the Audio Channel Input Matrix group box, map each channel that you
want to have in the replaced media (output channel) to the source channel
to be played on this output channel:
To map the source channel and the output channel, click at the intersection
of both channels in the grid that corresponds to the track where you want to
output the signal.
3. Repeat the step 2 for each output channel you want to have in your replaced
media.
4. Click Apply to save the Replace settings.
AUDIO GROUP TRACK MUTE
