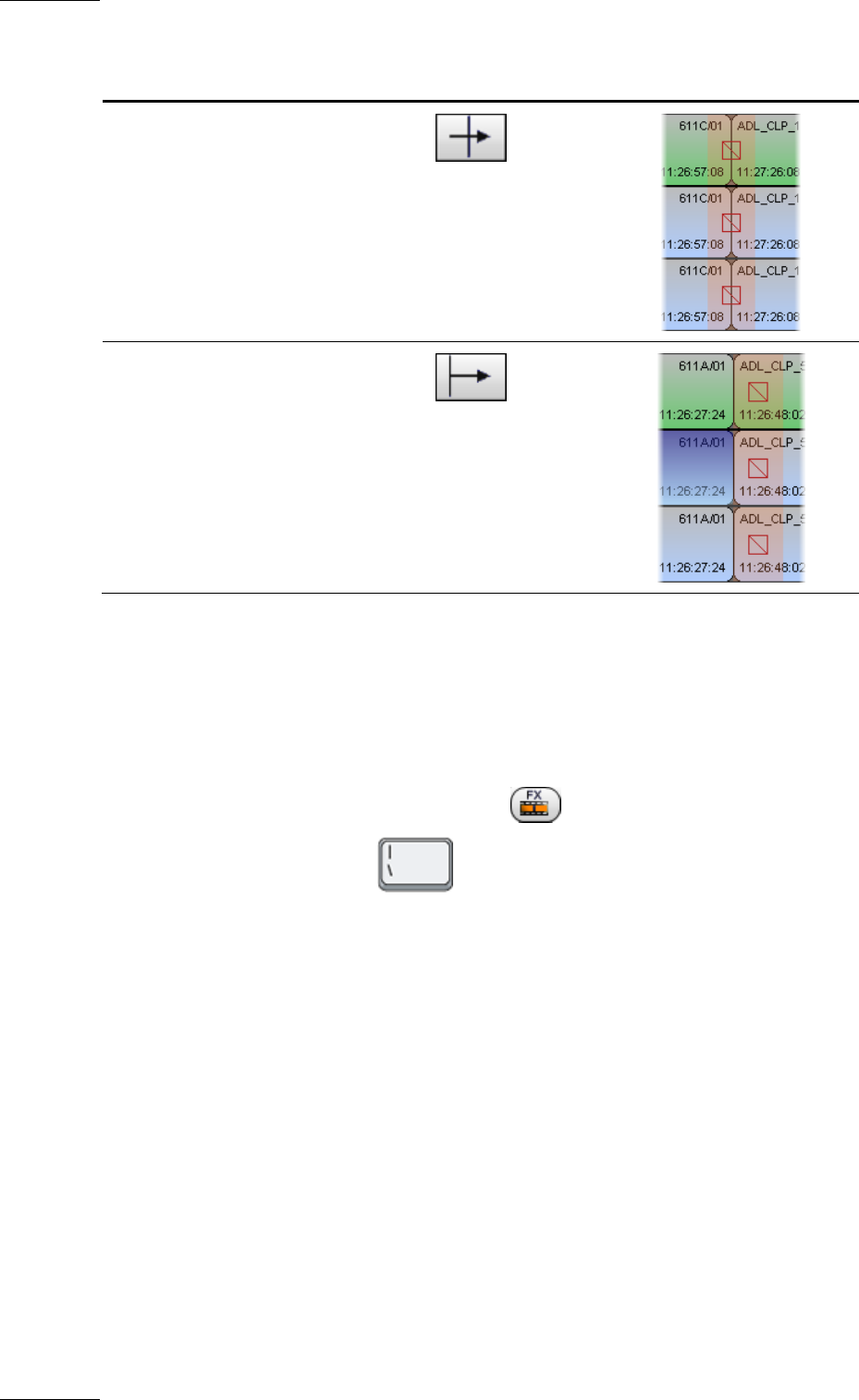

Transition Position Setting in the Transition
Effect Definition
Display
Centered
After Cut
(on the element where
the transition is defined)
4.12.6 ADD/ MODIFY TRANSITION EFFECT WINDOW
You can add and modify transition effects manually in the Add/Modify Transitions
Effect window.
To access this window, do one of the following:
• Click the Add Transition Effects button in the Timeline pane.
• Press the Backslash key .
OVERVIEW
This window is made up of four main group boxes, in addition to the usual Add
and Cancel buttons:
• Tracks
• Transition Effect
• Options
• Video Transition GPI
