Issue 5.8.B IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
88
3.5 AUDIO CONFIGURATION
To select the audio channels you want to listen to, proceed as follows:
1. Right-click on the Video Display.
2. Select OCX Audio Configuration from the contextual menu.

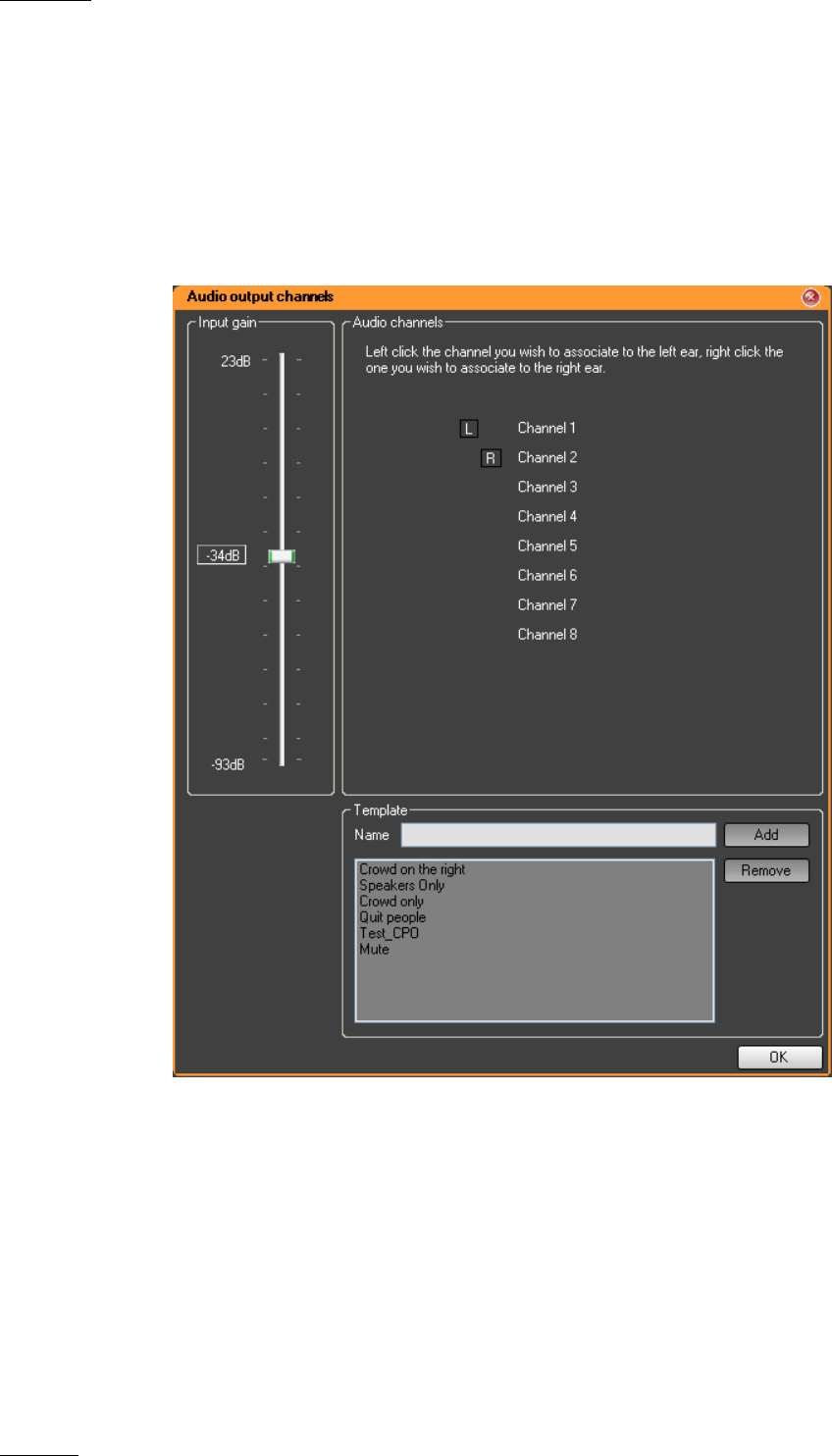

The Audio Output Channels window opens:
3.
• left click the channel you want to associate to the left ear and
• right-click the channel you want to associate to the right ear.
4. If required, adjust the input gain.
5. For an easy retrieval of the configuration, you can save it:
enter a name in the Template Name field and press the Add button.
6. Press OK to validate your selection.
