Issue 5.8.B IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
56
1.4.4 LOADING A PLAYLIST IN THE CLIP-LIST TAB
Off-line or on-line playlists can be loaded in the Clip-List tab. When the Control
Panel is associated to a player channel, off-line playlists will automatically
become on-line and distant playlists will automatically be copied to the server of
the controlled channel.
There are several ways to load a playlist into the Control Panel:
HOW TO LOAD A PLAYLIST VIA THE PLAYLIST NAME OR LSM
ID
You can load a playlist in the Clip-List tab if you know the playlist name or LSM
ID.
To load the playlist by means of the playlist name, proceed as follows:

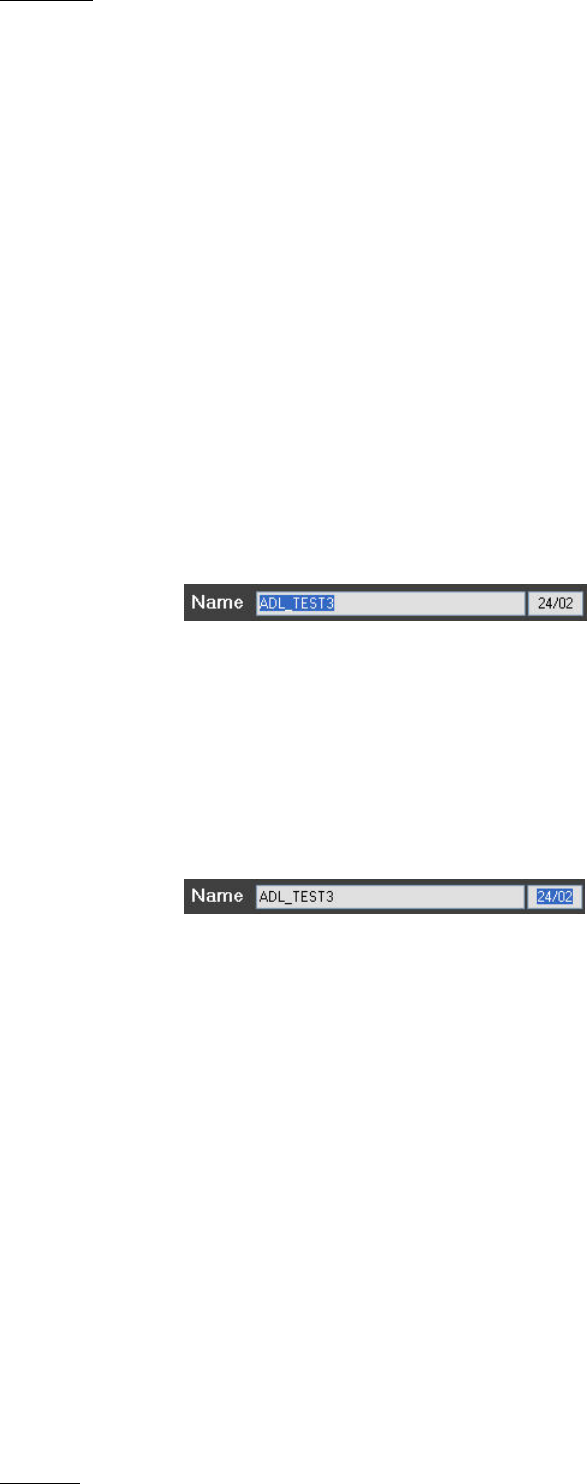

1. Click on the Name field in the Clip-List tab.
The field value is highlighted in blue.
2. Enter the full name of the playlist to be loaded (no case-sensitivity).
3. Press ENTER.
To load the playlist by means of the playlist LSM ID, proceed as follows:
1. Click on the LSM ID field (on the right of the Name field) in the Clip-List
tab.
The field value is highlighted in blue.
2. Enter the LSM ID of the playlist to be loaded.
3. Press ENTER.
The playlist will then be loaded on the IN point of the first element. If another
playlist had previously been loaded, this latter is replaced by the new one on the
Playlist Panel.
