Issue 5.8.B IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
52

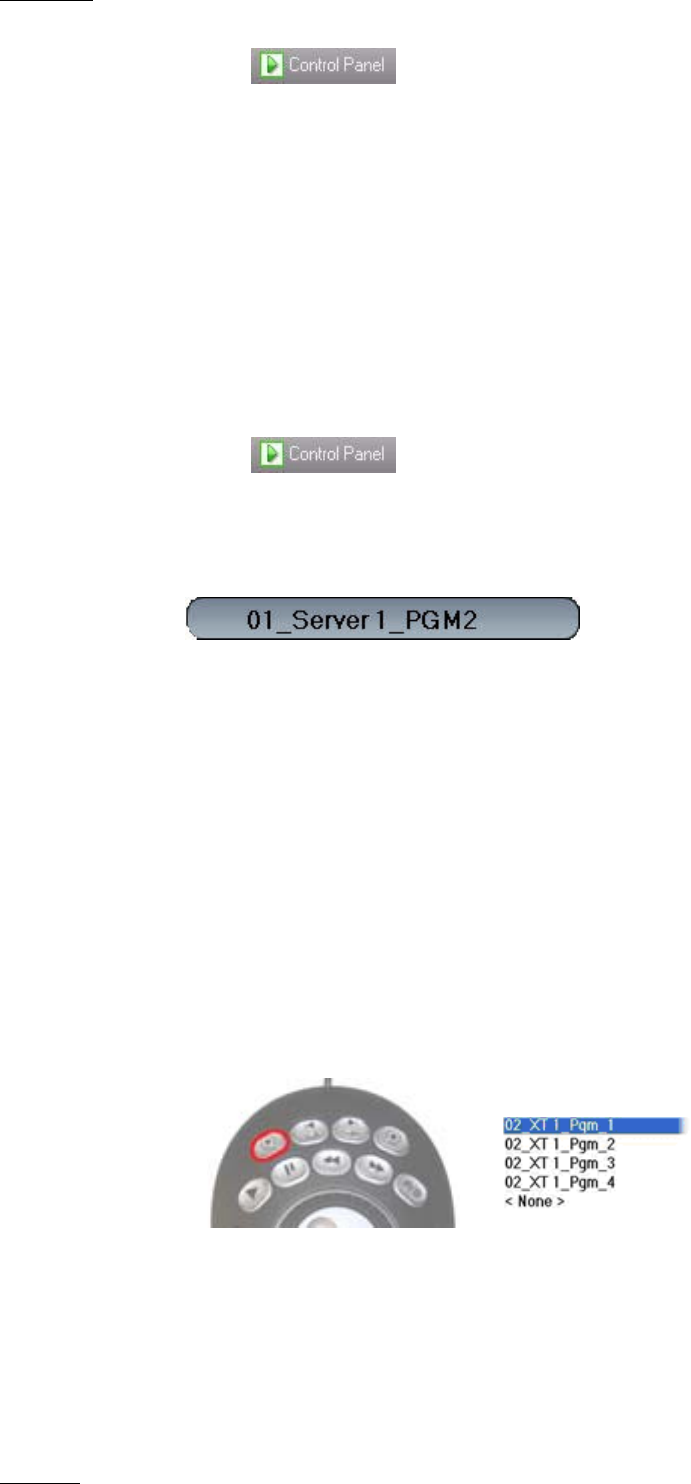

1.
Select from the main menu of IPDirector.
A Control Panel window opens in an inactive state as a player channel has
yet to be assigned.
2. Drag a player channel from the Channel Explorer onto the open Control
Panel to assign it.
HOW TO ASSIGN A CHANNEL OR THE SOFTWARE PLAYER
FROM THE
CHANNEL FIELD
To assign a player channel or the Software Player from the Control Panel, proceed
as follows:
1.
Select from the main menu of IPDirector.
A Control Panel window opens in an inactive state as a player channel has
yet to be assigned.
2. Right-click on the Channel field:
A contextual menu displays the available player channels and the Software
Player command.
3. Select the Software Player or the channel to assign from the contextual
menu.
You can only open one instance of the Software Player at a time in IPDirector. If
an instance of the Software Player is already open in a Control Panel, an error
message prevents you from opening the Software Player.
HOW TO ASSIGN A CHANNEL FROM THE SHUTTLEPRO
To assign a player channel from the Shuttle PRO, proceed as follows:
1. Press the Select Player key on the ShuttlePRO controller.
This calls up a list of channels available to be controlled.
2. Use the jog dial to move through the list and highlight the required channel.
3. Press the Select Player key again to assign the channel and exit the menu.
Refer to the ShuttlePRO section of the manual for more information on the
configuration of the controller.
