IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
Issue 5.8.B
47
Organizing the Columns in the Element List
The user can change the columns positions in the element list via the Organize
command of the Clip-List contextual menu.

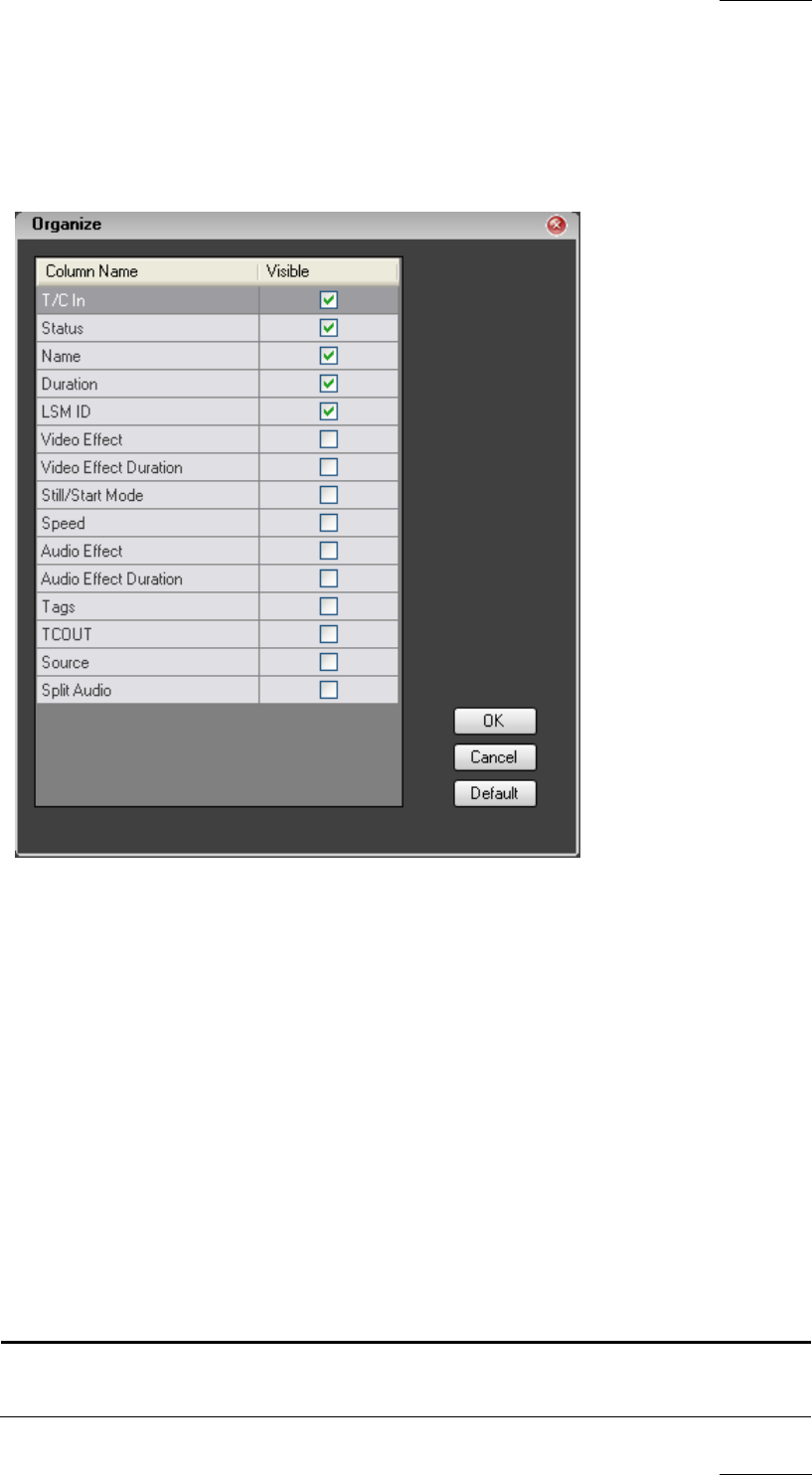

This command opens a window allowing the organization of the columns to be
displayed and in which order they appear from left to right.
Each Column can be made Visible or Hidden in the element list using its check
box. The columns can also be ordered using a drag-and-drop operation to move
them up or down within the displayed list.
The columns order can be saved by selecting Save Grid Organization in the Clip-
List contextual menu or it can go back to default by selecting Reset Grid
Organization.
1.2.11 CONTROL PANEL CONTEXTUAL MENU
A contextual menu is available from any pane in the Control Panel via a right-click
on the mouse. Available menu items will depend on the element loaded on the
control panel. If no element is loaded, no menu item is available.
The following table describes all the options:
Option Description
Send to Provides a list of possible destinations to which the
selected clip can be sent.
