Issue 5.8.B IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
44

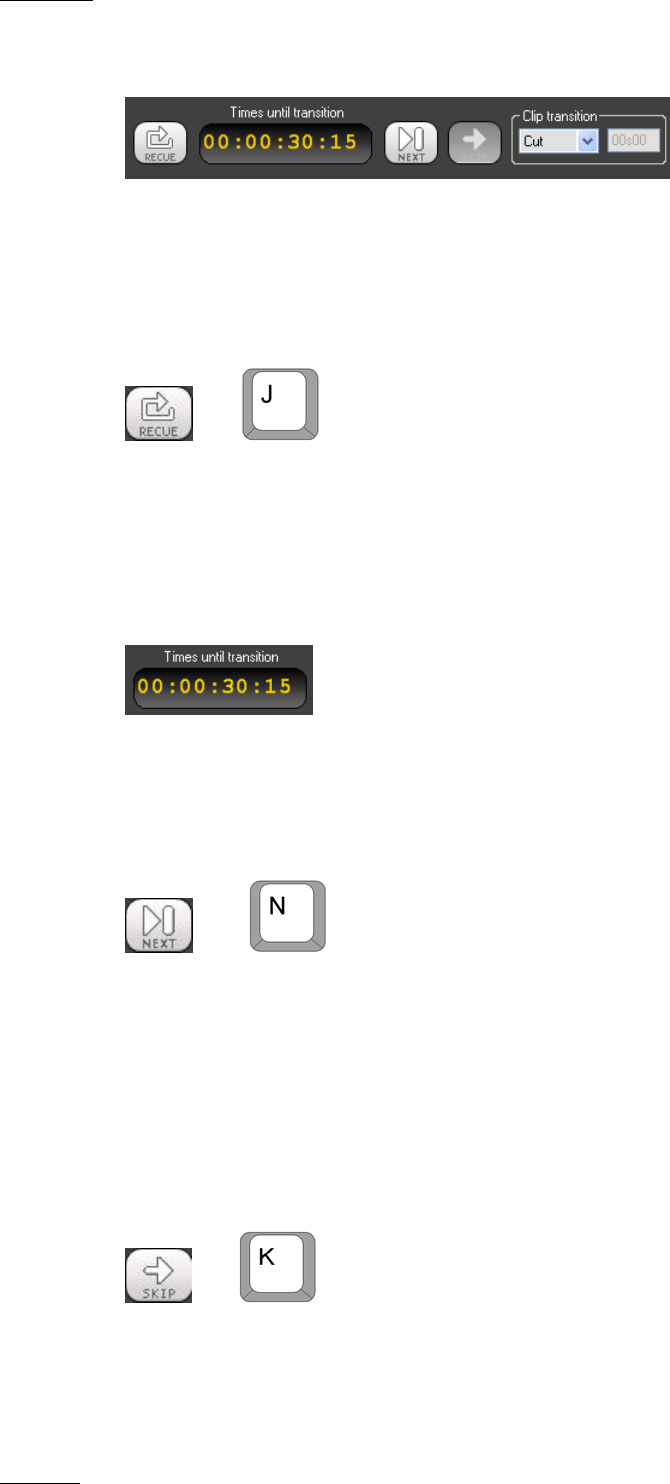

PLAYLIST FUNCTIONS
Besides the usual transport functions that can be used for the playlist and are
available in the Clip Transport Functions area, several functions specific to the
playlist are available in the upper part of the Clip-List tab.
RECUE
OR
When the operator presses the Recue button, the system loads the playlist on the
first frame of the first element.
This button is dimmed and not active if the playlist is on air.
Times Until Transition
The Times Until Transition field specifies the remaining playout time until the
end of the current element of the playlist.
NEXT
OR
If the playlist is in PLAY when the operator clicks on the NEXT button, the next
element is loaded immediately and played accordingly to its start mode and start
effect.
If the playlist is in PAUSE when the operator clicks on the NEXT button, the
playlist jumps to the IN point of the next element of the playlist but remains
paused.
SKIP
OR
When the playlist is in PLAY, the next element is skipped if the SKIP button is
clicked. If the button is clicked twice, the next 2 elements will be skipped, and so
on as defined by the highlight on the list moving to the next element each time.
