where the command is applied.

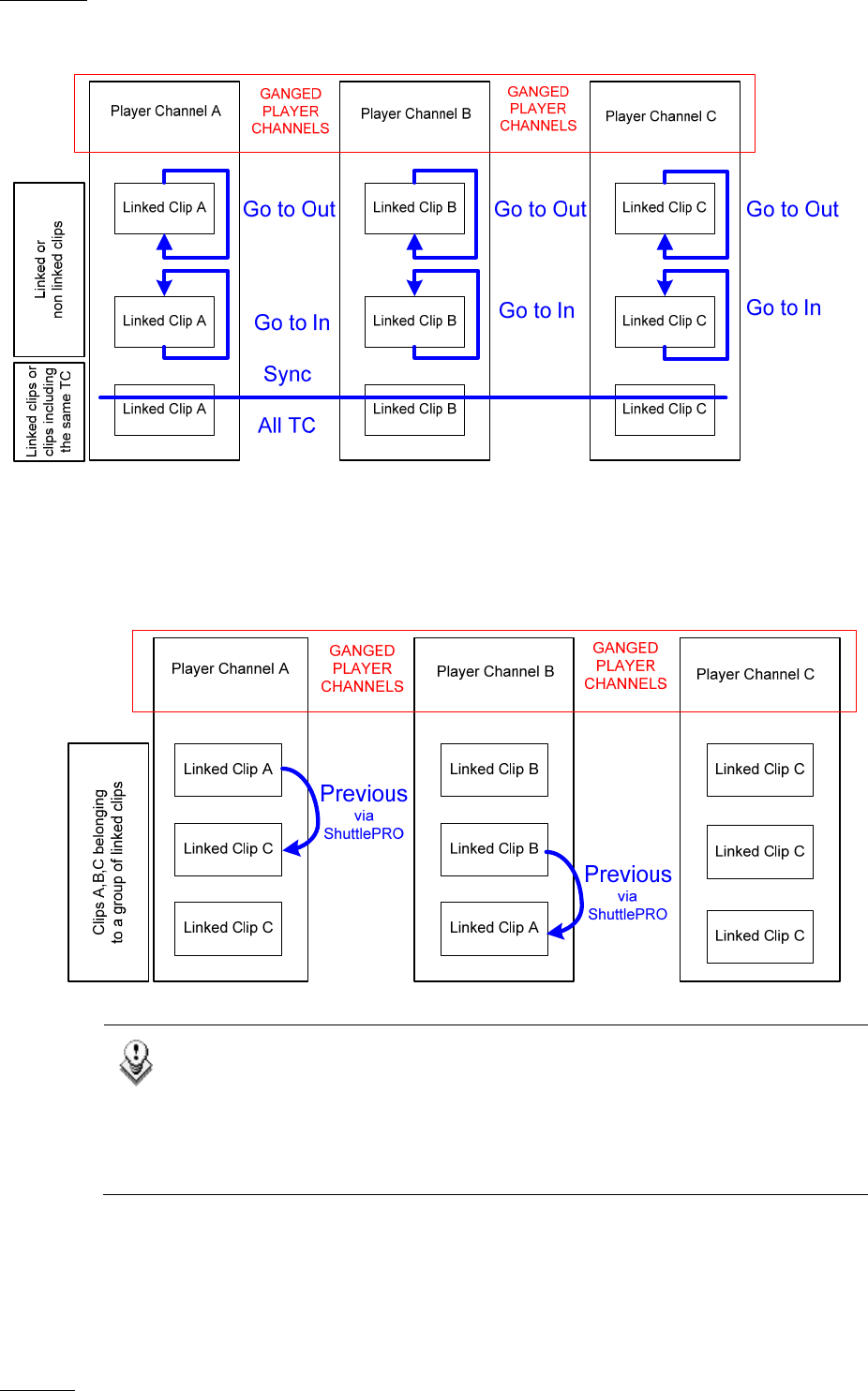

NEXT and PREVIOUS
In the same ways as for record trains, the NEXT and PREVIOUS commands
executed with the ShuttlePRO on a linked clip loaded on one PGM are only applied
on this PGM. In other words, the next or previous linked clip of the clip group will
only be loaded on this player channel.
Note
In a PGM/PRV configuration, it is especially relevant to perform the Next
and Previous functions only on the player channel on which the
command is applied as it makes it possible to toggle between the linked
clips on the PRV channel while keeping the director’s cut on the PGM
channel
