IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
Issue 5.8.B
37

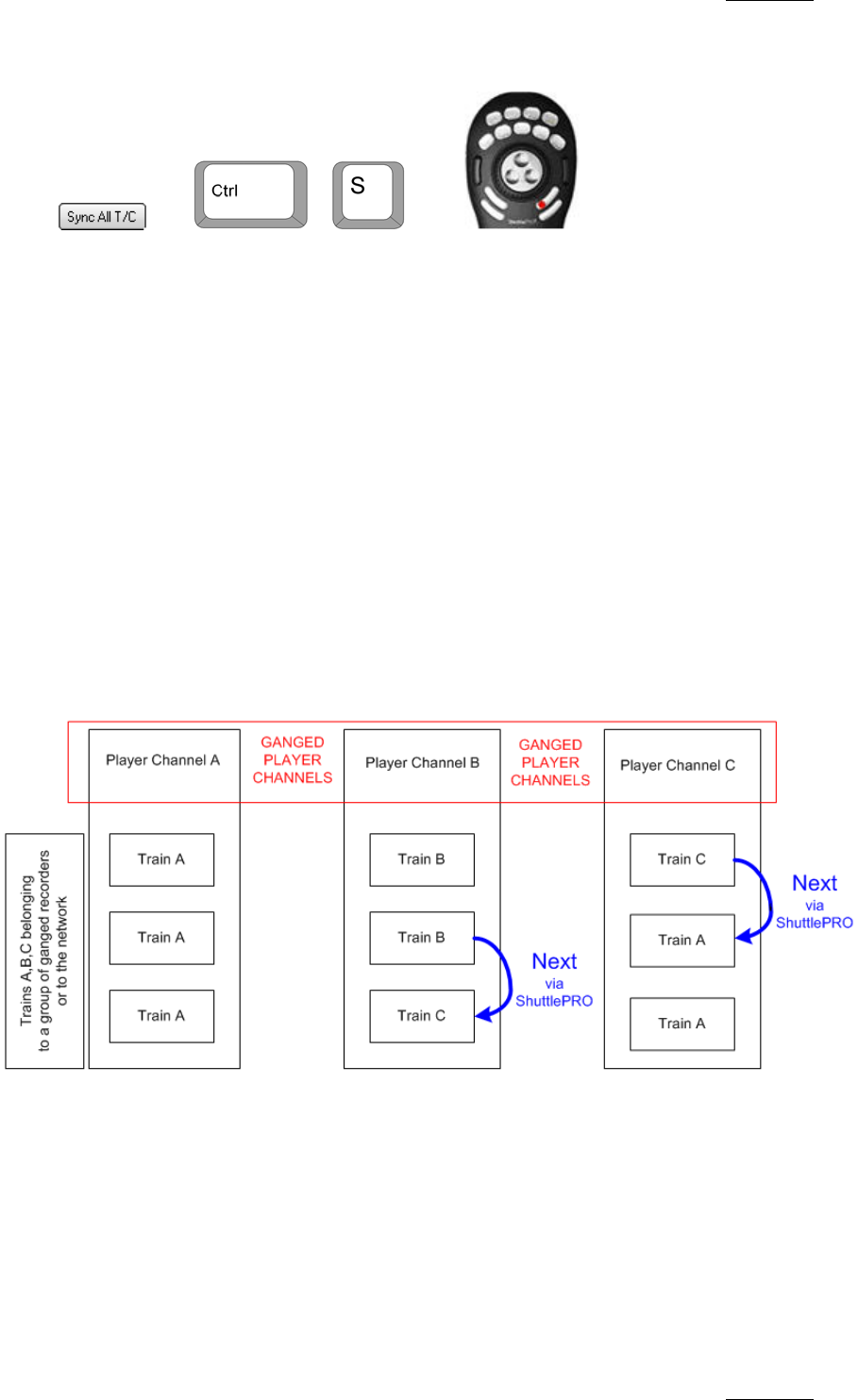

SYNC FUNCTION
OR + OR
The Sync function will force other channels linked to the channel controlled to
synchronize their timecode position to the same timecode as the current position
on the channel controlled.
TRANSPORT COMMAND SYNCHRONIZATION ON GANGED
PLAYER CHANNELS
Trains
When live or stopped record trains are loaded on ganged player channels, the
NEXT and PREVIOUS commands executed on one PGM by means of the
ShuttlePRO are only applied on this PGM:
• If the train belongs to a group of ganged recorders, the application shifts to the
next or previous record train of the group.
• If the train does not belong to a group of ganged recorders, the application
shifts to the next or previous record train of the XNet network.
Clips
GO TO IN/OUT and SYNC ALL T/C
When linked or non linked clips are loaded on ganged player channels, the GO TO
IN, GO TO OUT and the SYNC ALL T/C are applied to all clips loaded on the
ganged player channels.
With the SYNC ALL T/C command, all clips on ganged channels are loaded on the
same TC as the clip loaded on the main channel. The main channel is the channel
