Issue 5.8.B IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
36

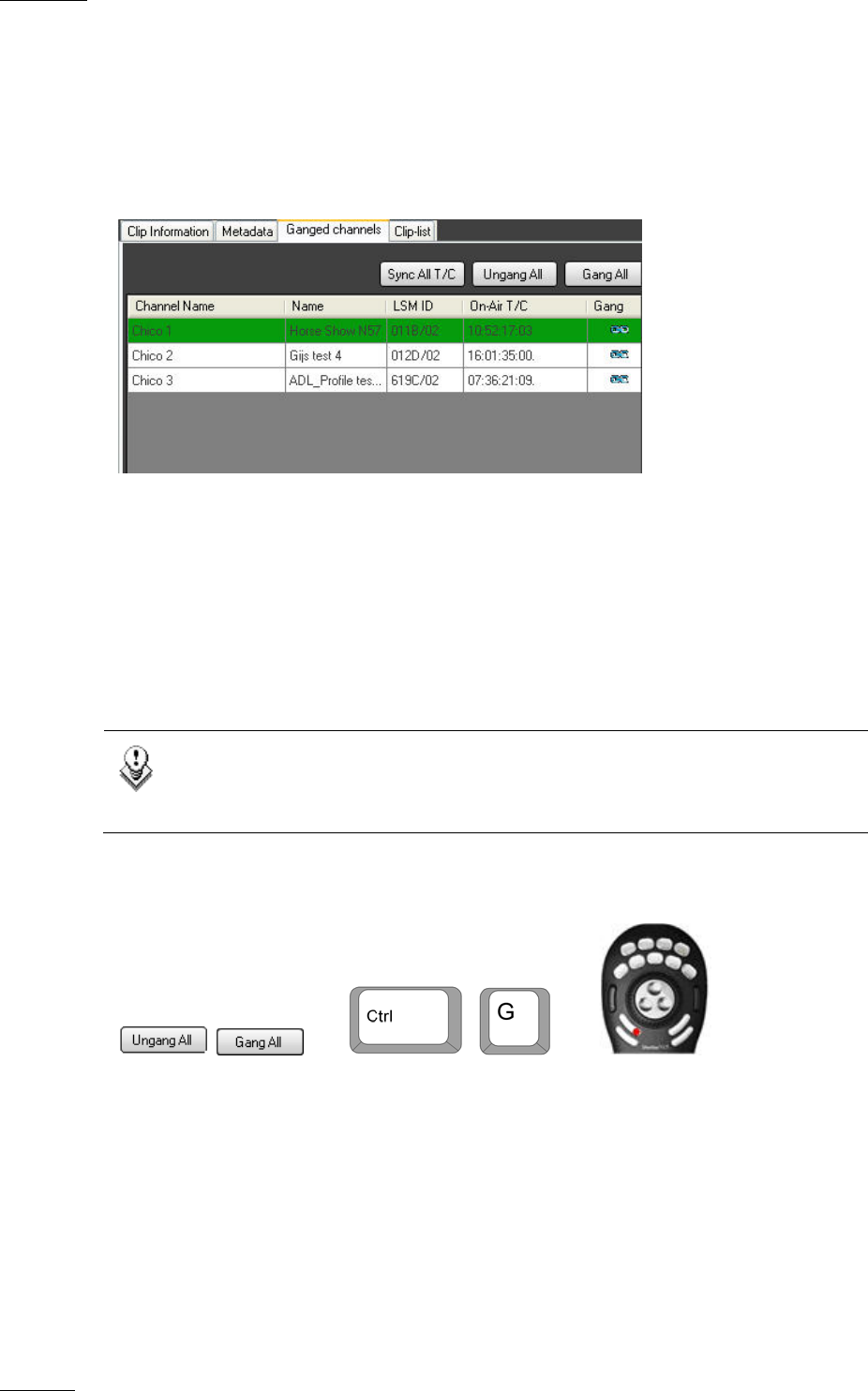

1.2.9 GANGED CHANNELS TAB
The Ganged Channels tab displays the information on all player channels that
have been ganged with the current player channel under the control of the active
Control Panel.
The player in green is the one which is under the control of the Control Panel.
This tab area also provides the following commands to use with ganged channels:
• How to Play a Ganged Channel, on page 77
• How to Synchronize The Timecode on All Player Channels, on page 77
• How to Temporarily Ungang and Gang Again One or More Channels, on page 77
• How to Remove a Channel from the Group, on page 77.
No
te
The Ganged Channels tab is not available when using the Software
Player.
GANG FUNCTION
OR + OR
Once the Gang function is enabled in the Channel Explorer, the Gang All and
Ungang All buttons allow you to temporarily gang or ungang all the ganged
channels.
When you ungang channels in the Control Panel, they remain ganged in the
Channel Explorer. You need to ungang them in the Channel Explorer as well.
