IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
Issue 5.8.B
29
• The Save Clip window opens and allows the user to enter the clip name and clip
related information before the clip is created. Refer to section 1.6.2 “Save Clip
Wi
ndow”, on page 61 for more information on this window.
Yo
u can define the Open Save Clip Window setting in the Tools > Settings >
Clips > Clips/General category. Refer to section ‘Settings’ in part 1 of the user
manual for more information on the setting.
Note
When the user is trying to create a clip and store the new media on a
different EVS video server than the media is coming from, the clip
creation may takes a longer period of time than expected. In this case,
the media is being copied from one server to the one defined by the
user, and will display clip creation notification once complete.

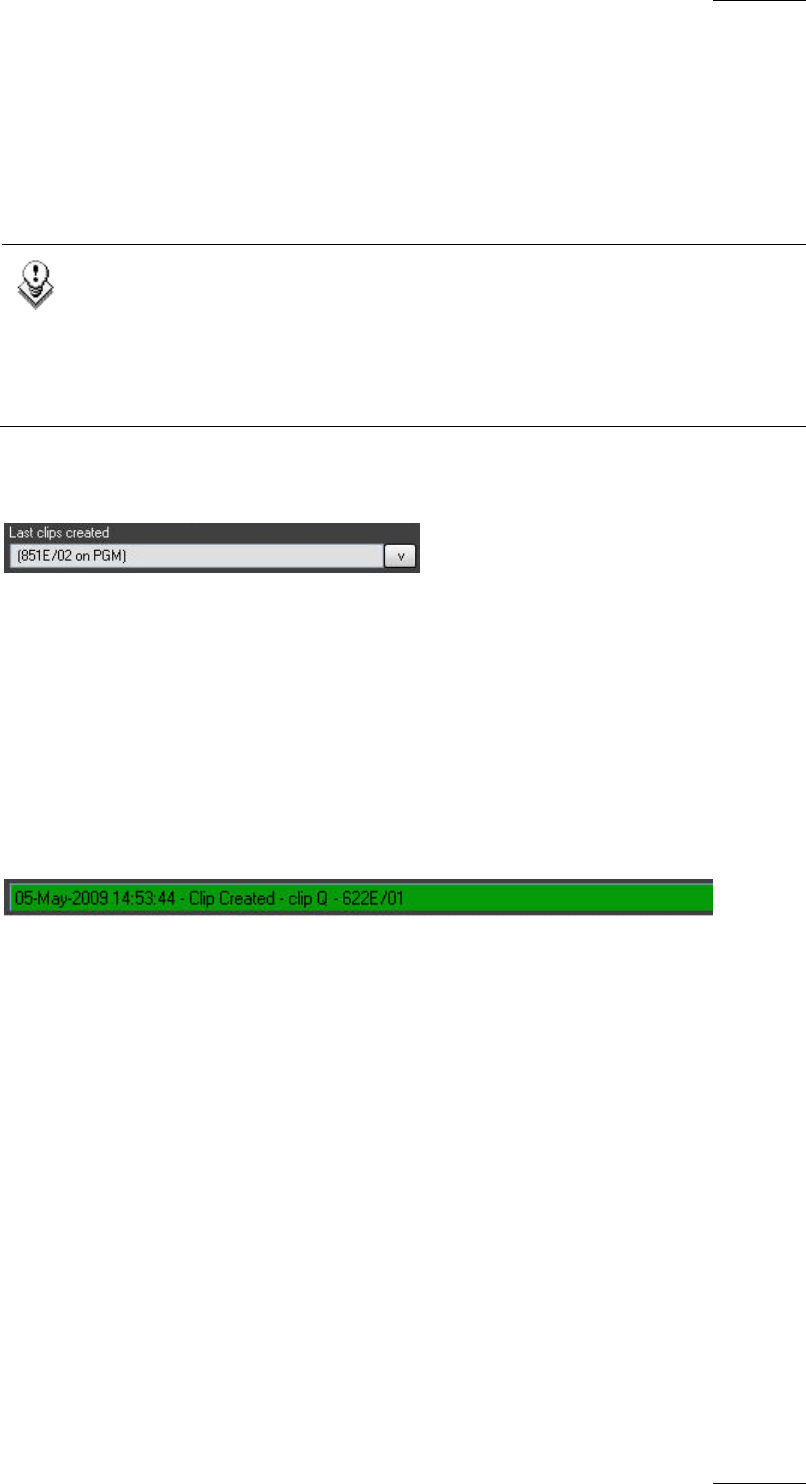

LAST CLIPS CREATED LIST
This drop-down list displays:
• the last 50 clips created by the user
OR
• the last 50 clips created that the user has the right to see.
The latest created clips are displayed at the top on the list. A reference to a clip
in the list includes the clip name, as well as the LSM ID and source name.
CLIP STATUS
When a clip is successfully created, moved or copied the status bar at the base of
the IPDirector main window will show the successful operation.
If an operation has failed the bar will have a red background warning that the
operation was not successful. Using the drop-down feature on the bar will reveal a
list of recent operations.
To cancel the red background when an operation has been unsuccessful click on
the ACK button (acknowledge) next to the status bar.
