IPDirector Version 5.8
–
User Manual
–
Part 5: Playout
–
Player Control Panel
EVS Broadcast Equipment – July 2010
Issue 5.8.B
25
back to the last loaded record train at the timecode where the E/E mode was
exited, effectively “snapping” back to where the user left off in the record train.

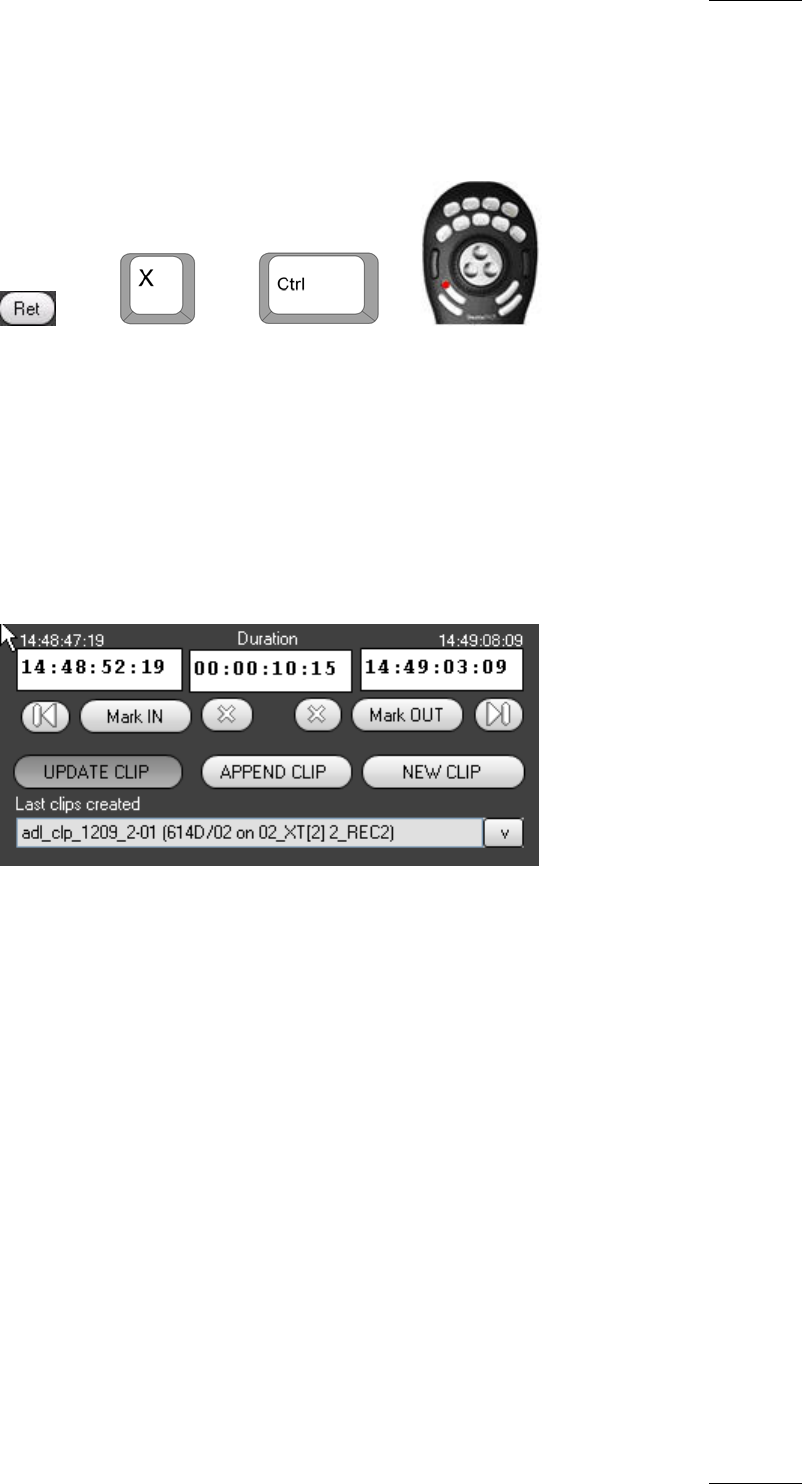

RET BUTTON
OR OR +
The button becomes active if a clip has been loaded on a player channel. By
pressing it, the same frame of media will be loaded from the original record train,
if it is still available (not overwritten in the recorder yet). This allows for playback
beyond the clip boundaries or to define a new clip from the original record media.
1.2.6 CLIP CREATION PANE
The Clip Creation pane provides the functions to create clips.
The screenshot below shows the Clip Creation pane:
You will find below a description of the various functions available in the Clip
Creation pane:
TIME INFORMATION
The following time information is displayed as follows depending on the loaded
media:
• When you load a clip, all time information fields are filled.
• When you load a train, no time information is displayed.
• When you click the Mark IN and/or Mark OUT buttons to create a new clip from
the train, the fields 2, 4 and 5 in the screenshot below display the new values
defined. As long as the clip is not saved, the values 1 and 3 will not be
displayed.
