IP Director Version 4.3 – User Manual – Part 2: Logging and Browsing
EVS Broadcast Equipment
Issue 4.3.C
67
3.2.16 TRANSFER HISTORY

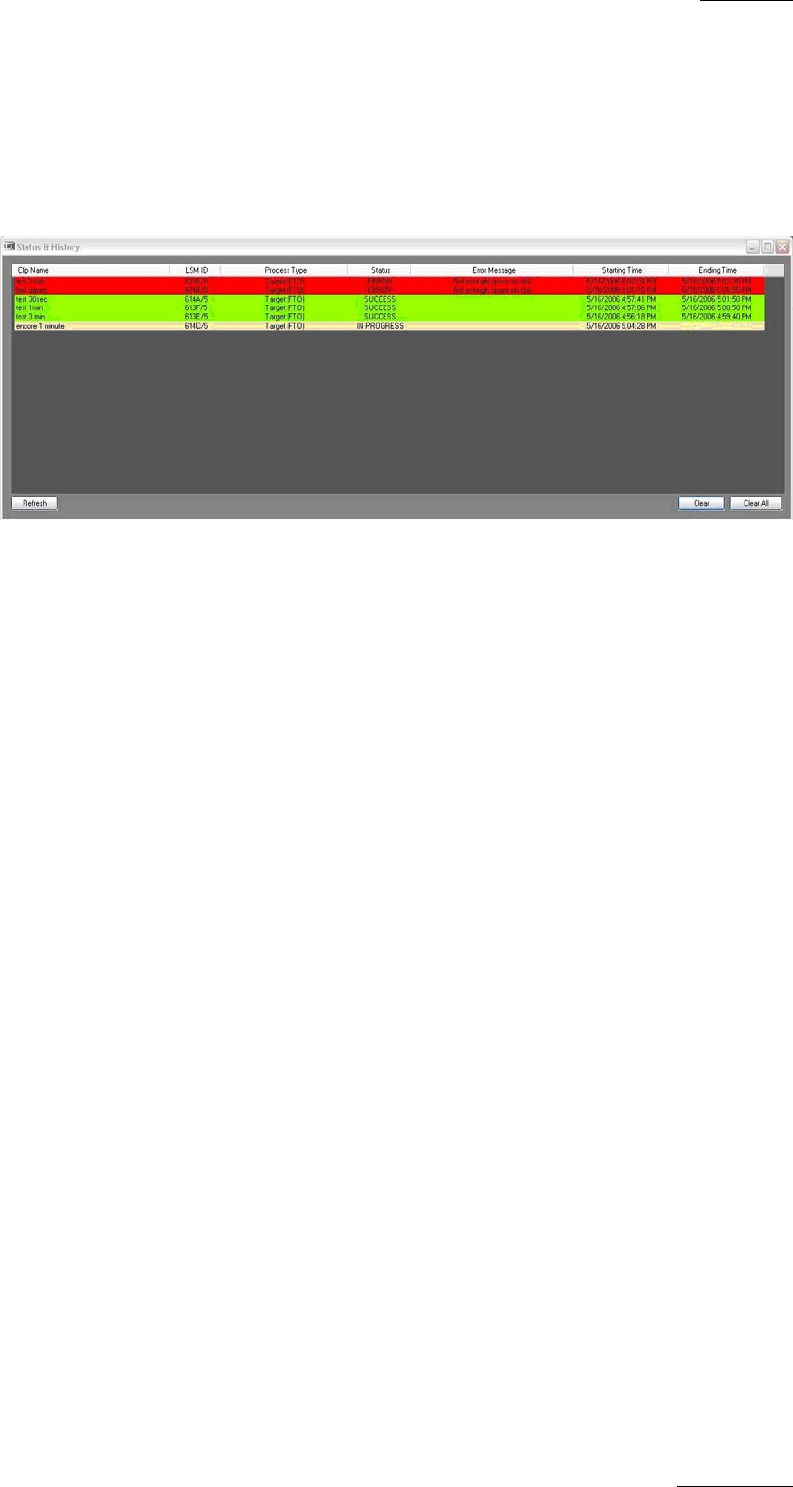

The history of all transfers can be displayed by selecting Tools >
View own clips status and history from the IP Director main
menu. This opens the Status and History window:
In this window, one line corresponds to one transfer. The
following information is displayed for each transfer:
• name and LSM ID of the clip transferred
• clip type
• clip status
• error message (in case an error occurred)
• timing information
The various fields are described in the following sections:
CLIP NAME AND LSM ID
These fields include the name and LSM ID of the clip which has
been transferred.
TRANSFER TYPE
The type of transfer can be on of the following:
Target
(Target Name)
The clip has been sent to a destination
folder (indicated by the target name) via a
Send To command.
Clean Edit
(Target Name)
The clip has been sent to an XStore
workstation (indicated by the target name)
running CleanEdit applications.
AVID TM
(Target Name):
The clip has been sent to an AVID system
through a Transfer Manager (indicated by
the target name).
