3.2.2 CLIPS TREE STRUCTURE

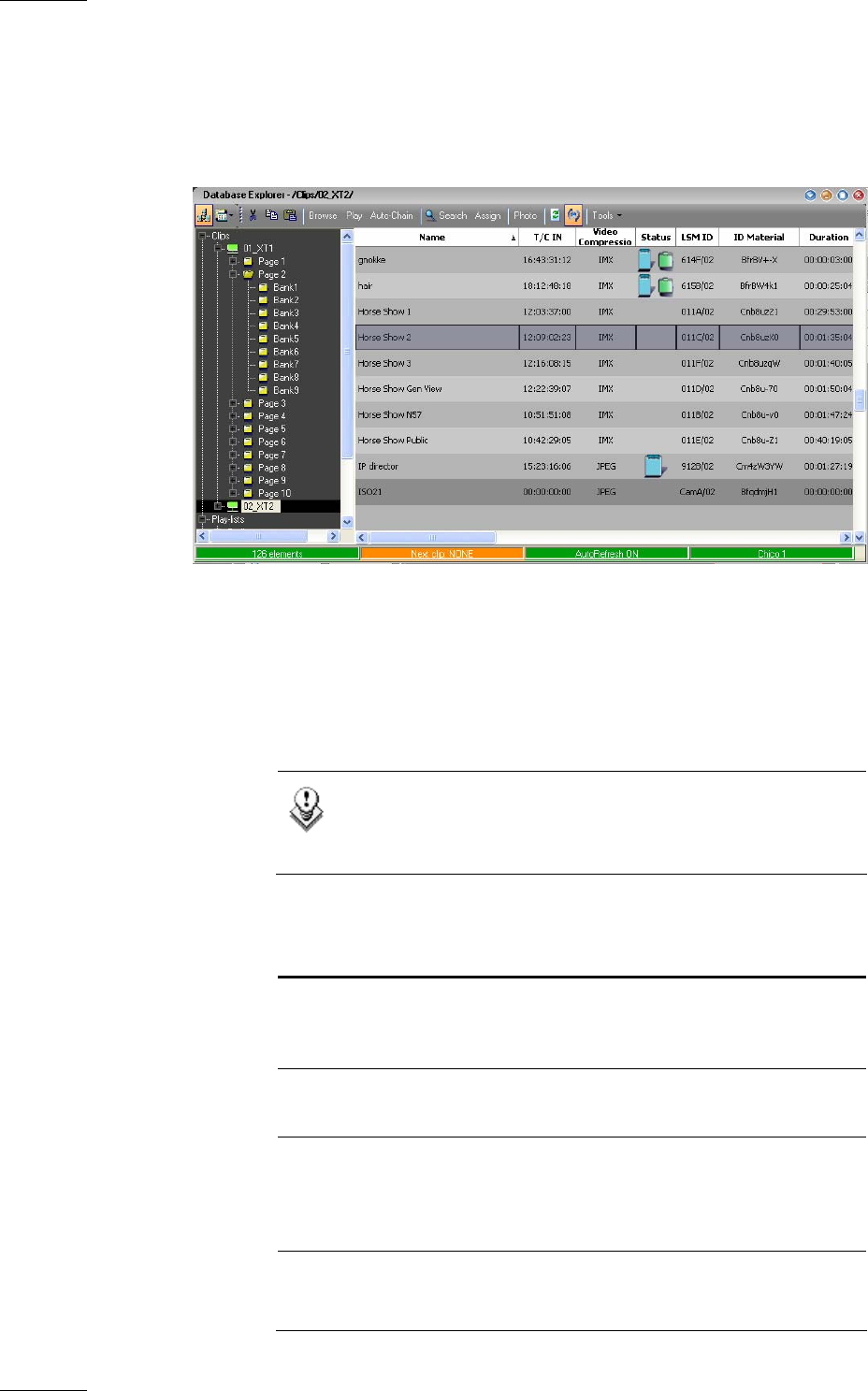

Within the clip tree structure of IP Director each XT machine can
be searched by filtering down in the tree from network number >
page > bank
3.2.3 CLIP DATA COLUMN HEADINGS
Each clip record in the result list is detailed in variable width
columns providing information about the stored clip. Some of the
details can be edited from here, others are for information. All
the headings can be used as filters when searching for Media.
Note
For details of how to hide or show the columns, refer to
the section 3.7.1 ‘Column Organizer’, on page 111.
Column Name Description
Thumbnail A reference frame from the clip can be
shown to visually identify the correct
material
Key Thumbnail A reference frame from the Key clip can be
shown relative to the Fill clip selected
Name A clip can be automatically named using a
configuration setting in the XT, added from
the XT keyboard, or from the IP Director
Control Panel when using it to create clips
LSM ID This is the clip number and location of the
media as explained in the ‘clip’ section
above. This number could change if the
