IP Director Version 4.3 – User Manual – Part 2: Logging and Browsing
EVS Broadcast Equipment
Issue 4.3.C
23

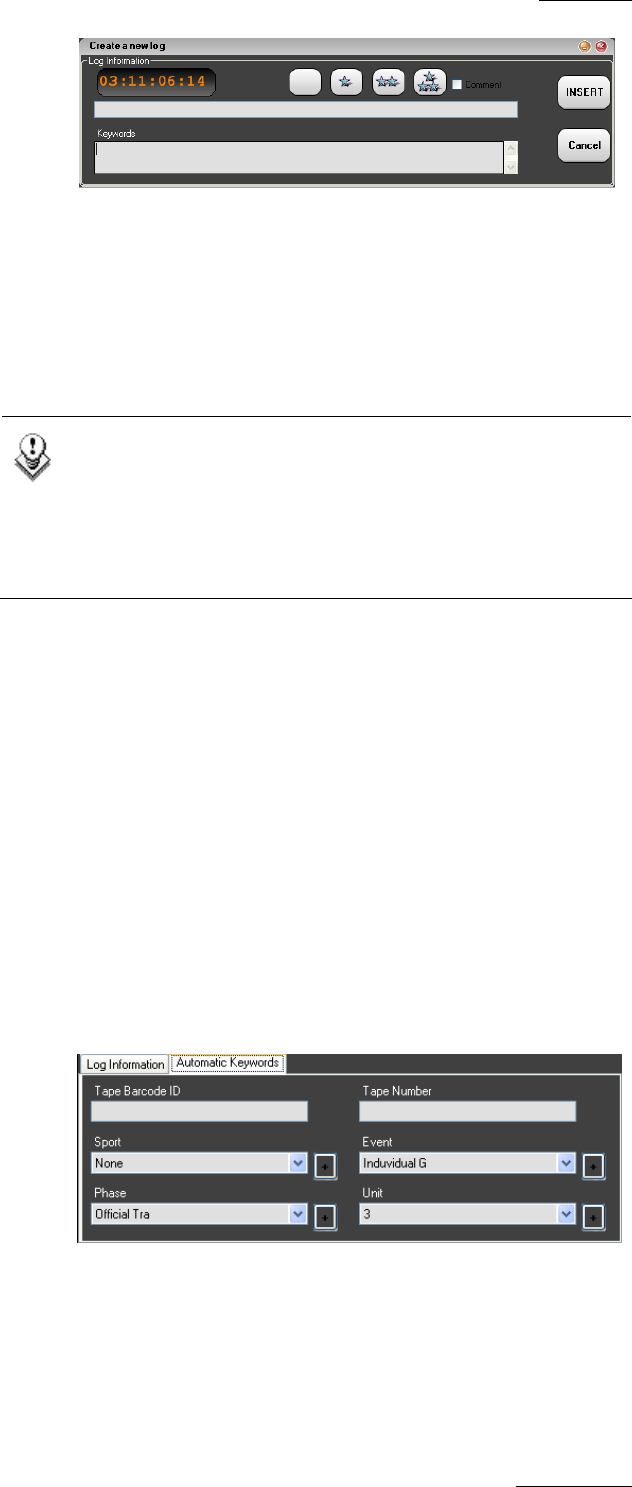

The Keyword Grid or Dictionary is now active as the
Apply button is highlighted in orange.
4. Select the keywords in the grid or dictionary.
The selected keywords are added to the log entry.
Note
In the Edit mode, selected from the Keyword Grid
menu, a grid layout type can be selected using the tab
or defined using the selection. The size of the window
and its screen position can be determined using normal
windows techniques.
1.6.4 HOW TO MODIFY AUTOMATIC KEYWORDS
ADDED TO LOG ENTRIES
If automatic keywords have been defined in the logging profile
associated with the log sheet, and the requested values selected
in the Automatic Keyword tab, the automatic keywords will be
added to all log entries of the log sheet. If no value is defined,
the column remains empty.
However, you can modify the values for these automatic
keywords at any time in the following way:
1. Before creating a new log entry on which you want the
automatic keywords to be modified, select the Automatic
Keywords tab:
2. Do one of the following:
• To modify a text field, select the value and type
the new value.
• To modify a drop-down list, select the new value
from the list.
