Issue 4.3.C
IP Director Version 4.3 – User Manual – Part 2 – Logging and Browsing
EVS Broadcast Equipment
20
1.5 IP LOGGER TOOLS MENU
1.5.1 PROTECT ALL MEDIA ASSOCIATED TO LOGS
Using the Protect All Media Associated to Logs command from
the Tools menu, the users ensure that all events logged are
within a clip on the relevant records. This will protect all media
associated to the entire log sheet.
Therefore clips can be made on all relevant recorders to include
the first event timecode (first log) and the last event timecode
(last log) on the relevant recorder trains. It will then be possible
to keep access to all relevant recorders A/V data for as long as
required after the event.
1.5.2 CLIP ASSOCIATION RULE
For a clip to be associated with the event timecode entered into
a log it must contain that same timecode. The guardbands of the
clip are also taken into consideration.

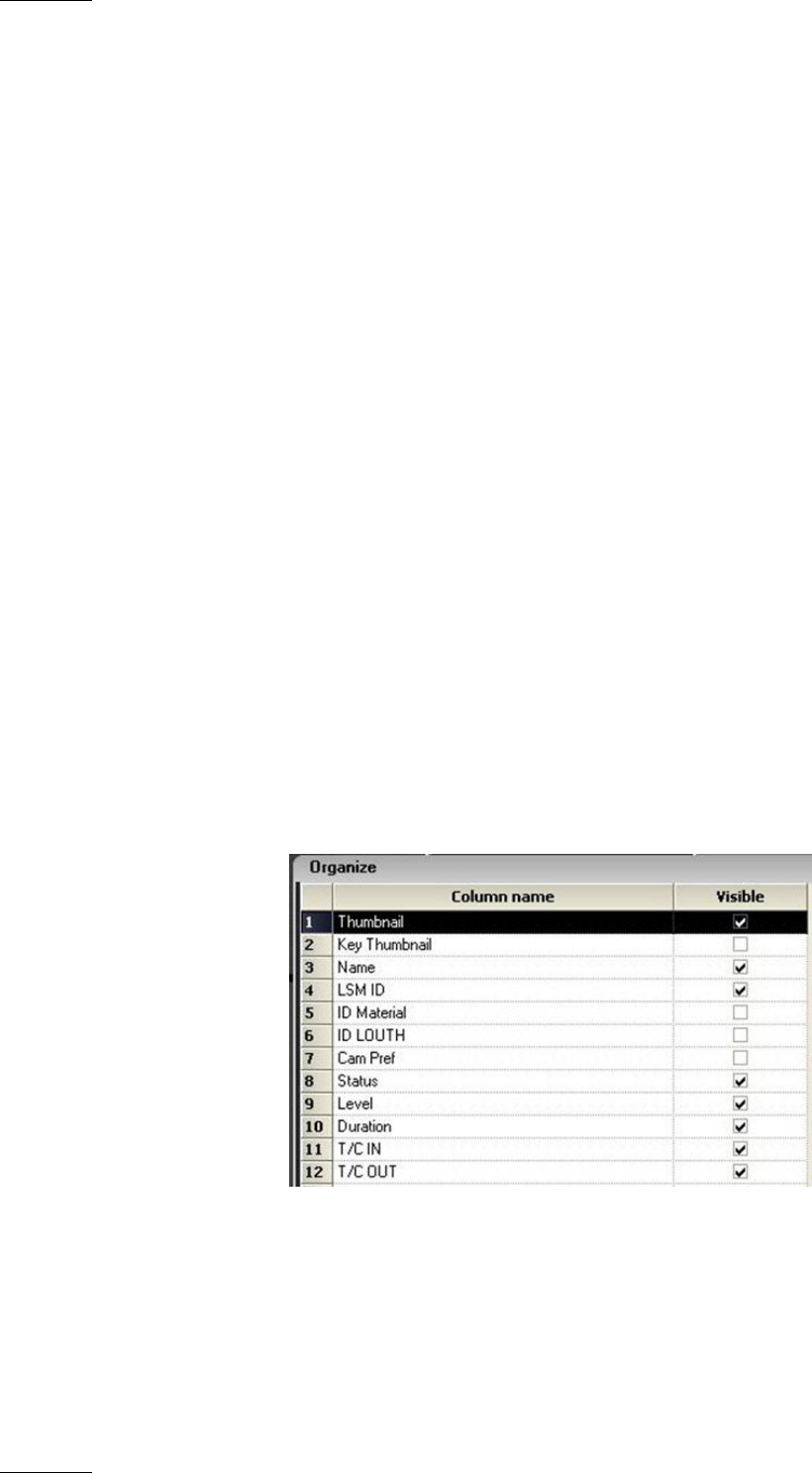

1.5.3 LOGGING COLUMN HEADINGS ORGANIZER
To add or remove the data columns visible in a Log sheet, use
the Organize command from the Tools menu
When the Visible check box corresponding to a column is
selected in the Organize window, the column will be displayed in
the log sheet. A default setting can be chosen using the Default
button on the window.
