IP Director Version 4.3 – User Manual – Part 2: Logging and Browsing
EVS Broadcast Equipment
Issue 4.3.C
113

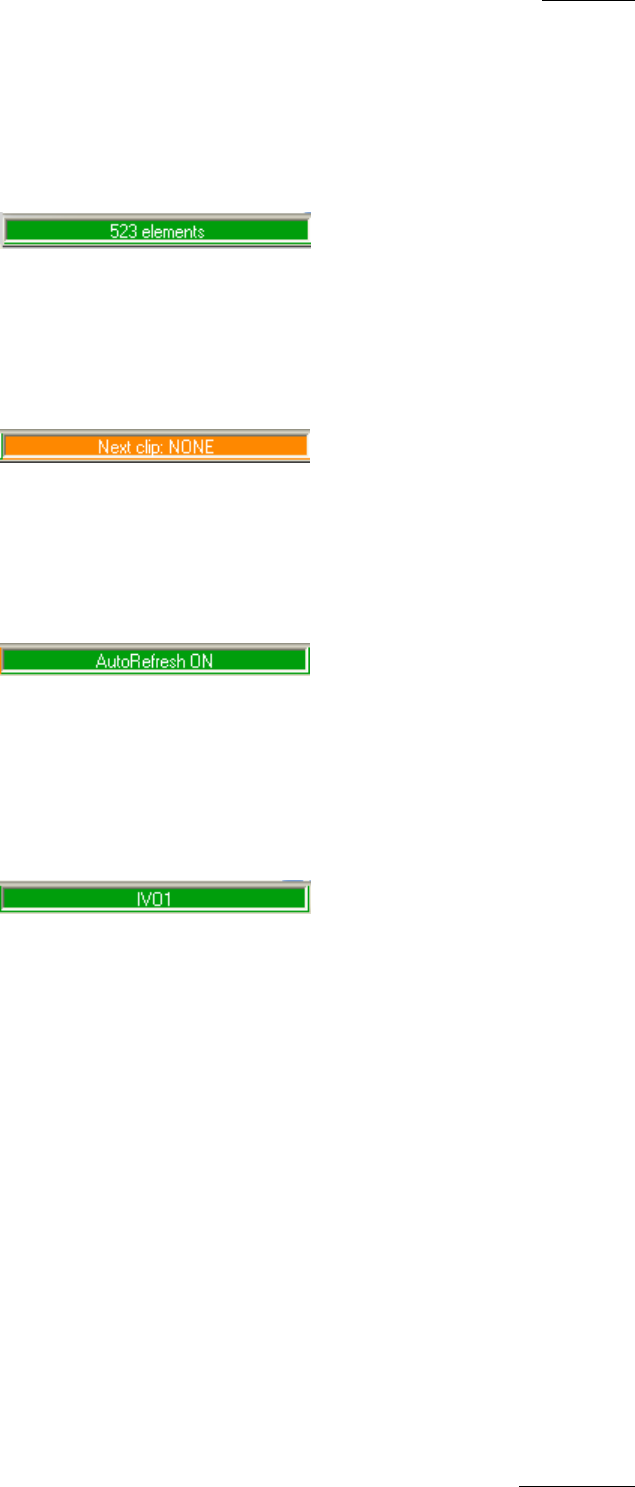

3.7.5 STATUS AREA
The Status Area contains four zones. These are described below.
ELEMENT NUMBER ZONE
The first zone from the left of the Status bar shows in green how
many elements are included in the result list of the Database
Explorer.
NEXT CLIP ZONE
The second zone from the left of the Status bar shows in green
the next clip to be played if the Auto-Chain mode is being used.
It has an orange background if the Auto-Chain mode is not used.
AUTO-REFRESH ZONE
The third zone from the left of the Status bar displays the
indication ‘Auto-Refresh ON’ if the Auto-Refresh option has been
activated in the menu bar. Otherwise, it has an orange
background.
ASSOCIATED CHANNEL ZONE
The fourth zone from the left of the Status bar shows in green
the associated Player channel if a Player channel is associated.
Otherwise, it has an orange background. For more information on
how to assign a Player channel, refer to section 3.7.6 ‘How to
As
sign a Player Channel to the Database Explorer’, on page 114.
