User guide

EVGA X58 CLASSIFIED3 Motherboard

Fan Connections

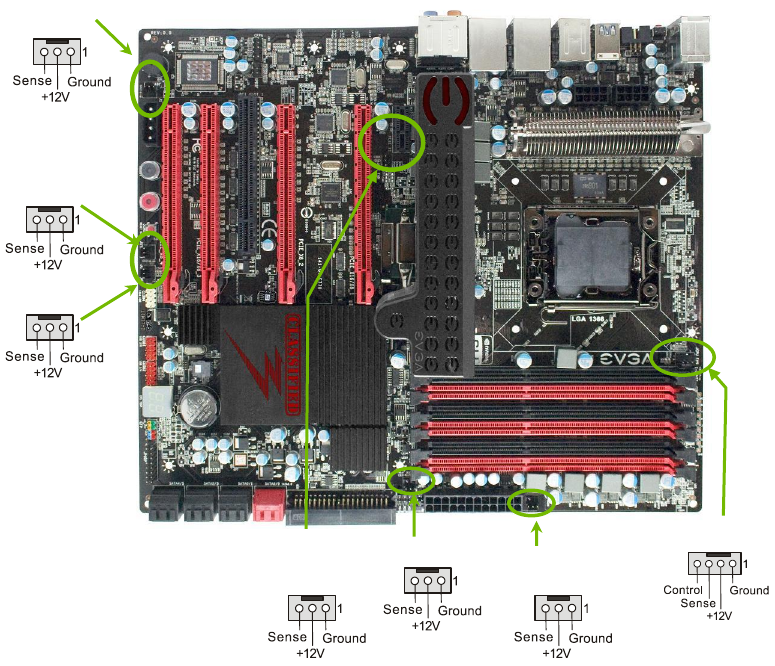

There are five fan connections on the motherboard. The fan speed can be

detected and viewed in the PC Health Status section of the CMOS Setup. The

fans are automatically turned off after the system enters S3, S4 and S5 mode.

Fan headers are rated for a maximum of 1 amp draw.

Note: the CPU fan cable can be either

a 3-pin or a 4-pin connector. Connect

a 3-pin connector to pins 1, 2, and 3

on the motherboard connector.

CPU Fan

Power Fan

AUX Fan

Chassis Fan

System Fan
