5.1 Surfaces
The Surfaces tab shows all Artist media controllers on your network and those
connected to your instance of EuControl.

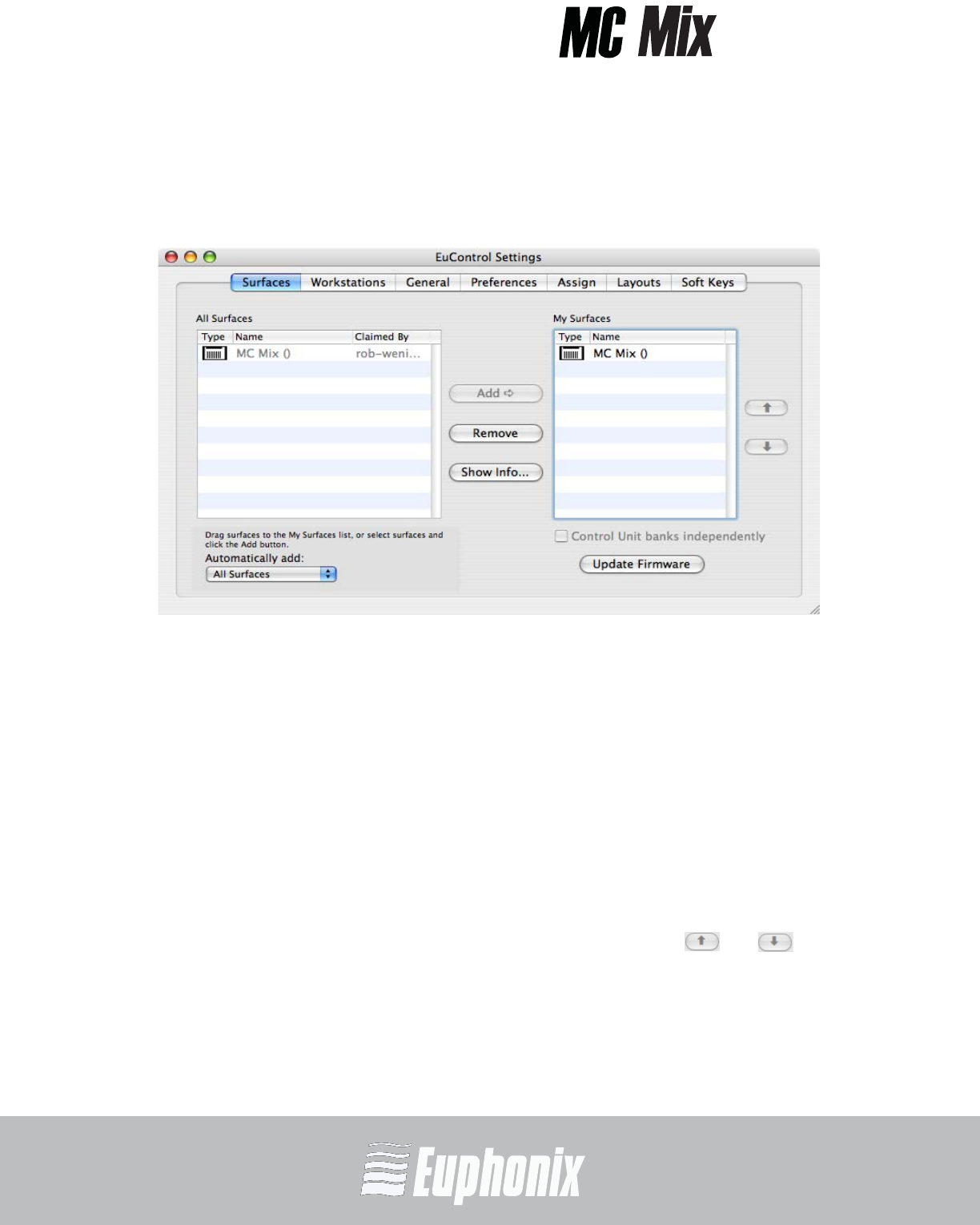

Figure 5-2 Surfaces tab
All Surfaces
All Surfaces shows all Artist media controllers on the network. An MC Mix shown
in light gray is already connected either to your own or another instance of Eu-
Control running on a different workstation. In both cases, it is not selectable.
My Surfaces
My Surfaces shows the Artist media controllers connected to your instance of Eu-
Control. If there is more than one MC Mix in this list, they are linked into a single
large surface.
The top-to-bottom order corresponds to the left-to-right order of the surfaces,
respectively. The leftmost MC Mix has fader strip 1. Use the and buttons
to reorder the list.
Each MC Mix can be renamed by double-clicking the existing name and typing a
new name.
