Euphonix MADI Converters Operation Manual MI715/MO705 Converters Features
9

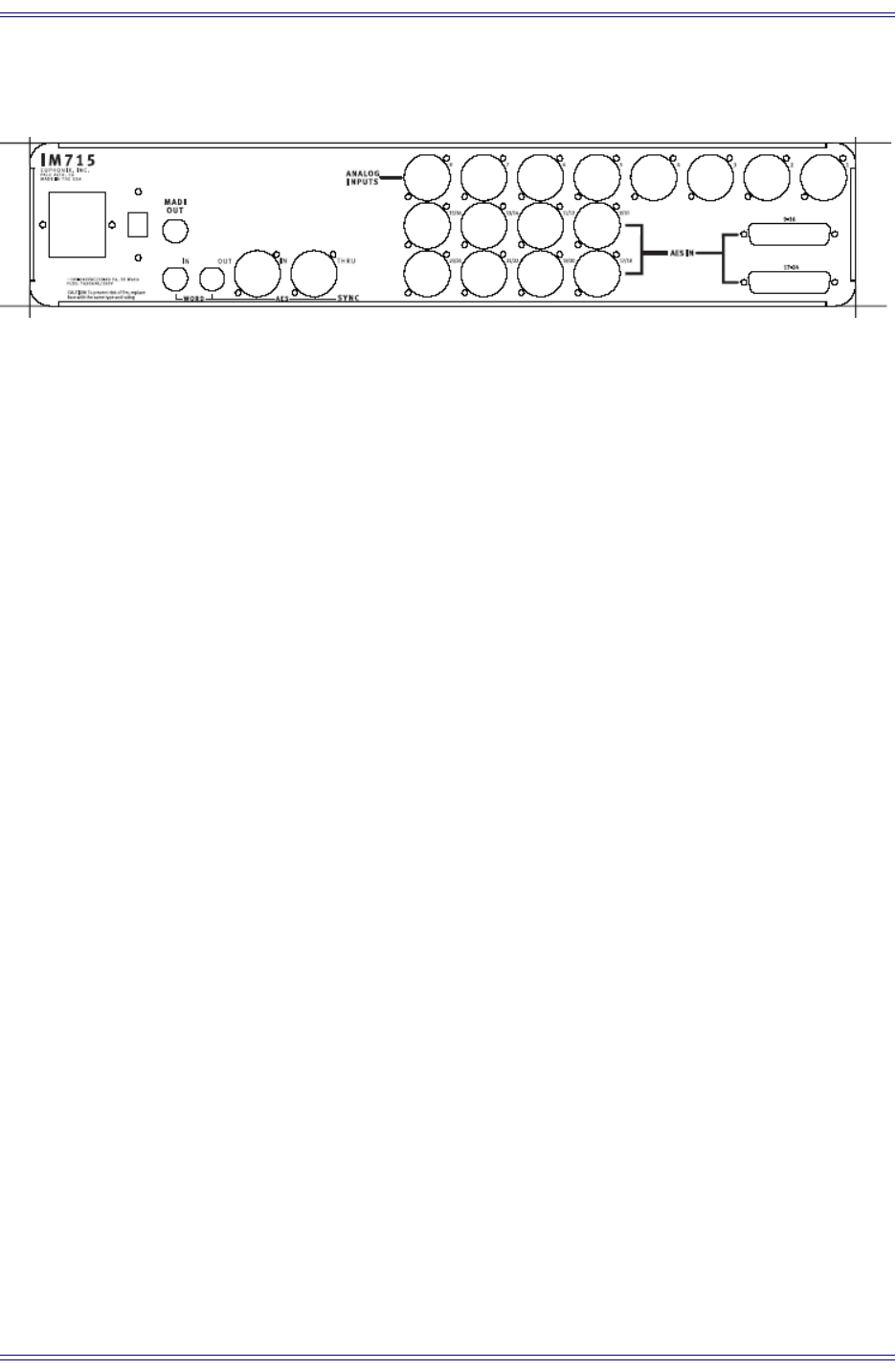

Ϯ͘ϰ MI715RearPanel
MA715RearPanel
InputVoltageSelector:Thisredswitchallowstheunittooperateineither110/115
VACor220/230/240VACenvironments.Afusemustalsobechangedfor220/230/240
VACoperation(seepage6).Unitsareshippedsetandfusedfor110/115VAC.
PowerConnector(IEC)andFuseTray:TheIECpowerconnectoracceptsstandardIEC
powercords.Thefusetraycontainsboththeactivefuseandasparefusefor220/230/
240VACoperation.Seepage6forinstructionsonhowtochangethefusefor220/
230/240VACoperation.
AnalogInputs(femaleXLR):8balanced,analoginputsonXLRconnectors.Inputsen‐
sitivityissetfromthefrontpanel.
AES/EBUDigitalInput(femaleXLR):8StereoAES/EBUdigitalinputonXLRconnectors
ParallelAES/EBUDigitalInputs(femaleDB25):Two8‐channeldigitalconnectors
functioninparallelwithXLRdigitalinputs,andshouldnotbeusedsimultaneously
AESSyncIn(femaleXLR):MasterclockinputfortheconverterwhenusingAESasSam‐
pleRateSource.
AESSyncThru(maleXLR):OutputsthesamesignalconnectedtoAESSyncIn.
WordIn(BNC):MasterclockinputfortheconverterwhenusingWordClockasSam ‐
pleRateSource.
WordOut(BNC):OutputsaWordclocksignalsynchronizedtotheSampleRate
Source.InthepresenceofanexternalWordclockinput,thisconnectorprovides
a regeneratedversionofthatinputsignal.Withoutanexternalsampleratesource,
thisconnectoroutputstheintern
allygeneratedclocksignal.
