Euphonix MADI Converters Operation Manual MI715/MO705 Converters Features

Ϯ͘ϱ MA705ReaƌPanel

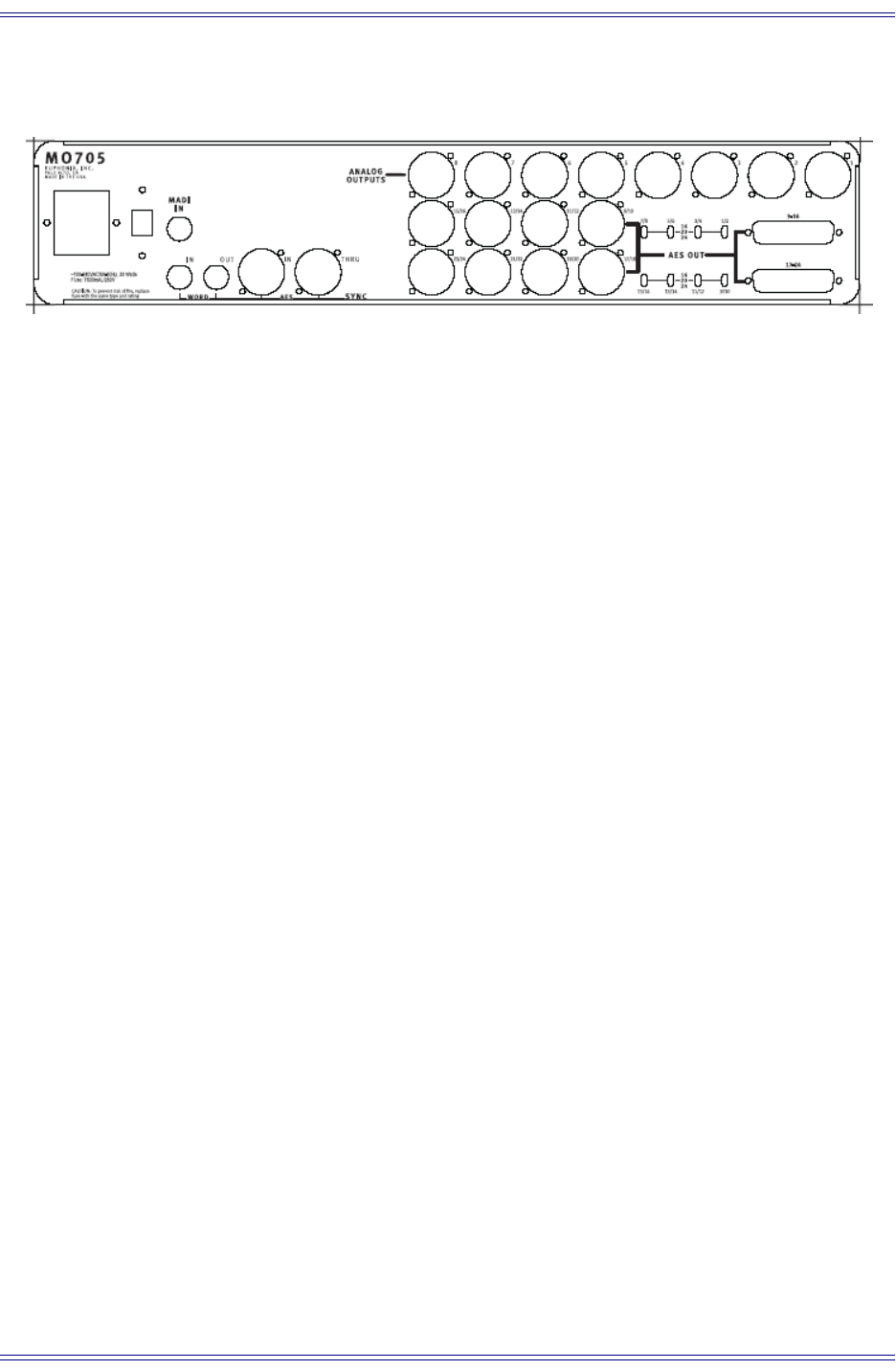

Figure 1-1 MA705RearPanel

InputVoltageSelector:Thisredswitchsetstheunittoeither110/115VACor220/

230/240VACenvironments.Afusemustalsobechangedfor220/230/240VACoper‐

ation(seepage6).Unitsareshippedsetandfusedfor110/115VAC.

PowerConnector(IEC)andFuseTray:TheIECpowerconnectoracceptsstandardIEC

powercords.Thefusetraycontainsboththeactiveandsparefuses.Seepage6to

learnhowtochangethefusefor220/230/240VACoperation.

AnalogOutputs(maleXLR):8balancedanalogoutputsonXLRconnectors.Outputlev‐

elissetfromthefrontpanel.

AES/EBUDigitalOutputs(maleXLR):8StereoAES/EBUdigitaloutputsononeXLR

connector.

ParallelAES/EBUDigitalOutputs(femaleDB25):Two8‐channeldigitalconnectors

functioninparallelwithXLRdigitaloutputsandthetwooutputsshouldnotbeused

simultaneously.SeeFigure3‐5onpage33forpinoutdiagram.

AESSyncIn(femaleXLR):MasterclockinputfortheconverterwhenusingAESasthe

SampleRateSource.

AESSyncThru(maleXLR):OutputsthesamesignalconnectedtoAESSyncIn.

WordIn(BNC):MasterclockinputfortheconverterwhenusingWordClockasSam ‐

pleRateSource.

WordOut(BNC):OutputsaWordClocksignalsynchronizedtotheSampleRate

Source.InthepresenceofanexternalWordclockinput,thisconnectorprovides

a regeneratedversionoftheinputsignal.Withoutanexternalsampleratesource,

thisconnectoroutputsaninternallygeneratedclocksignal.

MADIIn(BNC):Digitalaudiosignalinput.

• 1–8: analogoutput

• 9–24: AESoutputs
