Specifications

9

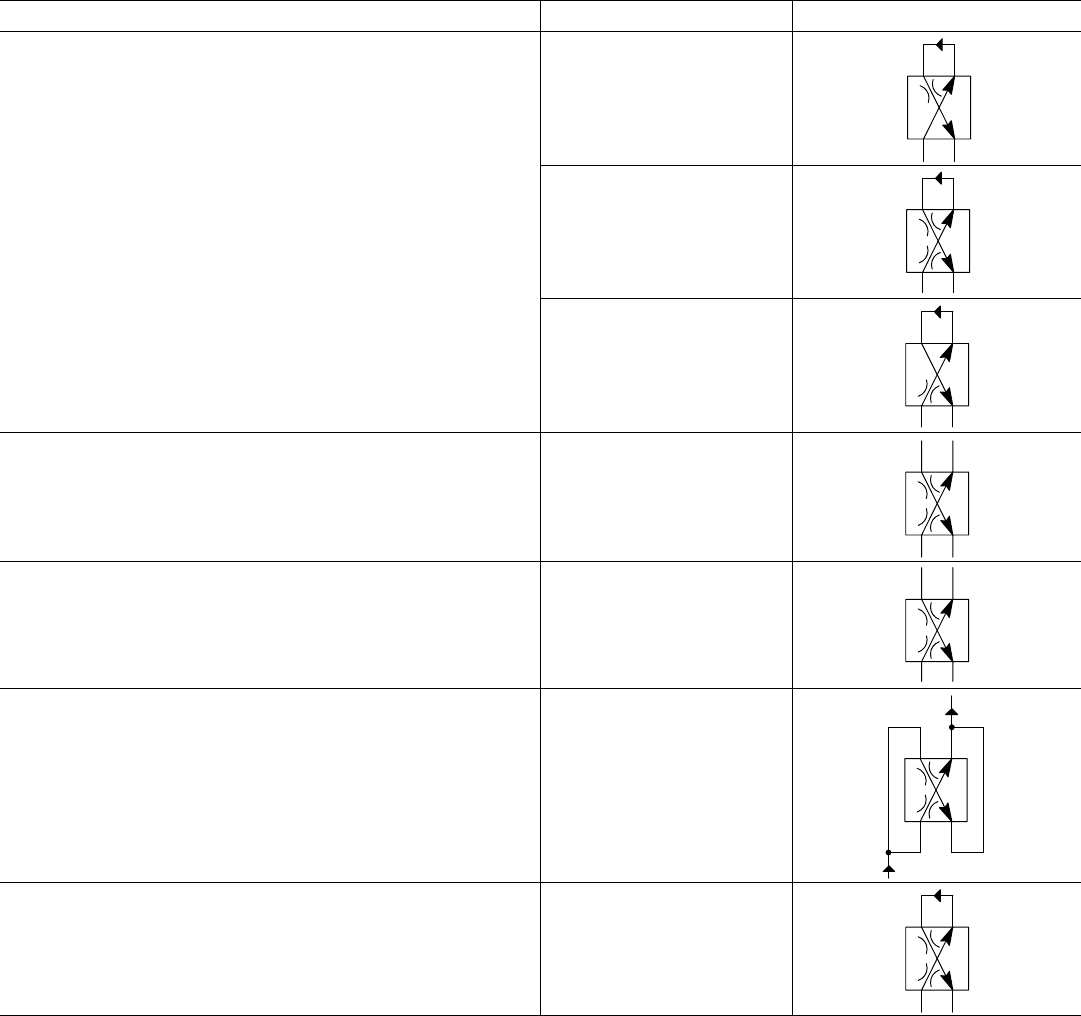

KDG4V-3S and KTG4V-3S Flow Paths
Valve/Flow Path Spool Symbol
2C08S
2C15S
2C19S
AB
PT
KDG4V-3S with Looped Flow Path.
P→A or B, plus B or A→T
2C08N
2C15N
2C19N
AB
PT
33C08A
33C15A
33C22A
AB
PT
KDG4V-3S with Single Flow Path.
P→A or B, or A or B→T
2C08N
2C15N
2C19N
AB
PT
KTG4V-3S with Single Flow Path.
P→A or B, or A or B→T
2B08N
2B15N
2B19N
AB
PT
KTG4V-3S with Parallel Flow Path.
P→B and A→T
2B08N
2B15N
2B19N
AB
PT
KTG4V-3S with Looped Flow Path.
P→A or B, plus B or A→T
2B08N
2B15N
2B19N
AB
PT
