Specifications

32

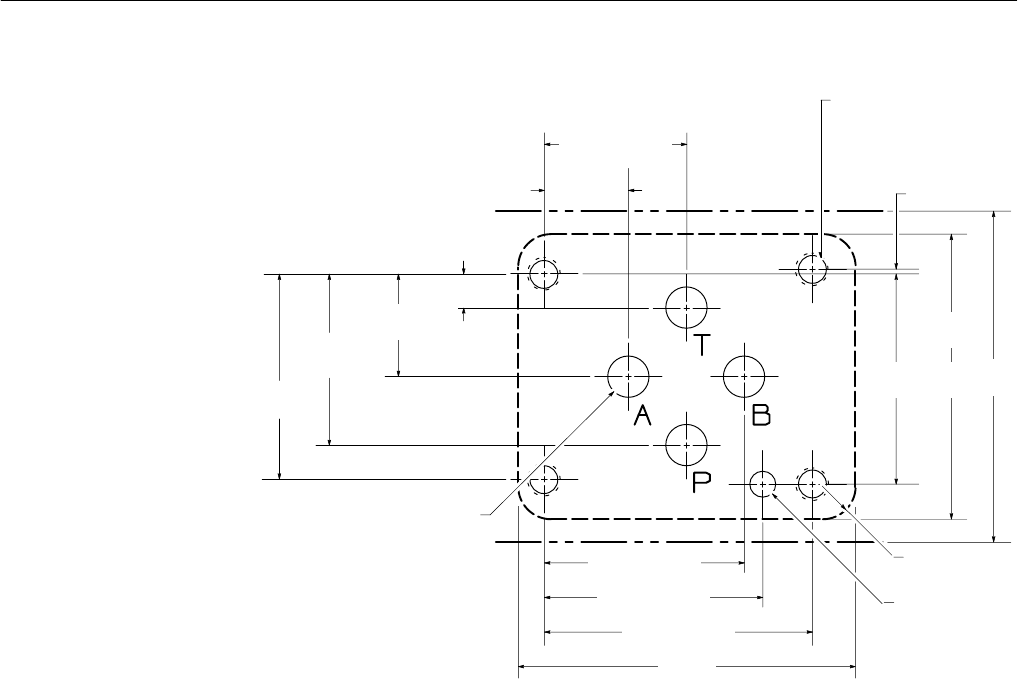

Mounting Requirements
12,70"0,20
(0.500"0.008)
5,10"0,20
(0.201"0.008)
0,75"0.10
(0.030"0.004)
M5-0.8-6H (.1900-24
UNC-2B) thread*
* Minimum thread depth is
1
1
/
2
× bolt diameter (D).
Recommended full thread depth
is 2 × D + 6 mm. This aids in
interchangeability of valves and
reduces number of fixing bolt
lengths. Recommended
engagement of fixing bolt thread
for ferrous mountings is 1
1
/
4
× D.
6,30
(0.248)
∅ max.
5,00
(0.197)
R max.
4,00"0,20
(0.157"0.008)
∅
locating pin hole
** Dimensions specifying area
within dotted lines are
minimum dimensions for
mounting surface. Corners of
rectangle may be radiused
as shown.
 Dimension is minimum
spacing distance between valve
and adjacent obstructions such
as wall or other valve.
Dimension is also minimum
distance from centerline to
centerline of two similar
mounting surfaces placed on
manifold block. Fixing holes are
at equal distances to dimension.
5,50"0,20
(0.610"0.008)
25,90"0,20
(1.020"0.008)
31,00"0,10
(1.220"0.004)
21,50"0,20
(0.848"0.008)
30,20"0,20
(1.188"0.008)
33,00"0,10
(1.299"0.004)
40,50"0,10
(1.594"0.004)
51,0**
(2.01)
50,0
(1.97)
31,75"0.10
(1.250"0.004)
43,0**
(1.69)
Mounting bolt torque:
4,5 to 6,0 Nm
(40 to 50 lb-in)
Mounting Surface
Mounting surface must be flat within
0,013 mm (0.0005 inch) and smooth
within 1,1 micrometer (45 microinch).
Mounting bolts should be grade 12.9
(SAE grade 7) or better.
Subplate and Bolt Kits
Valve subplates and mounting bolts are
available and must be ordered separately.
Example:
(1) KDG4V-3S-2C08S-M-FW-G5-60 valve
(1) KDG4V-3S-2C08S-MU1-H5-60 valve
(1) DGVM-3-10-S subplate
(1) BK590716 inch mounting bolt kit
(1) BK616452M metric mounting bolt kit
