Specifications

21

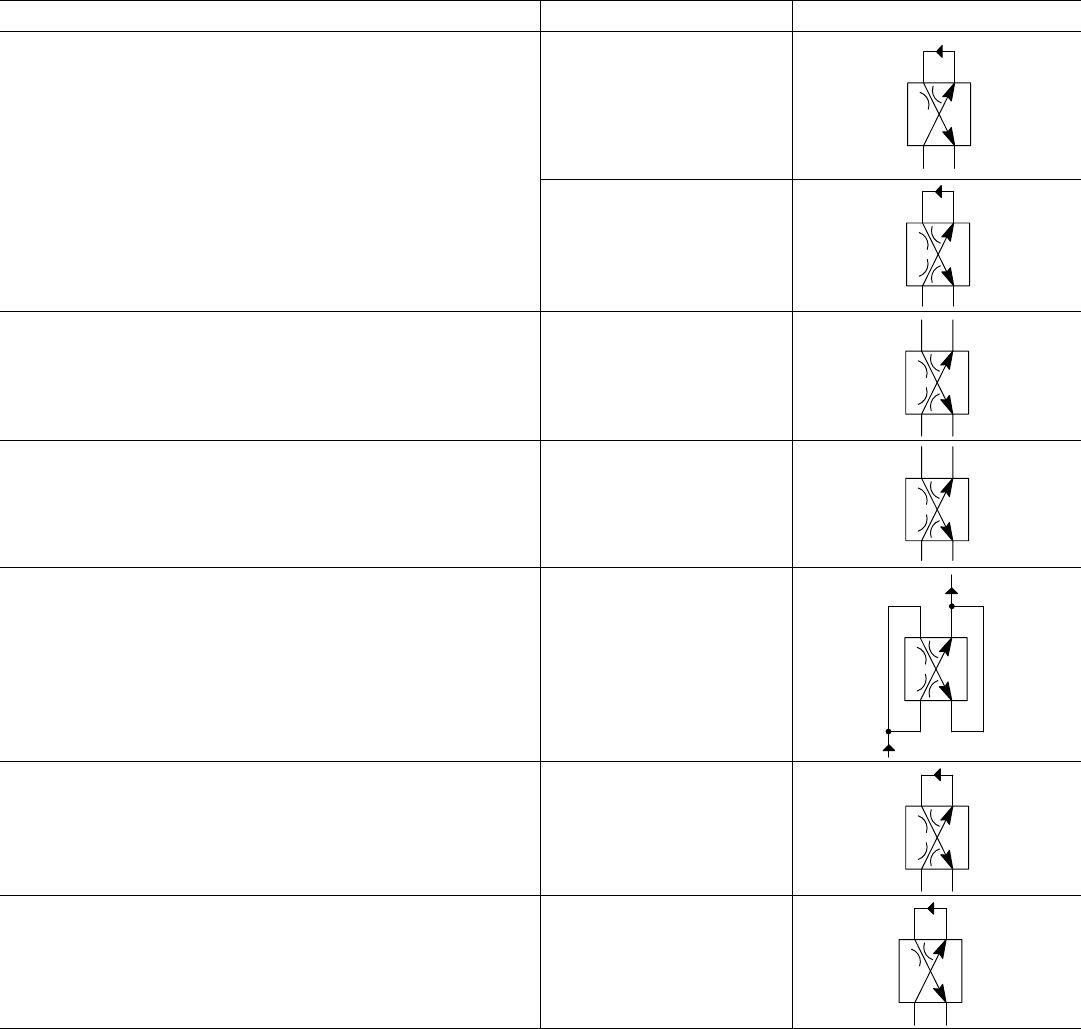

K(A)DG4V-3 and K(A)TG4V-3 Flow Paths
Valve/Flow Path Spool Symbol
K(A)DG4V-3 with Looped Flow Path.
P→A or B, plus B or A→T
**C28S
AB
PT
**C03F
**C07N
**C13N
**C20N
AB
PT
K(A)DG4V-3 with Single Flow Path.
P→A or B, or A or B→T
**C03F
**C07N
**C13N
**C20N
AB
PT
K(A)TG4V-3 with Single Flow Path.
P→A or B, or A or B→T
**B03F
**B07N
**B13N
**B20N
AB
PT
K(A)TG4V-3 with Parallel Flow Path.
P→B and A→T
**B13N
**B20N
AB
PT
K(A)TG4V-3 with Looped Flow Path.
P→A or B, plus B or A→T
**B03N
**B07N
**B13N
AB
PT
K(A)TG4V-3 with Looped Flow Path.
P→A or B, plus B or A→T
**B28S
AB
PT
