Specifications

17

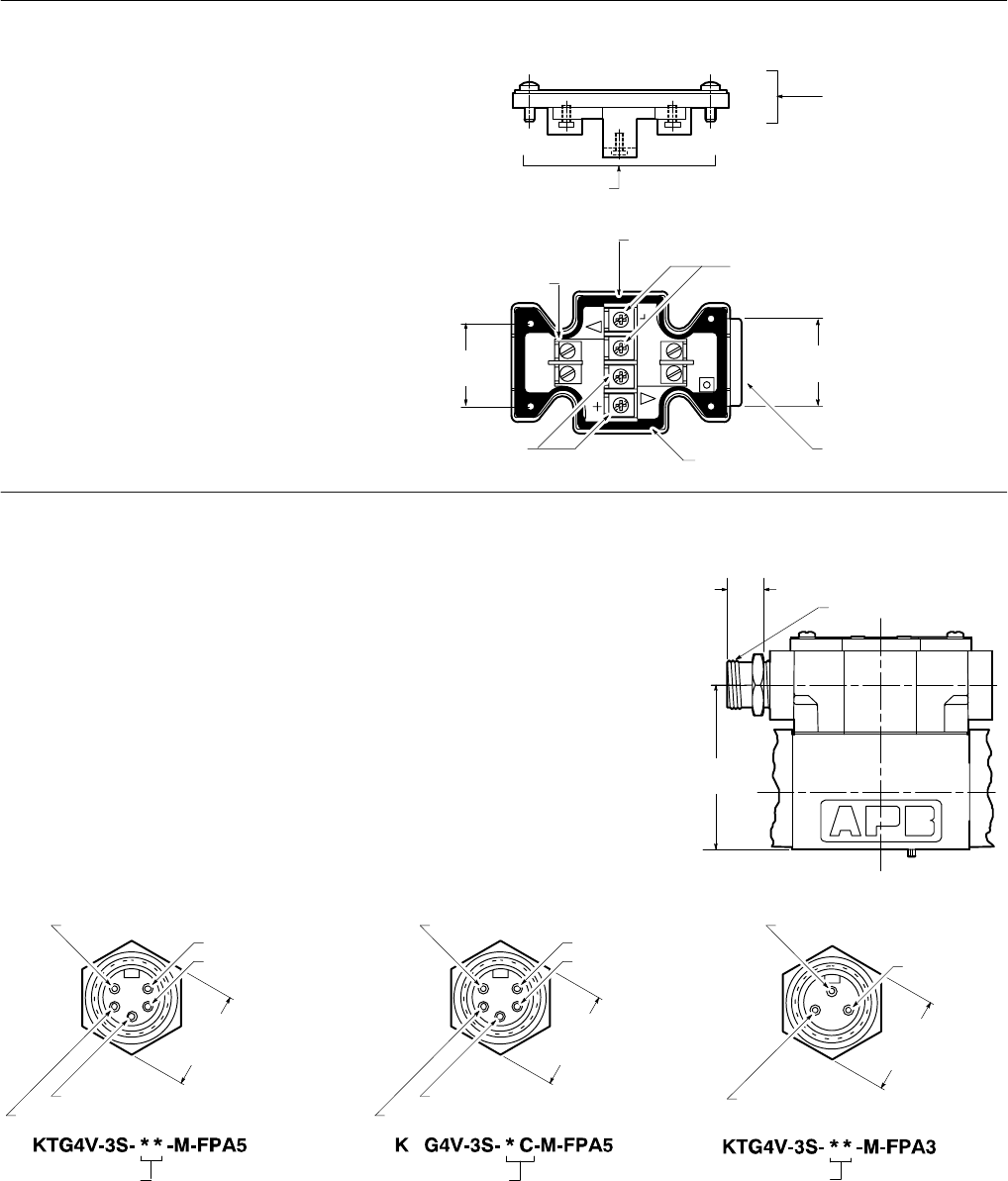

KDG4V-3S and KTG4V-3S Electrical Connections
Terminal Strip for FT (Flying Lead) Models
Dimensions in mm (inches)
Terminal strip (part number
890345) clips to cover and can be
field-fitted
M3 x 0,5-6H screws
(part number 186006) 2 each end
4 terminal screws M3 x 0,5-6H
(part number 02-113355)
Connections to solenoid A
(or B, according to model type)**
Connections to solenoid B
(or A, according to model type)**
Rubber
gasket
* Difference in dimensions helps ensure
correct orientation of nameplate to valve.
** For DC coils, positive + lead(s) must be
connected to terminal(s) marked +. When
using 3-wire incoming leads to double
solenoid valves (i.e. common neutral),
inner pair of terminals must be
interconnected.
Conduit box cover and
nameplate complete with
sealing gasket and 4 screws
Anti-rotation tab ensures
correct orientation of
cover to junction box
28,50*
(1.12)
30,00*
(1.18)
4
1
2
3
5
4
1
2
3
5
1
2
3
25,4
(1.00)
hex
25,4
(1.00)
hex
25,4
(1.00)
hex
NFPA Connector (Standard T.3.5.29-1980) for FPA3 and FPA5 Models
Dimensions in mm (inches)
The receptacle is a standard three-pole
or five-pole electrical connector with
shortened leads and terminals added.
The five-pole plug has four leads 101,6
(4.0) long and one lead 177,8 (7.0) long.
All wires have non-solder insulated
eyelet terminals. The green wire is used
for the ground connection (No. 8 screw
furnished). Valves are supplied
pre-wired.
68,65
(2.703)
15,2
(0.60)
3 – lead
to solenoid
1 – green lead (ground)
2 – lead to solenoid
4 – lead capped
1 – lead to solenoid
3 – green lead (ground)
5 – lead to solenoid
2 – lead capped
4 – lead to
solenoid A
1 – lead to solenoid B
3 – green lead (ground)
5 – lead to
solenoid B
2 – lead to solenoid A
0.875-16UN-2
A thd.
B models
F models
B models
F models
C models
WARNING
Electrical power must be disconnected
before removing or replacing this
receptacle.
Electrical connection is over solenoid A on
single solenoid models and over solenoid
B on dual solenoid models. See diagram
plate for solenoid B location.
Receptacle is pre-wired to solenoid
eyelets. Connection is made with No. 6
screws and nuts insulated with black
electrical tape.
D
