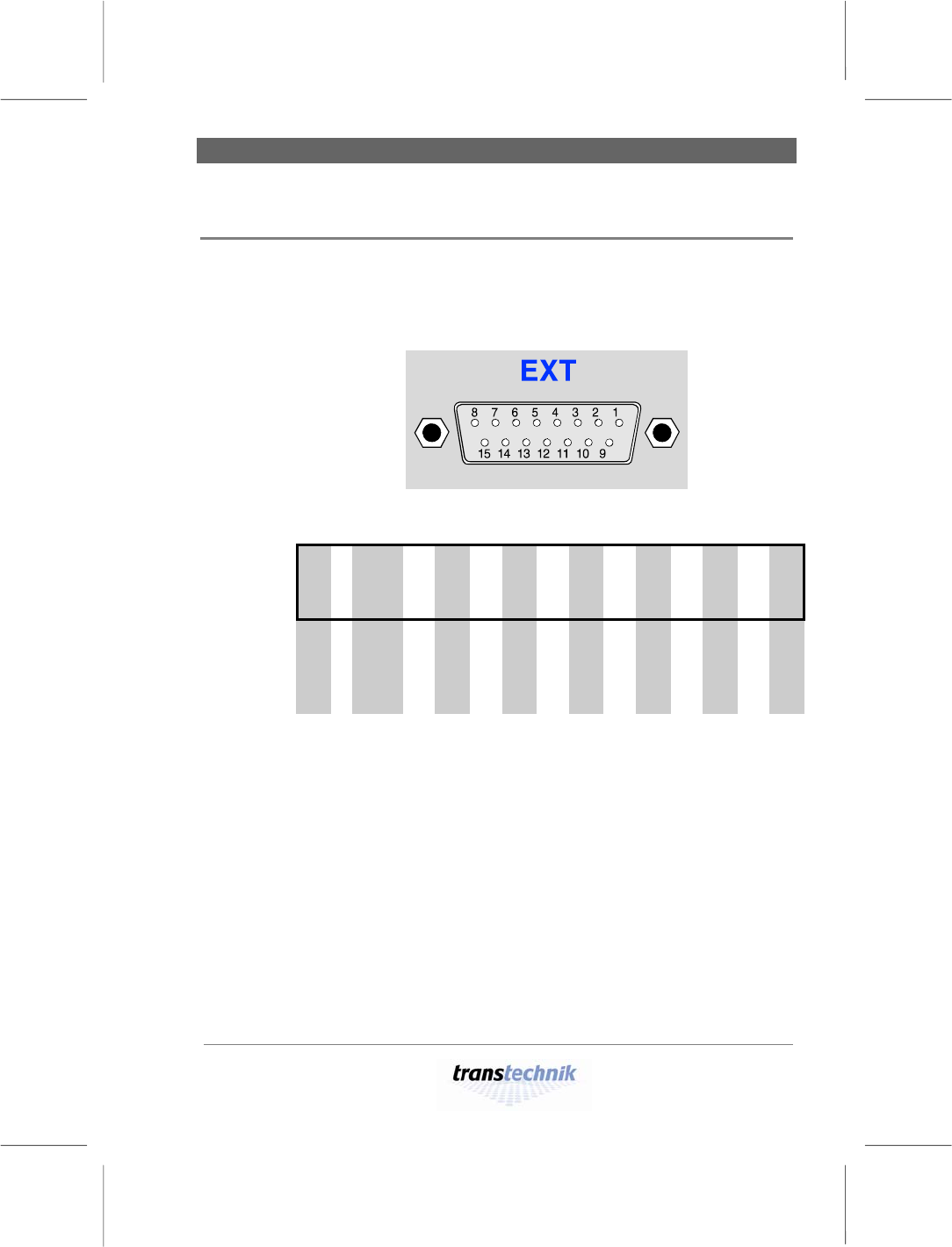

Pin assignment for the EXT socket
The 15-pin Submin-D socket EXT on the backplane of the dimmer unit
serves as the feed-in for analog control signals (12 channels, 0 – 10 V).
8 7 6 5 4 3 2 1
Pin
15 14 13 12 11 10 9
Channel
number
12
11
10
9
8
7
6
5
4
3
2
1
– – GND
