Providing stationary lighting Dimmer curves
Alex M
030430-150B
Alex_M_E_150C_A5.doc
– 31 –
Dimmer curves
The dimmers are controlled using characteristic curves. A curve assigns
each output level (e.g. 50%) to a specified 'real' dimmer level. The dimmer
curve can be used to modify the dimming behavior of a spotlight to the
given requirements (e.g. to come on when a particular threshold value is
achieved, unlike linear control).
All dimmer curves refer to the power output. Characteristic curve LI “linear”
thus means “linear power output”.
You can assign a specific dimmer curve to each dimmer channel.

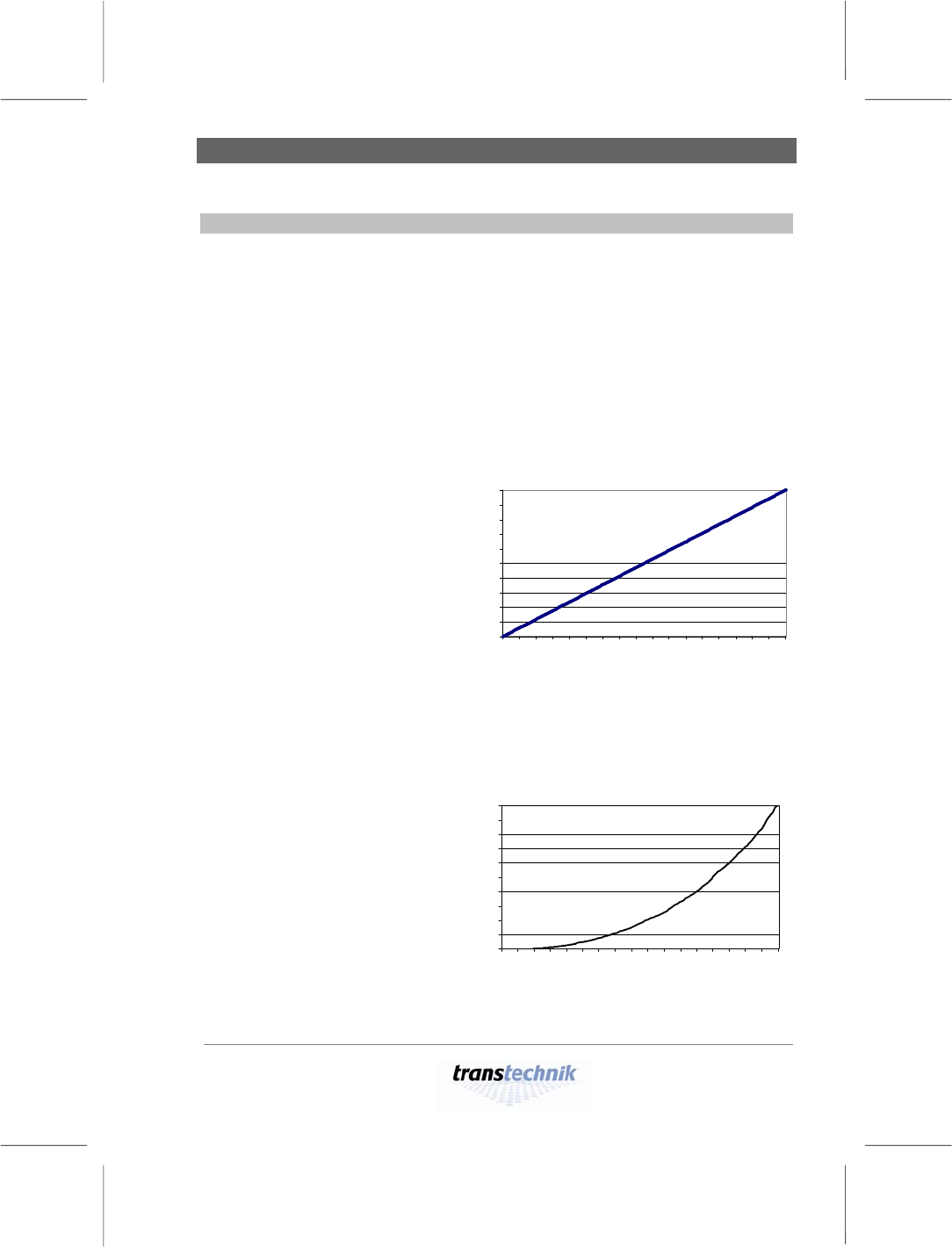

You can choose between five curves:
LI
Linear = linear power
output
0
10
20
30
40
50
60
70
80
90
100
1
16 31 46 61 76 91
106 121 136 151 166 181 196 211 226 241 256
Input
Output power (%)
SC
Halogen
Currently not implemented, behaves as LI = linear power output
EX
For fluorescent lamps
0
10
20
30
40
50
60
70
80
90
100
1
16 31 46 61 76 91
106 121 136 151 166 181 196 211 226 241 256
Input
Output power (%)
