Appliance Inlet Module X3130 for 2-pole circuit breaker 3130-FA.A
www.e-t-a.de
1815 5
1
Thermal Overcurrent Circuit Breaker 3130

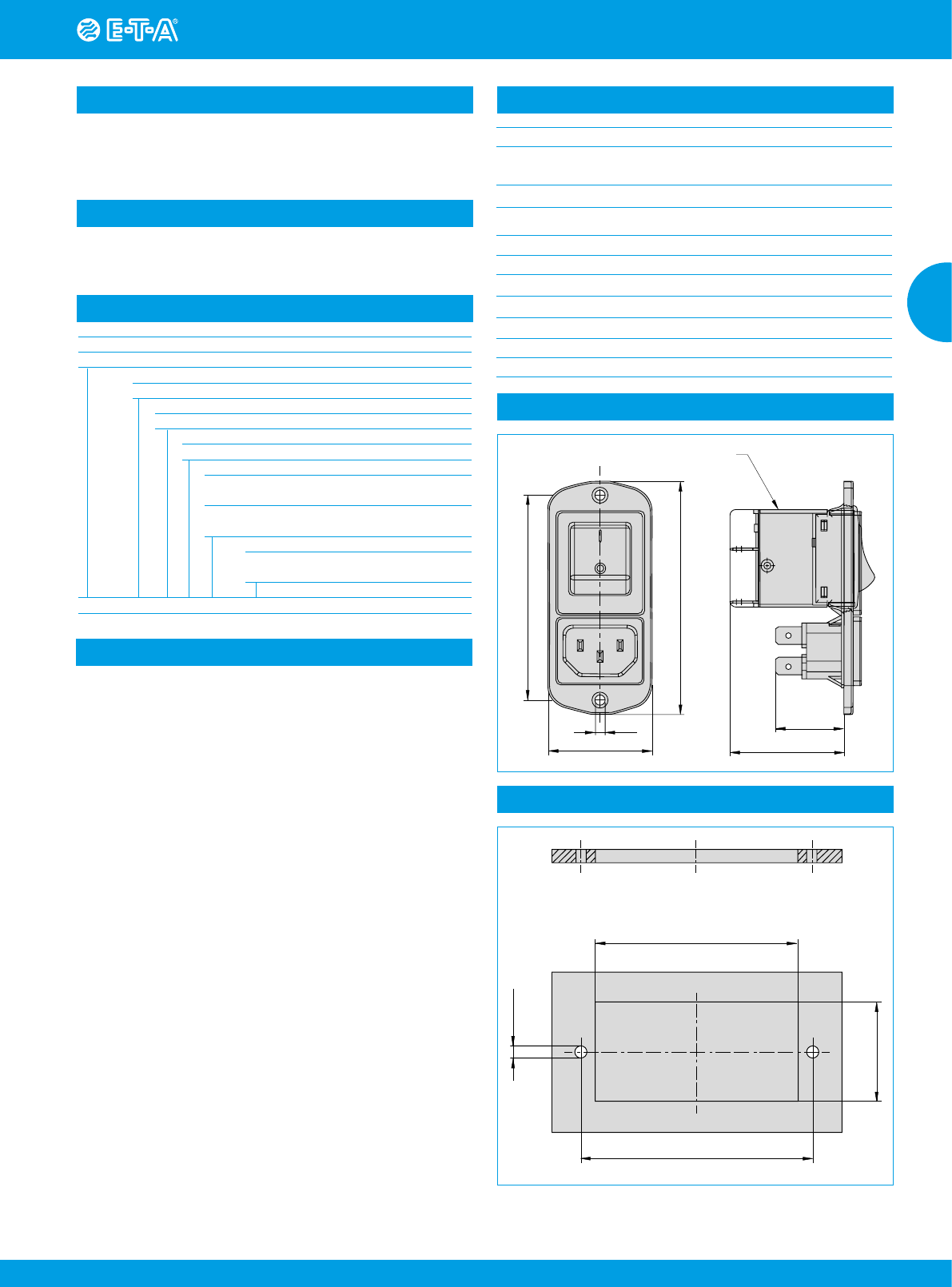

Dimensions
Mounting hole X3130
24
82
72
40.236.5
Circuit breaker 3130 (2-pole)
ø 3.3
I.2
LINE
I.II.3
72 ± 0.2
M3/Ø 3.3
31.6 ± 0.1
63.6 ± 0.15
2.50
2.83
Ø.130
1.24
Description
Typical applications
The appliance inlet module X3130 with double pole circuit breaker
3130-FA.A combines three functions within a single component: A C14
appliance inlet and rocker switch with resettable overcurrent protection;
screw mounting from the front or the rear.
Electrical medical apparatus, laboratory equipment, professional audio
equipment and office machines.
Ordering information
Type No.
X3130 Appliance inlet module for circuit breaker type 3130-FA.A
Module
A appliance inlet C14
Design
04 screw-type mounting
Accessories
00 without
Version
00 not wired; mounting position 3130:
I to connector
01 not wired; mounting position 3130:
0 to connector (standard)
Delivery condition
M module supplied with
circuit breaker FA.A
X3130 - A 04 00 01 - M Ordering example
Approvals
Technical data
Rated voltage AC 240 V
Rated current 10 A (IEC)
15 A (UL/CSA)
Ambient temperature -25°C ... 70°C
Number of poles L, N + ground
Cable cross section max. 1.5 mm
2
Degree of protection Class I
Mounting method screw-type mounting (front or rear)
Terminal design blade terminals DIN 46244 A6.3 x 0.8
Housing material thermoplastics, black UL94V-0
Appliance inlet C14 according to IEC/EN 60320-1, UL 498
Switch circuit breaker type 3130, 2-pole
ENEC, UL, CSA, CCC
