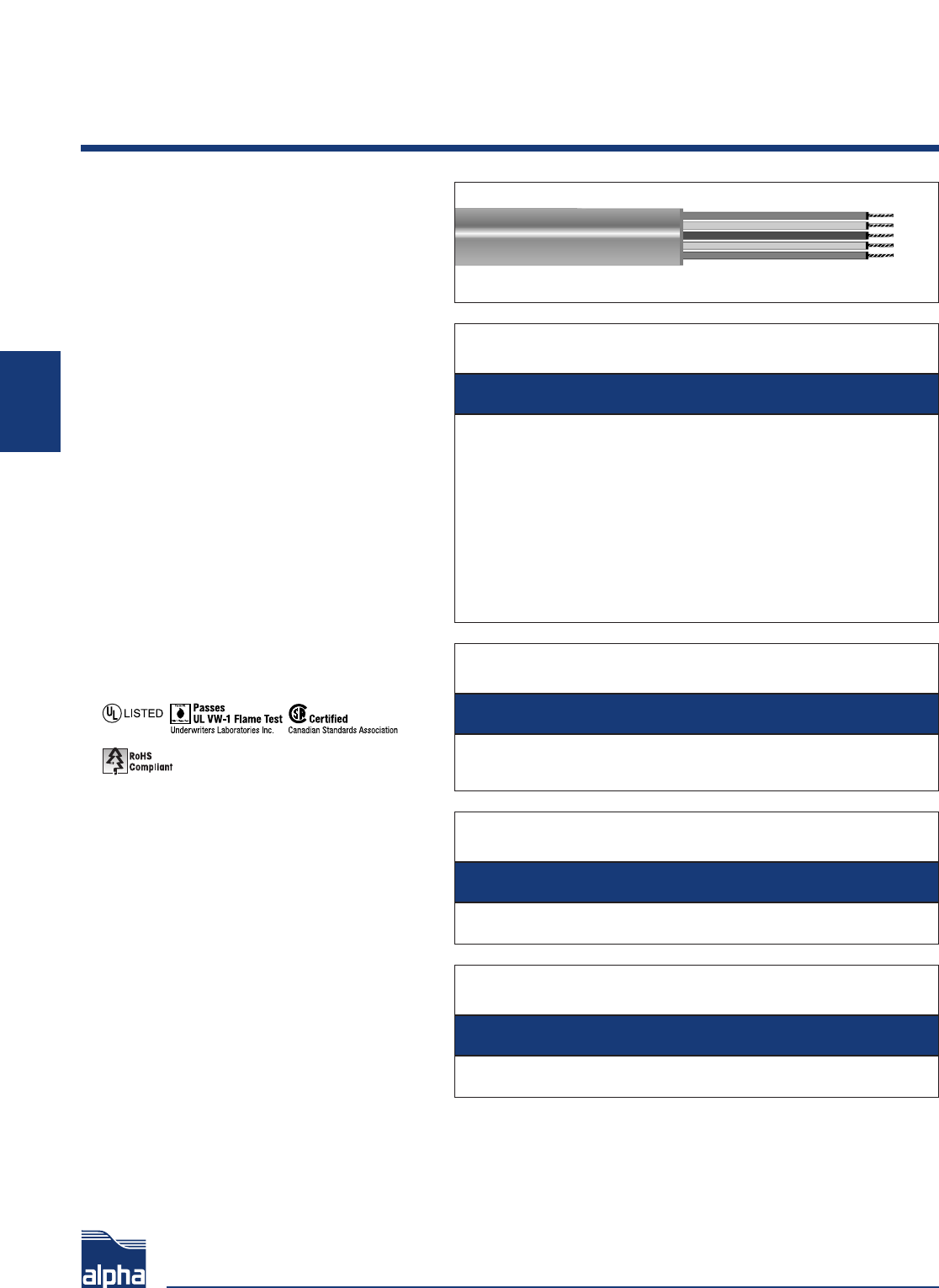

COMMUNICATION & CONTROL
MULTICONDUCTOR, UNSHIELDED
PVC/PVC
182
CHARACTERISTICS
OPERATING TEMPERATURE:
■
–20°C to 80°C – AWM
■
75°C – CM
VOLTAGE RATING:
■
300 Volt – CM
■
150 Volt – CL2
COLOR DESCRIPTION:
■
Color Code: Chart D Page 375
■
Jacket Color: Gray
PRODUCT DESCRIPTION:
■
Conductor: Stranded Tinned Copper
■
Insulation: Color-Coded PVC
■
Jacket: PVC
SPECIFICATIONS
■
UL Type CM, AWM 2509 (18 & 16 AWG)
■
UL Type CL2, (14 & 12 AWG)
■
CSA CMG FT4 (18 & 16 AWG)
■
CSA AWM I A/B, II A/B FT4 (14 & 12 AWG)
■
Passes UL Ver
tical Tray Flame Test
■
“C” Suffix Indicates CM or CL2 Rating as Applicable
■
RoHS Compliant
®
UL TYPE CM
UL AWM 2509, CSA CMG FT 4
RoHS COMPLIANT, 300 VOLT
AVAILABILITY
■
100 ft (30,5m), 500 ft (152m),
1000 ft (305m) put-ups
80°C 300V - UL 2509 - NEC TYPE CM
18 AWG
(0,81mm
2
),
16/30
(16x0,25mm), Insulation Thickness:
0.016"
(0,41mm)
Alpha No. of Jacket Thickness Diameter
Part No. Cond. Inches mm Inches mm
1897C 2 0.020 0,50 0.20 5,0
1898C 3 0.020 0,50 0.21 5,3
1898/4C 4 0.020 0,50 0.24 6,1
1898/5C 5 0.020 0,50 0.26 6,6
1898/6C 6 0.020 0,50 0.29 7,4
1898/7C 7 0.020 0,50 0.29 7,4
1898/8C 8 0.025 0,63 0.31 8,0
1898/9C 9 0.025 0,63 0.34 8,8
1898/10C 10 0.025 0,63 0.37 9,4
1898/12C 12 0.025 0,63 0.38 9,8
1898/15C 15 0.030 0,76 0.44 11,3
1898/19C 19 0.030 0,76 0.47 11,9
1898/25C 25 0.035 0,88 0.56 14,1
80°C 300V - UL 2509 - TYPE CM
16 AWG
(1,31mm
2
),
19/0.0117
(19x0,29mm), Insulation Thickness:
0.016"
(0,41mm)
Alpha No. of Jacket Thickness Diameter
Part No. Cond. Inches mm Inches mm
1899C 2 0.020 0,50 0.22 5,7
1899/3C 3 0.020 0,50 0.24 6,3
1899/4C 4 0.020 0,50 0.27 6,9
80°C 300V - UL TYPE CL2
14 AWG
(2,08mm
2
),
41/30
(41x0,25mm), Insulation Thickness:
0.020"
(0,50mm)
Alpha No. of Jacket Thickness Diameter
Part No. Cond. Inches mm Inches mm
1891C 2 0.020 0,50 0.26 6,6
1891/3C 3 0.020 0,50 0.28 7,1
80°C 300V - UL TYPE CL2
12 AWG
(3,31mm
2
),
65/30
(65x0,25mm), Insulation Thickness:
0.020"
(0,50mm)
Alpha No. of Jacket Thickness Diameter
Part No. Cond. Inches mm Inches mm
1892C 2 0.020 0,50 0.30 7,6
1892/3C 3 0.020 0,50 0.32 8,1
