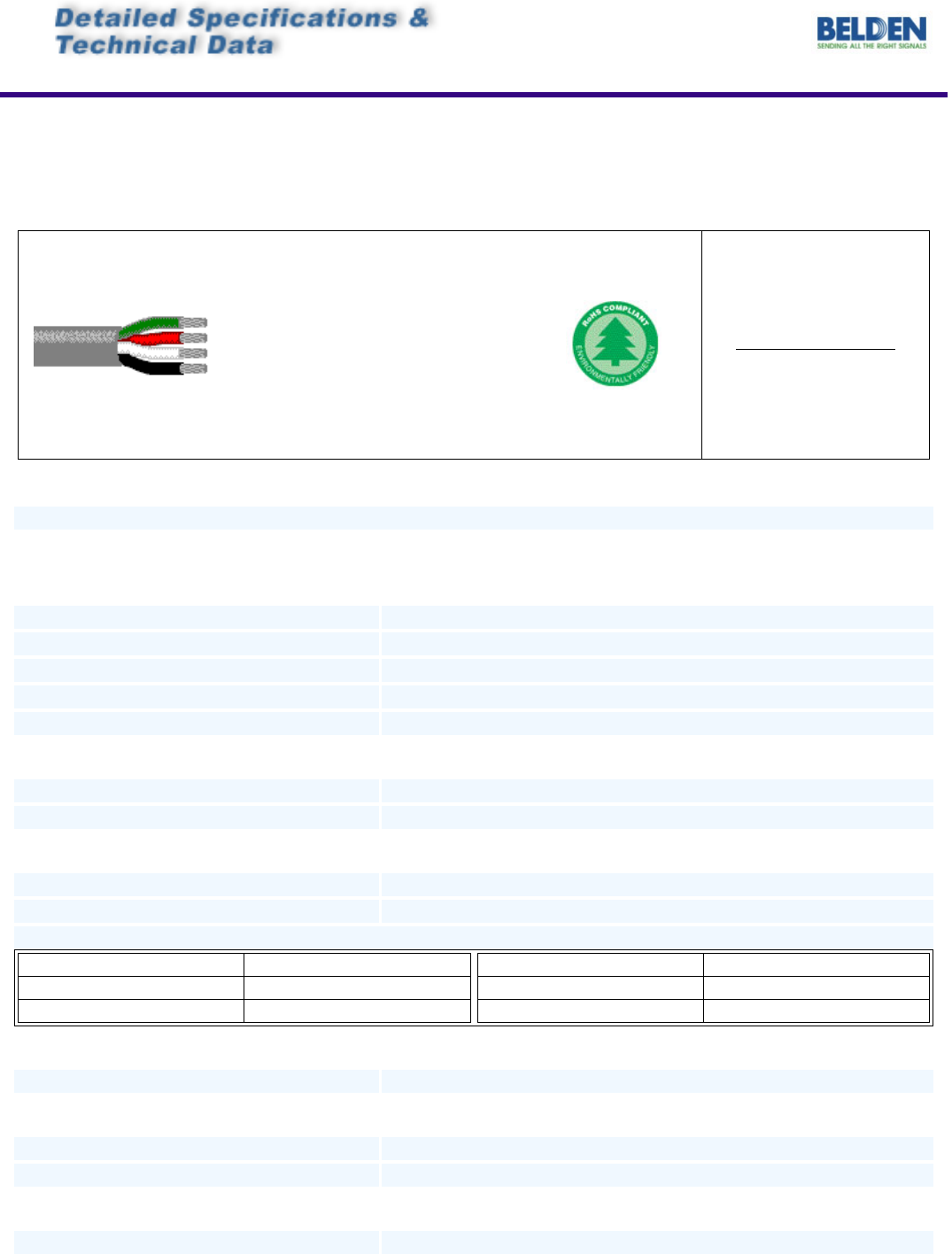

8489 Non-Paired - Audio, Control and Instrumentation Cable
For more information please
call
1-800-Belden1
See Put-ups and Colors
Related Documents : No. 1.pdf
Description:
18 AWG stranded (19x30) tinned copper conductors, conductors cabled, PVC insulation, PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 4
Total Number of Conductors 4
AWG 18
Stranding 19x30
Conductor Material TC - Tinned Copper
INSULATION:
Insulation Material PVC - Polyvinyl Chloride
Nom. Insulation Wall Thickness .017 in.
OVERALL CABLING:
Overall Cabling Lay Length 3 in.
Overall Cabling Twists/ft. 4
Overall Cabling Color Code Chart :
Number Color
1 Black
2 White
Number Color
3 Red
4 Green
OUTER SHIELD:
Outer Shield Material Unshielded
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness .032 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .257 in.
MECHANICAL CHARACTERISTICS:
