Maintenance of the We.R™ System
252
We.R
™
System User Guide
5.1.10.1. Dismounting the Universal Transmitter
There is a need to dismount the Universal Transmitter (Transmitter unit only) to allow
replacement of the battery. To dismount the Universal Transmitter:
1. Insert a flat screw driver (or coin) into one of the edge slots as demonstrated in Figure 213
below.
2. Twist it to raise the cover (body) edge.
3. Pull the body strait out of the base’s shoulders.

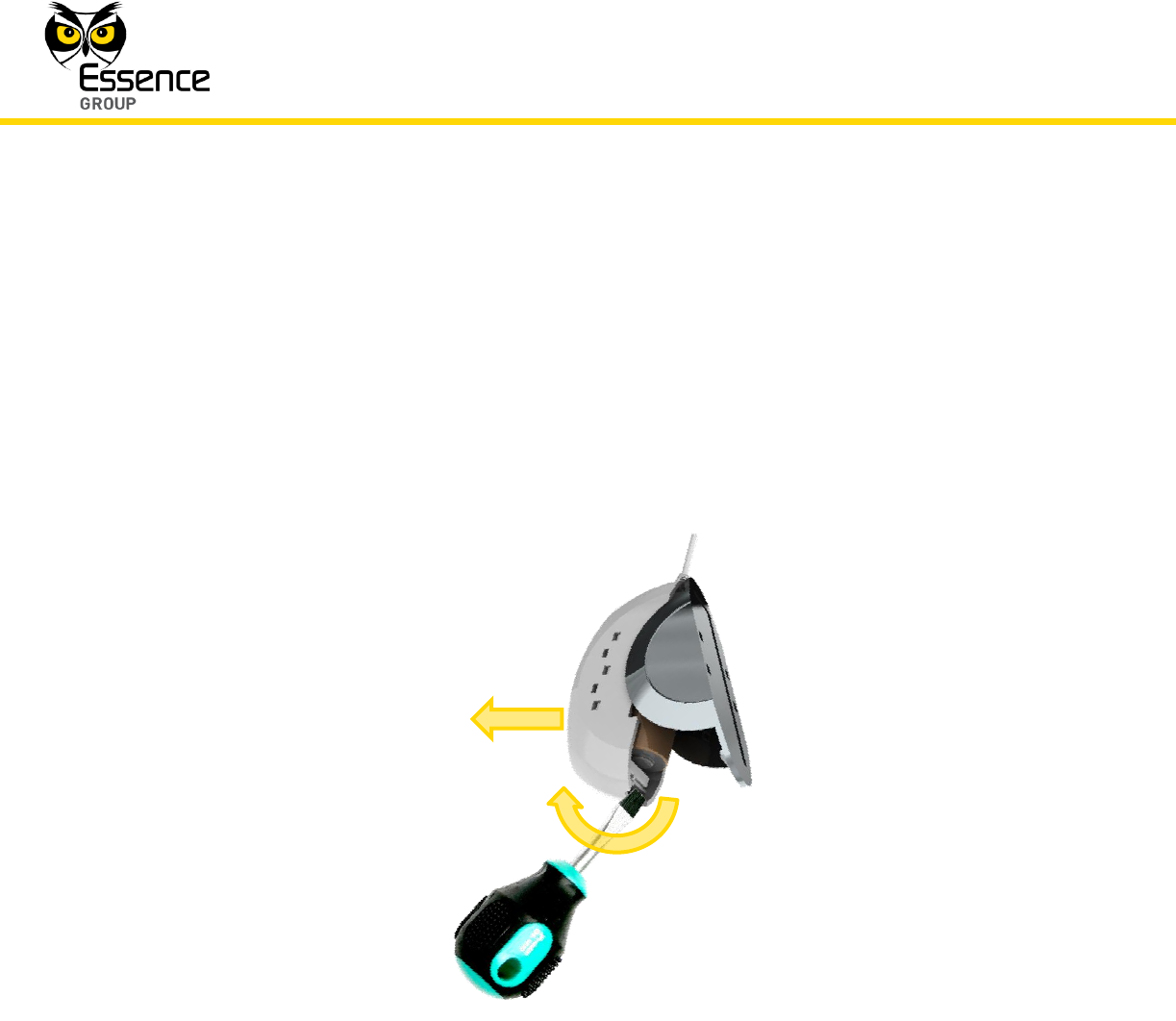

Figure 213: Dismounting the Universal Transmitter’s Transmitter Unit
5.1.10.2. Removing the Old Battery
Once opened, the Universal Transmitter’s battery is free to be removed out of the case.
Apply slight pressure on the battery towards the negative (–) pole to ease the release of the
battery.
