User Guide Part 8

Maintenance of the We.R™ System
We.R
System User Guide
247

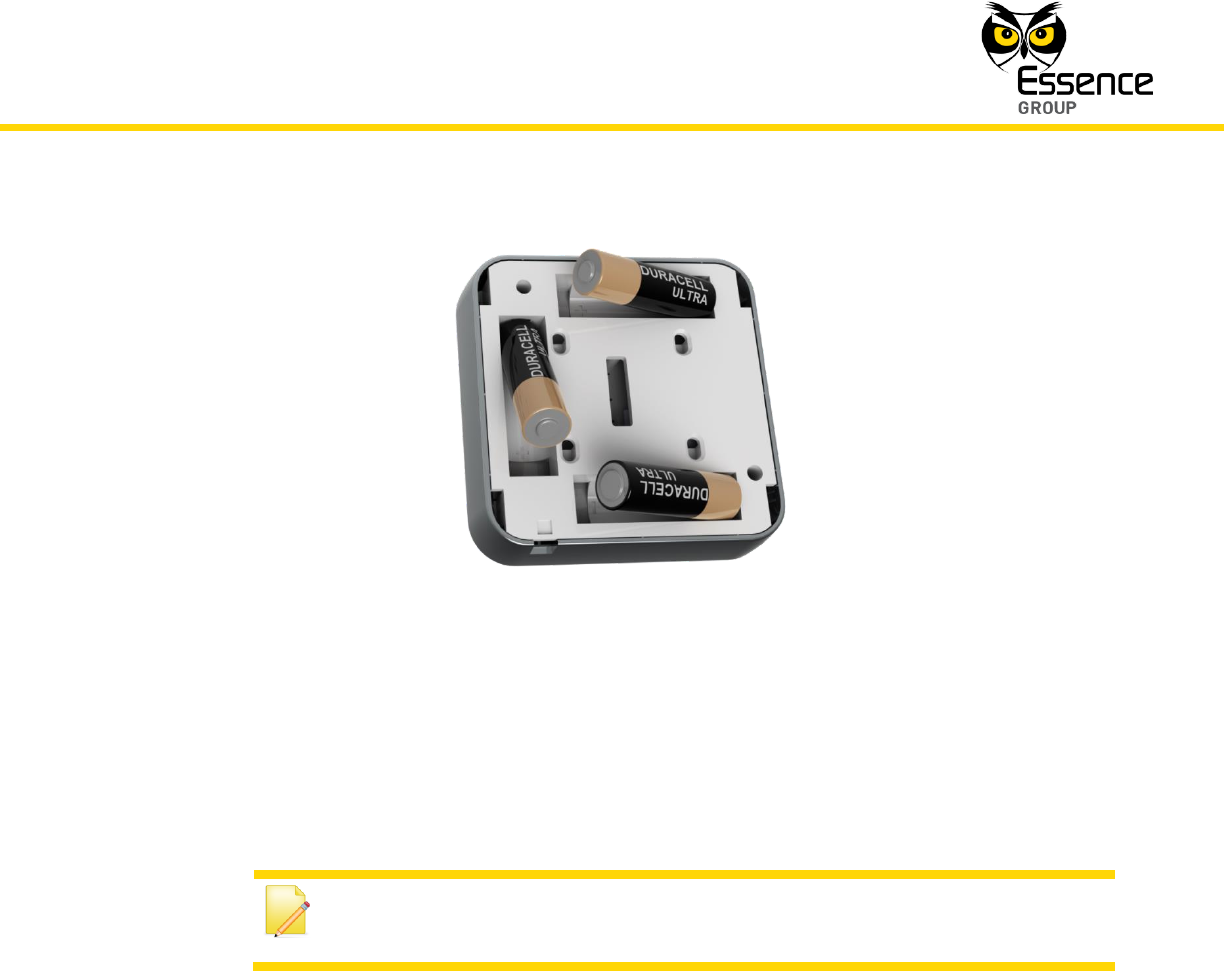

Figure 208: Inserting Batteries into the Tag Reader
2. Return the Tag Reader back onto its mounting base.
The insertion of batteries into the Tag Reader triggers a bonding process in which the Tag
Reader communicates with the CCU to re-instate it into the CCU peripherals’ inventory.
Note: There is no need to perform “Add Device” process following batteries
replacement since the Tag Reader is already defined in the We.R
system.
5.1.8. Replacing the Flood Detector (FL) Battery
For its operation, the Flood Detector needs single 1.5V AA-size Alkaline battery.
There is a need to dismount the Flood Detector (Transmitter unit only) to allow replacement of
the battery. To dismount the Flood Detector:
1. Insert a flat screw driver (or coin) into one of the edge slots as demonstrated in Figure 209
below.
2. Twist it to raise the cover (body) edge.
3. Pull the body strait out of the base’s shoulders.
