User Guide Part 8

Maintenance of the We.R™ System
We.R
™
System User Guide
239
1. Insert a flat screw driver (or coin) into one of the edge slots as demonstrated in Figure 200
below.
2. Twist it to raise the cover (body) edge.
3. Pull the body strait out of the base’s shoulders.

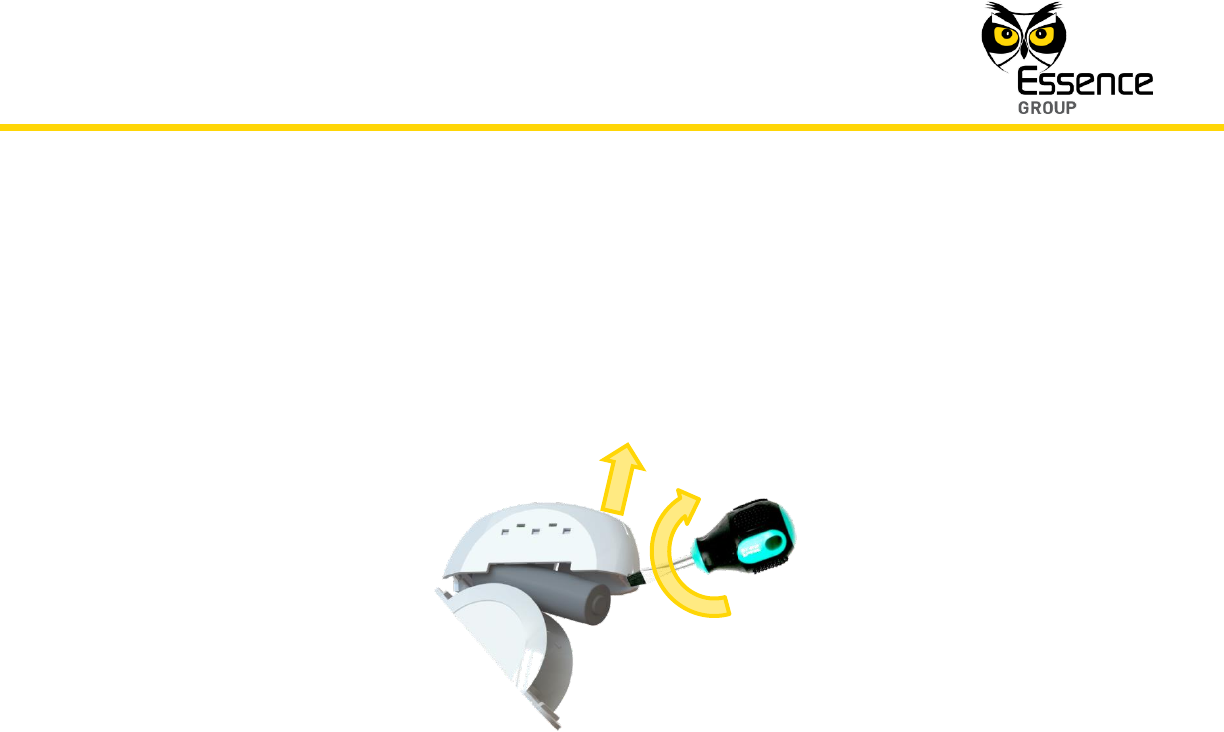

Figure 200: Dismounting the Magnetic Sensor’s Transmitter
5.1.4.2. Removing the Old Battery
Once opened, the Magnetic Sensor’s battery is free to be removed out of the case.
Apply slight pressure on the battery towards the negative (–) pole to ease the release of the
battery.
5.1.4.3. Installing a New Battery
1. The battery should be installed, as demonstrated in Figure 201 below (the positive () pole
as marked within the device body).
2. Verify battery polarity match to marking within the unit body.
3. Return the cover onto the base and click it in.
