User Guide Part 8

Maintenance of the We.R™ System
238
We.R
System User Guide

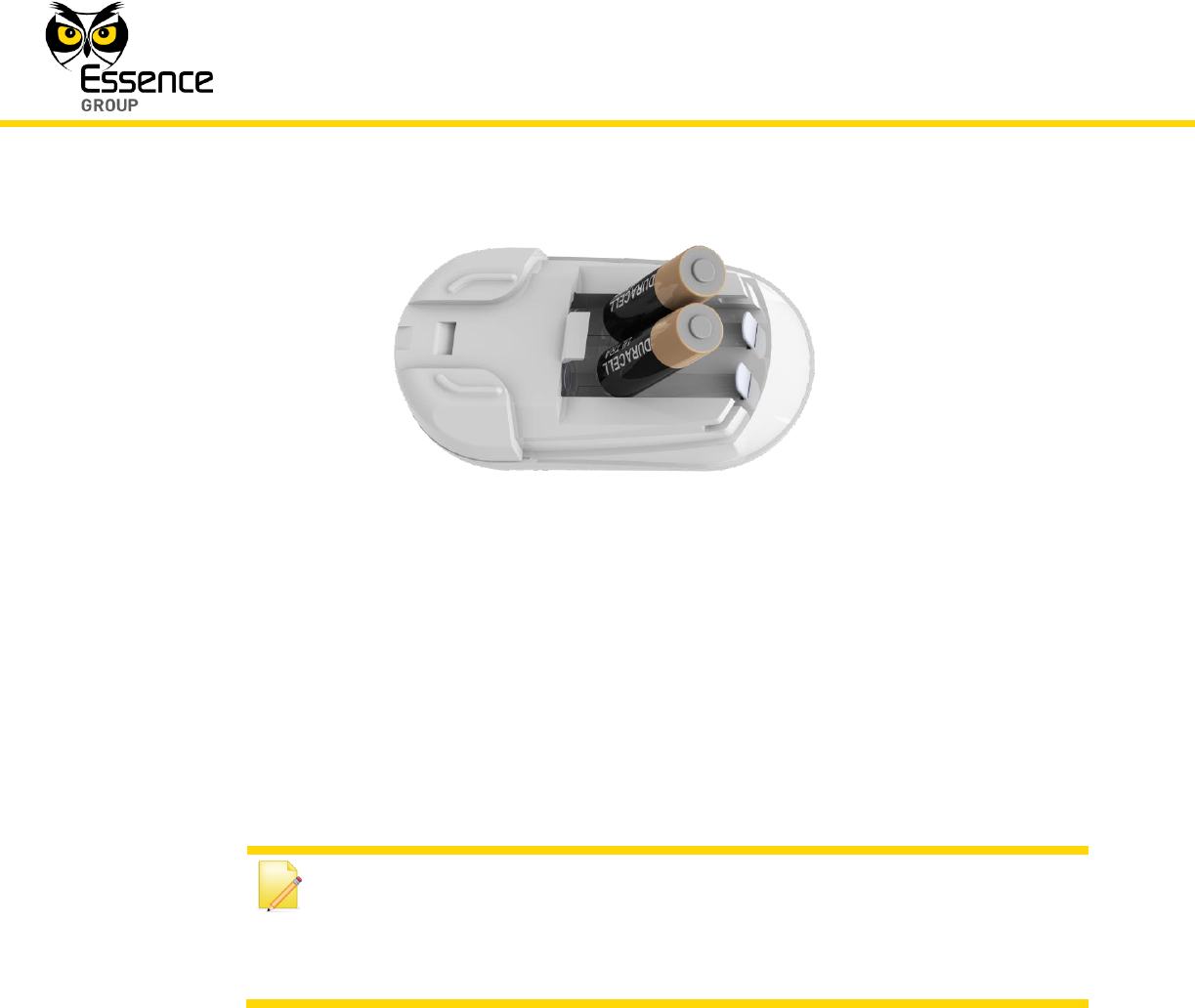

Figure 199: Inserting Batteries into the Motion Detector
2. Return the Motion Detector back onto its mounting base.
The insertion of batteries into the Motion Detector triggers a bonding process in which the
Motion Detector communicates with the CCU to re-instate it into the CCU peripherals’
inventory.
Note: There is no need to perform “Add Device” process following batteries
replacement since the Motion Detector is already defined in the We.R
system. But, replacing the batteries will trigger the Walk Test Mode (see
paragraph 3.7.4.1 above) to ensure proper battery replacement.
5.1.4. Replacing the Magnetic Sensor (MGL) Battery
For its operation, the MGL needs single 1.5V AA-size Alkaline battery.
5.1.4.1. Removing the Old Batteries
There is a need to dismount the Magnetic Sensor (Transmitter unit only) to allow replacement
of the battery. To dismount the Magnetic Sensor:
