User Guide Part 8

Maintenance of the We.R™ System
We.R
™
System User Guide
235
To replace the old batteries of the Camera, first, there is a need to dismount it from its install
site (the wall).
1. To dismount the Camera, press the wall mounting base's tab at the bottom of the Camera
and slide it downwards simultaneously as demonstrated in Figure 195 above.
2. Release the batteries (inner) cover by pressing against the inner batteries’ cover tab and
Lift/twist of the cover up as demonstrated in Figure 196 below:

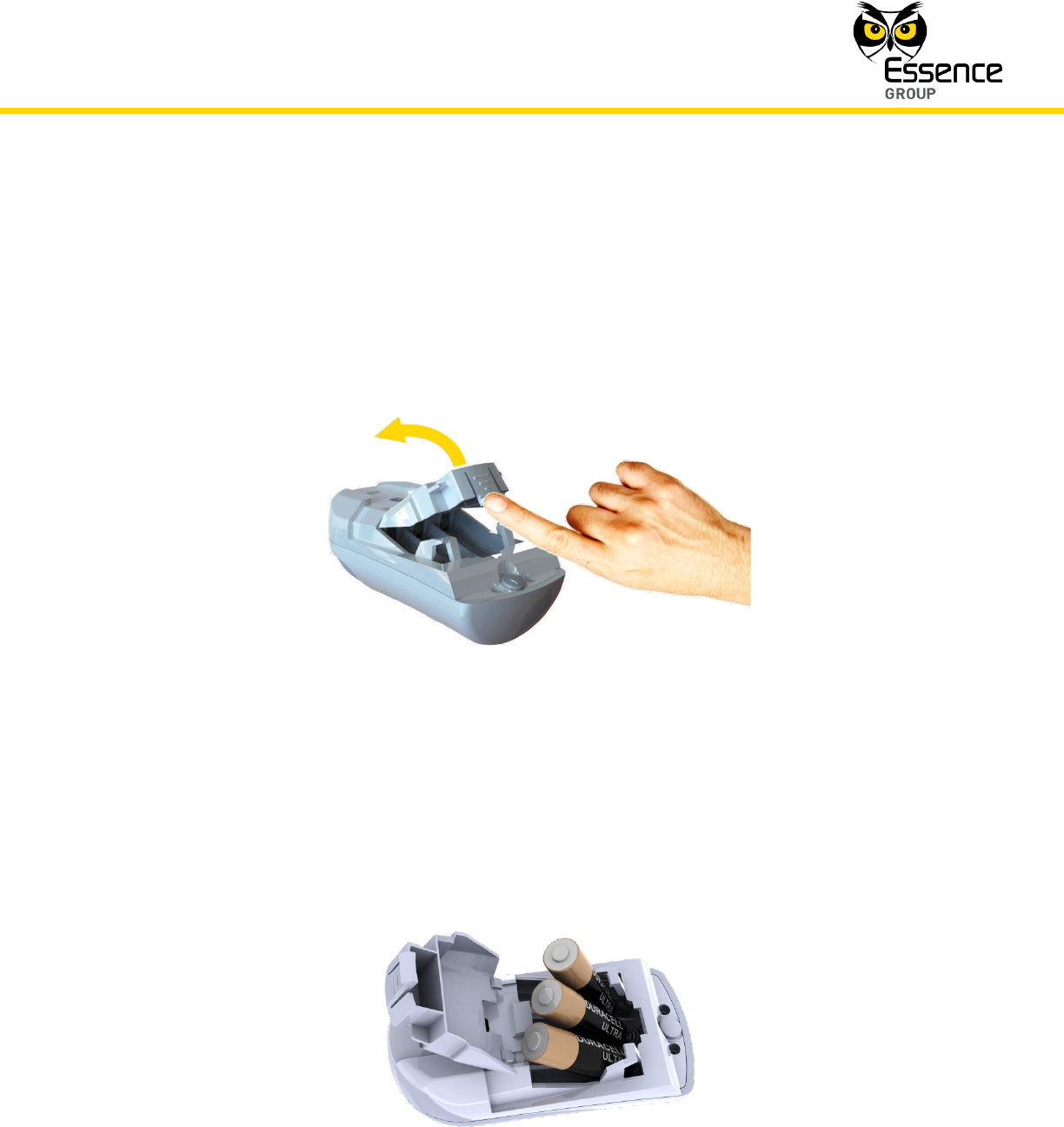

Figure 196: Releasing the Camera Inner Batteries’ Cover
3. Remove the batteries by pressing them slightly towards the negative (–) pole (towards the
top end of the Camera) and extracting them out, one at a time.
5.1.2.2. Installing New Batteries
1. Install the new batteries as demonstrated in Figure 197 below (the positive () poles aiming
towards the lens):
Figure 197: Inserting Batteries into the Camera
