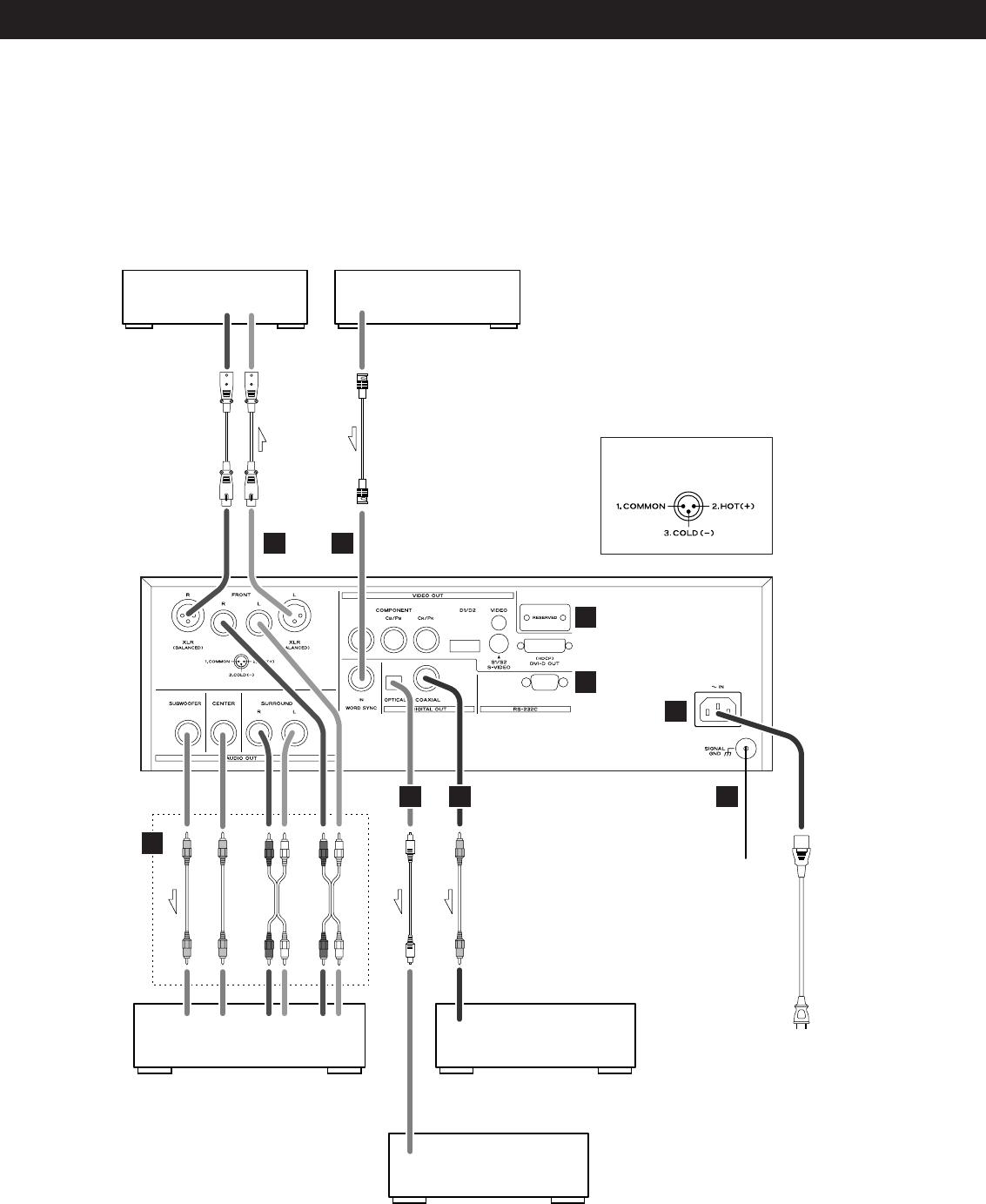

Connections to an amplifier, etc.
I
J
L
K
AUDIO IN WORD SYNC OUT
RL
5.1CH AUDIO IN
DIGITAL IN (COAXIAL)
DIGITAL IN (OPTICAL)
LRLR
FRONTSURROUNDSUBWOOFER CENTER
GG
F
F H
CAUTION:
< Switch off the power to all equipment before making connections.
<
Read the instructions of each component you intend to use with this unit.
<
Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the
signal interconnection cables together with the AC power cord or speaker cables.
RCA cable
RCA coaxial cable
optical digital cable
BNC coaxial cable
XLR cable
Balanced XLR
pin assignment
Stereo amplifier Master clock generator (G-0s, etc.)
Decoder-equipped amplifier
Surround amplifier
Digital audio device
(CD recorder, MD deck, etc.)
Supplied power cord
Wall socket
