Connection to the D-01 (XLR)
AUDIO IN
(FRONT L)
Amplifier
AUDIO IN
(FRONT R)
Amplifier
D-01 (FRONT L)
D-01 (FRONT R)
G-0/G-0s
P-01

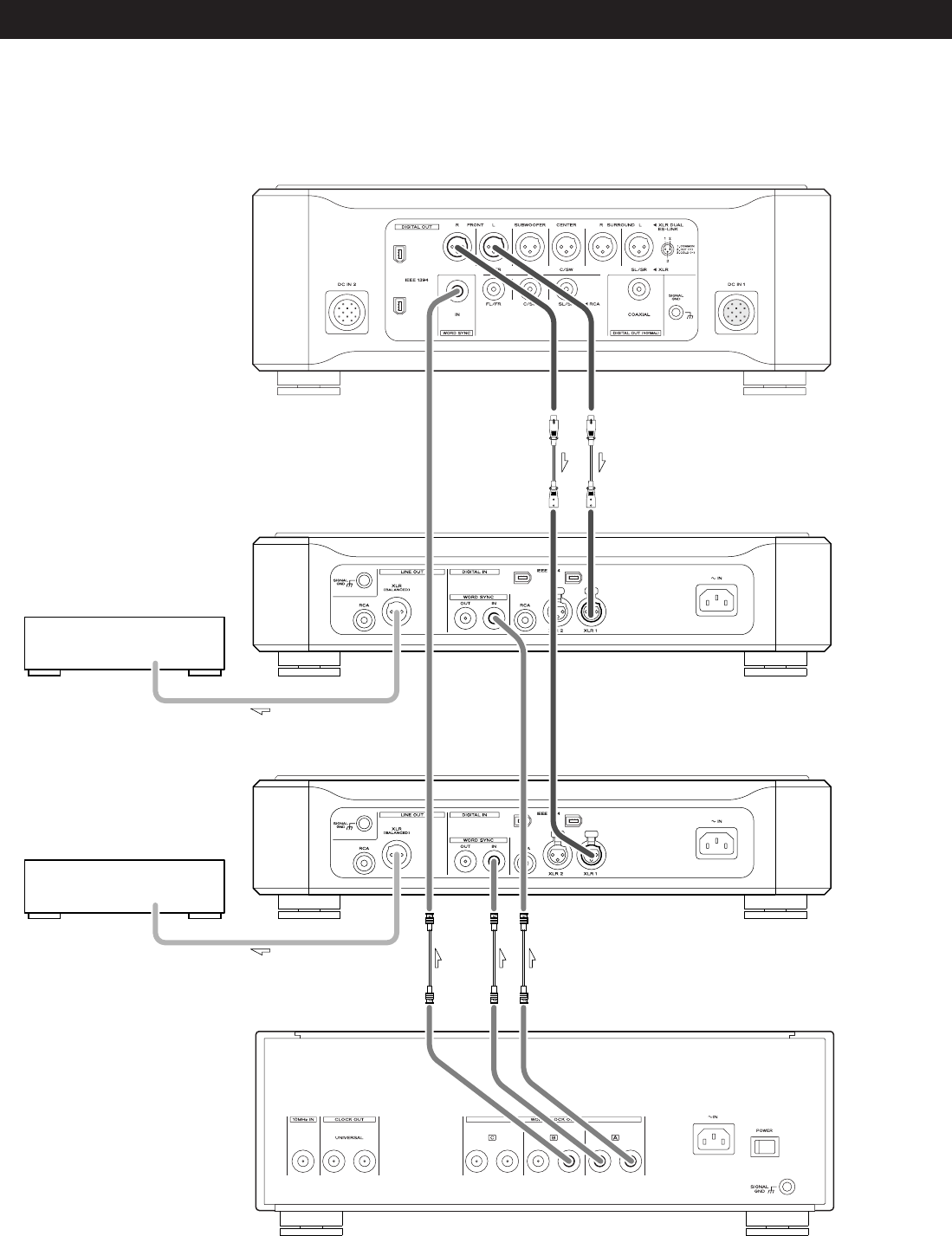

Connection to the G-0/G-0s and two D-01 converters
XLR digital cable
BNC coaxial cable
XLR cable
XLR cable
When connecting the clock
generator G-0 or G-0s, connect
the WORD CLOCK OUT of the
G-0/G-0s to the WORD SYNC IN
of the P-01 and D-01.
