OM6100
INTE R NATIONAL PIC T OR IAL S
IMPOR TANT: The following pictorials may be
located on your unit or on literature s upplied
with the produc t. B efore you operate the
unit, learn and unders tand the purpos e for
eac h pictorial.
18
E ngine Off
E ngine S top On C hoke Off C hoke On
Neutral
N
S low Fas t E lectric S tart E ngine S tart E ngine R un
Throttle P rimer B utton Ignition K ey Ignition Off Ignition On
Drive C lutc h
Forward
Auger C lutch Auger C ollec tor
R evers e
E ngage
Ignition K ey
Ins ert To
R un, Pull Out To S top
Fuel Oil Fuel Oil Mixture
Dis charge DOWN Dis charge UP
Dis charge LE FT Dis charge R IG HT
KGS
KGS
Weight Trans fer
L ift Handle To E ngage
Weight Trans fer
Depres s P edal T o
Dis engage
Trans mis s ion
P us h To E ngage
E lectric S tarter

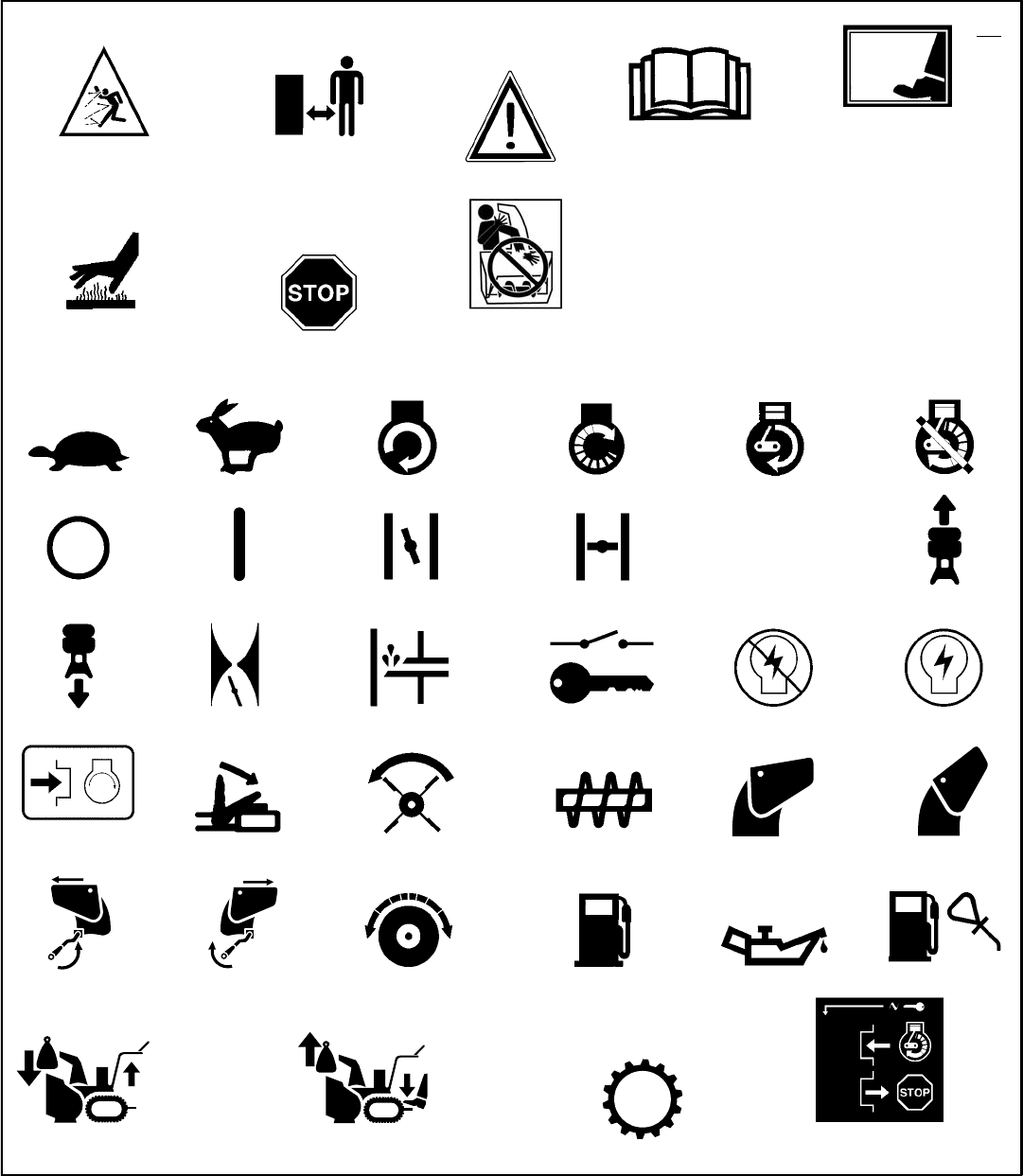

Control And Operating Symbols
Safety Warning Symbols
DANG E R
Thrown Objec ts .
K eep B ys tanders Away.
DANG E R
Thrown Objec ts .
K eep B ys tanders Away.
WAR NING
IMPOR TANT
R ead Owner's Manual
B efore Operating
This Machine.
DANG E R
Avoid Injury F rom
R otating Auger. K eep
Hands , Feet And
C lothing Away.
DANG E R
S top The E ngine B efore
Unc logging Dis charge
C hute!
S TOP
WAR NING
Hot S urface
